Section 119 (Back Monitor System - Diagnosis): Pre-Check

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TELEVISION CAMERA ASSY
    1. Standard signal check.
      1. Using the tester, measure the voltage and check the continuity between terminals.
        NOTE: Leave the connector being connected.
      2. Using the oscilloscope, check waveforms between terminals.
      NOTE:
      • Leave the connector being connected.
      • The waveform shown is merely an example.

        Noise waveform and chattering waveform are omitted.

        Fig 1: Identifying Television Camera Assy Connector
        G02934164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Connector T10

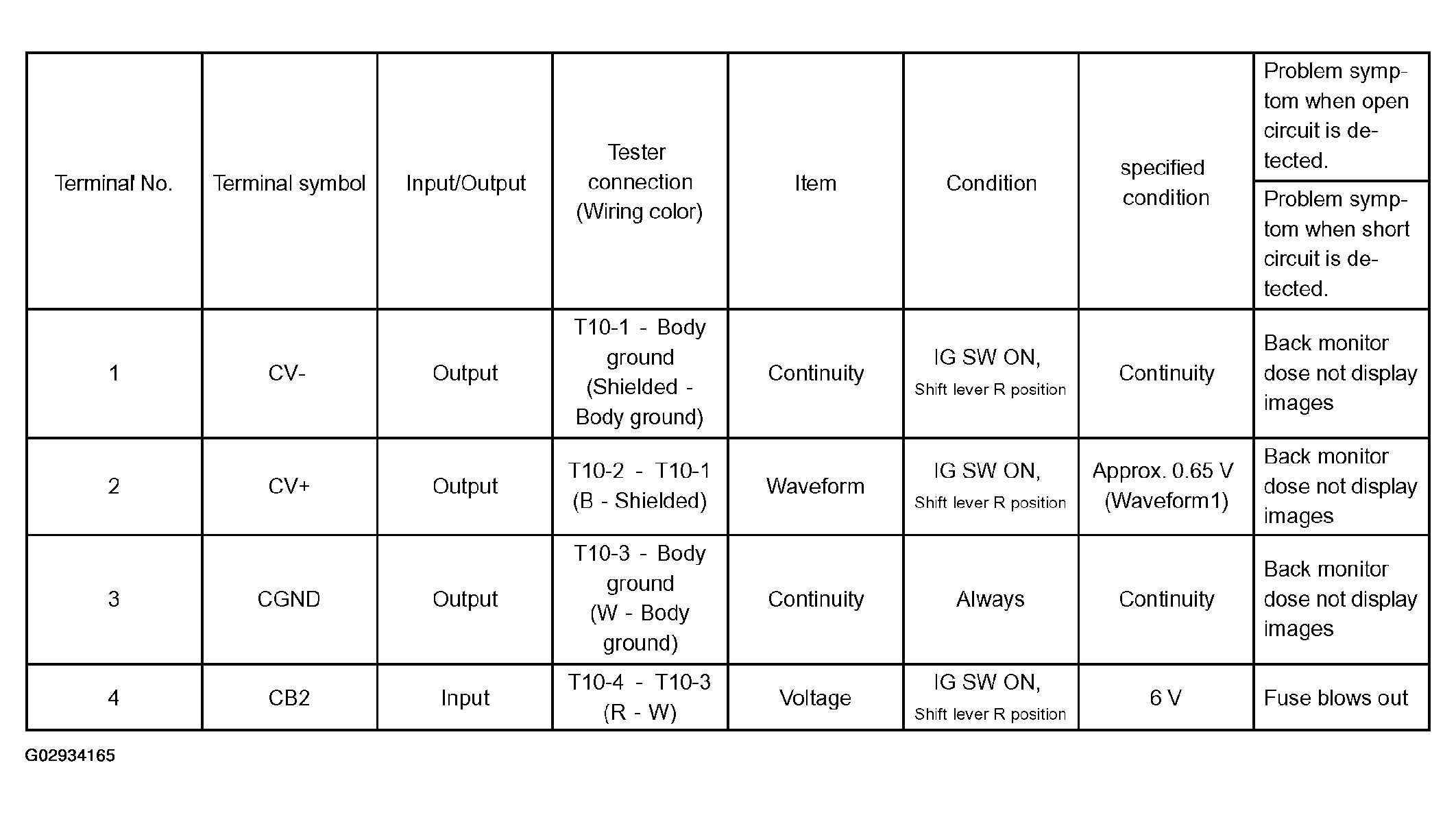

      Fig 2: Connector T10 Terminals Reference Chart
      G02934165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      < Reference >

    2. Oscilloscope waveform.
      1. Waveform 1.

        Standard:

        ITEM CONTEXT

        Item Content
        Terminal CV+ - CV
        Tool setting 0.2 V/DIV, 0.2 mus/DIV
        Condition IG SW ON, shift lever R position

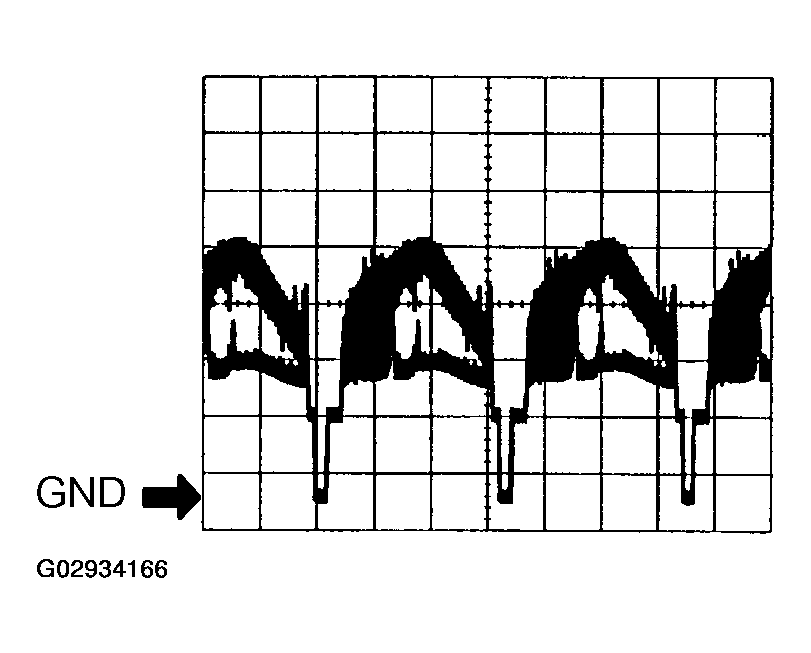

        Fig 3: Identifying Oscilloscope Waveform
        G02934166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT RADIO RECEIVER ASSY (BACK MONITOR CONTROLLER)
    1. Standard signal check.
      1. Using the tester, measure the voltage and check the continuity between terminals.
        NOTE: Leave the connectors being connected.
      2. Check waveforms between terminals.
        NOTE:
        • Leave the connectors being connected.
        • The waveform shown is merely an example. Noise waveform and chattering waveform are omitted.

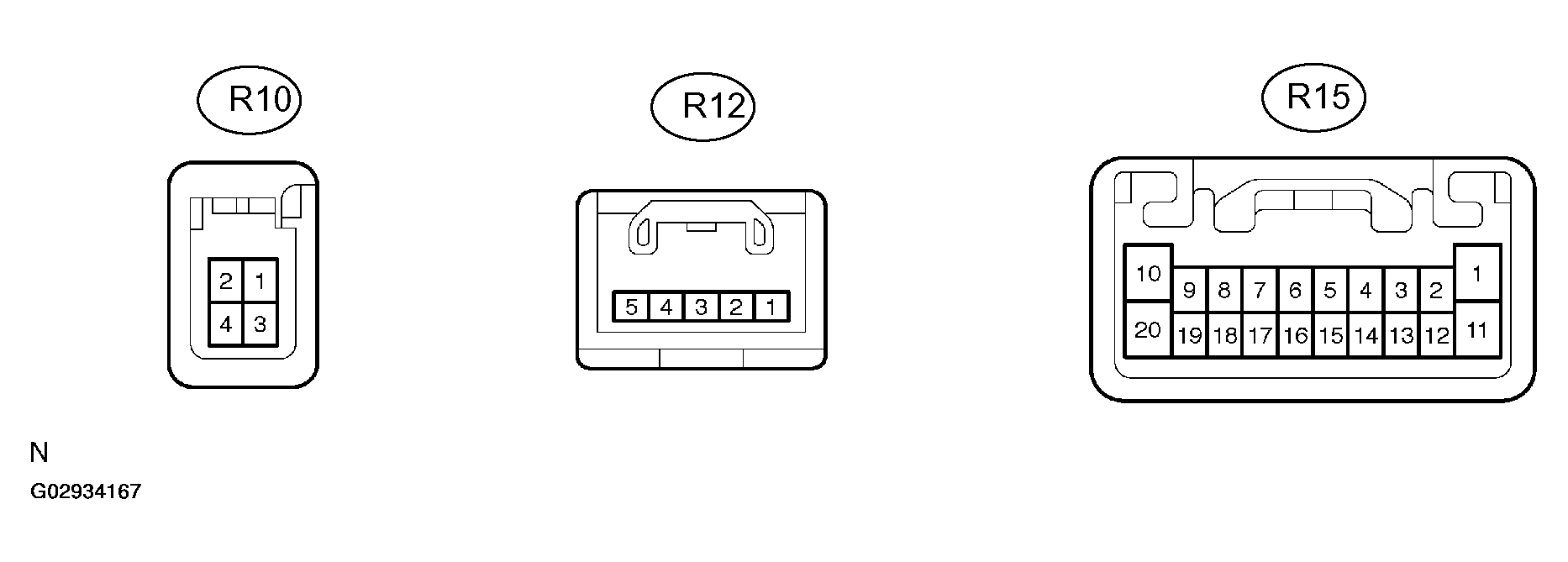

          Fig 4: Identifying Radio Receiver Assy Connectors
          G02934167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard:

        Connectors:

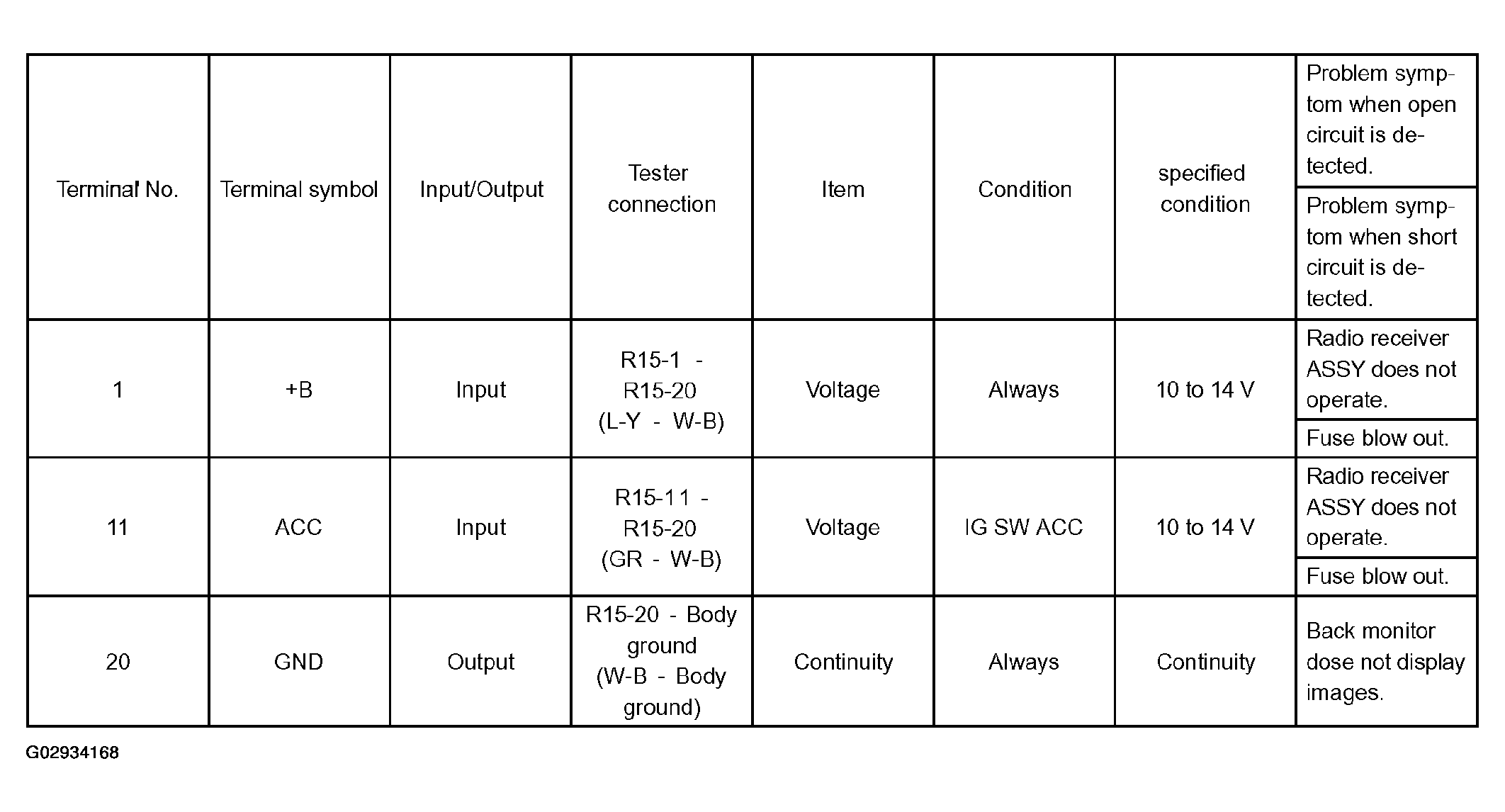

        Fig 5: Connector R15 Terminals Reference Chart
        G02934168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

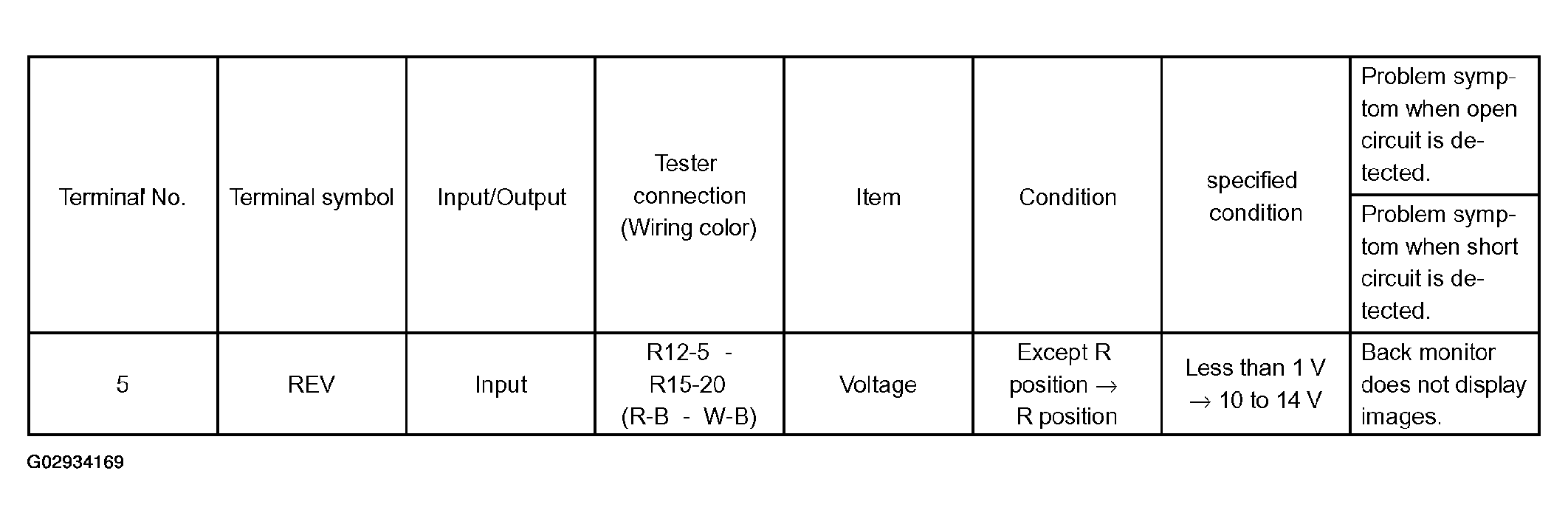

        Fig 6: Connector R12 Terminals Reference Chart
        G02934169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

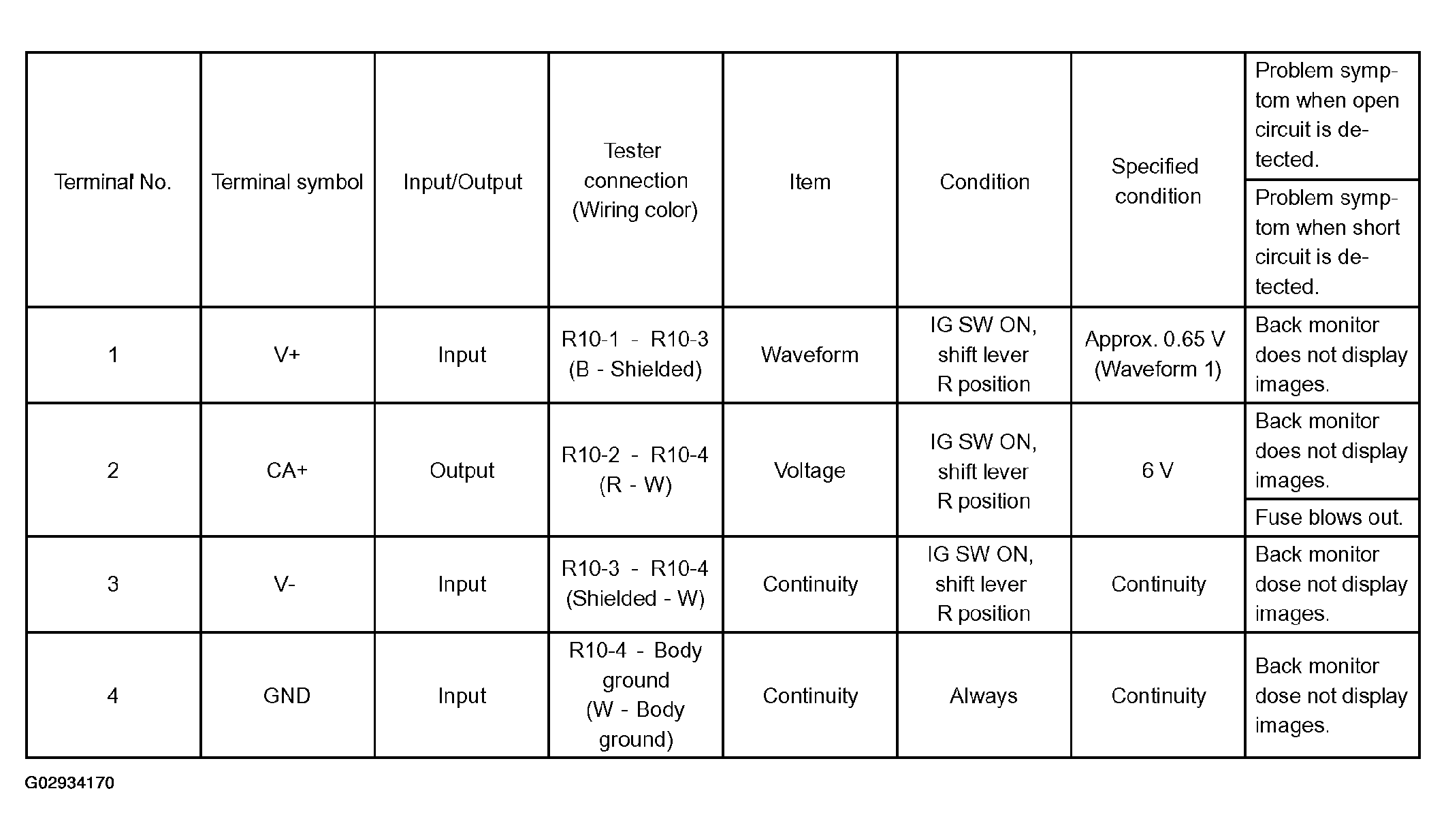

        Fig 7: Connector R10 Terminals Reference Chart
        G02934170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      < Reference >

    2. Oscilloscope waveform.
      1. Waveform 1.

        Standard:

        ITEM CONTEXT

        Item Content
        Terminal V+ - V
        Tool setting 0.2 V / DIV, 0.2 ?S / DIV
        Condition IG SW ON, shift lever R position
        Fig 8: Identifying Oscilloscope Waveform
        G02934171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT BACK MONITOR CAMERA WIRE
    1. Continuity check.
      1. Using the tester, check the continuity between terminals.

        Standard:

        TERMINALS CONTINUITY

        Tester Connection Specified Condition
        A-1 (Radio receiver ASSY side) - B-2 (Television camera ASSY side) Continuity
        A-2 (Radio receiver ASSY side) - B-4 (Television camera ASSY side) Continuity
        A-3 (Radio receiver ASSY side) - B-1 (Television camera ASSY side) Continuity
        A-4 (Radio receiver ASSY side) - B-3 (Television camera ASSY side) Continuity

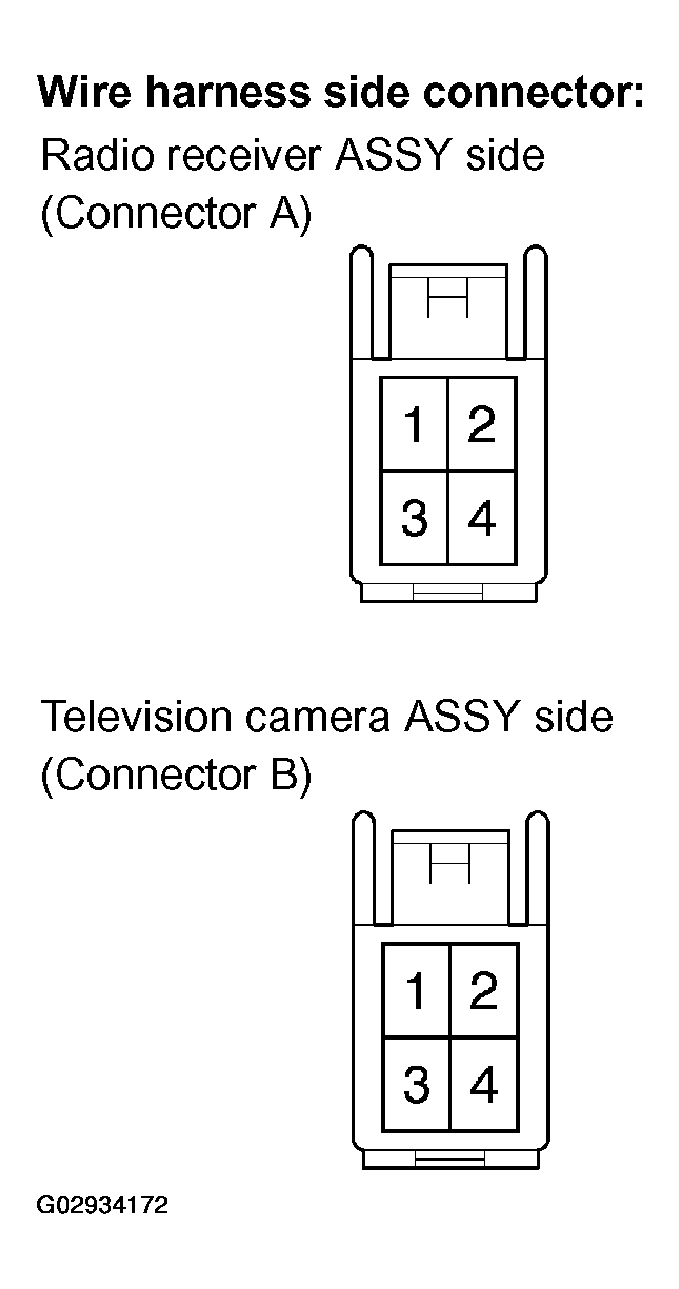

        Fig 9: Identifying Radio Receiver Assy Side & Television Camera Assy Side Connectors Terminals
        G02934172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
