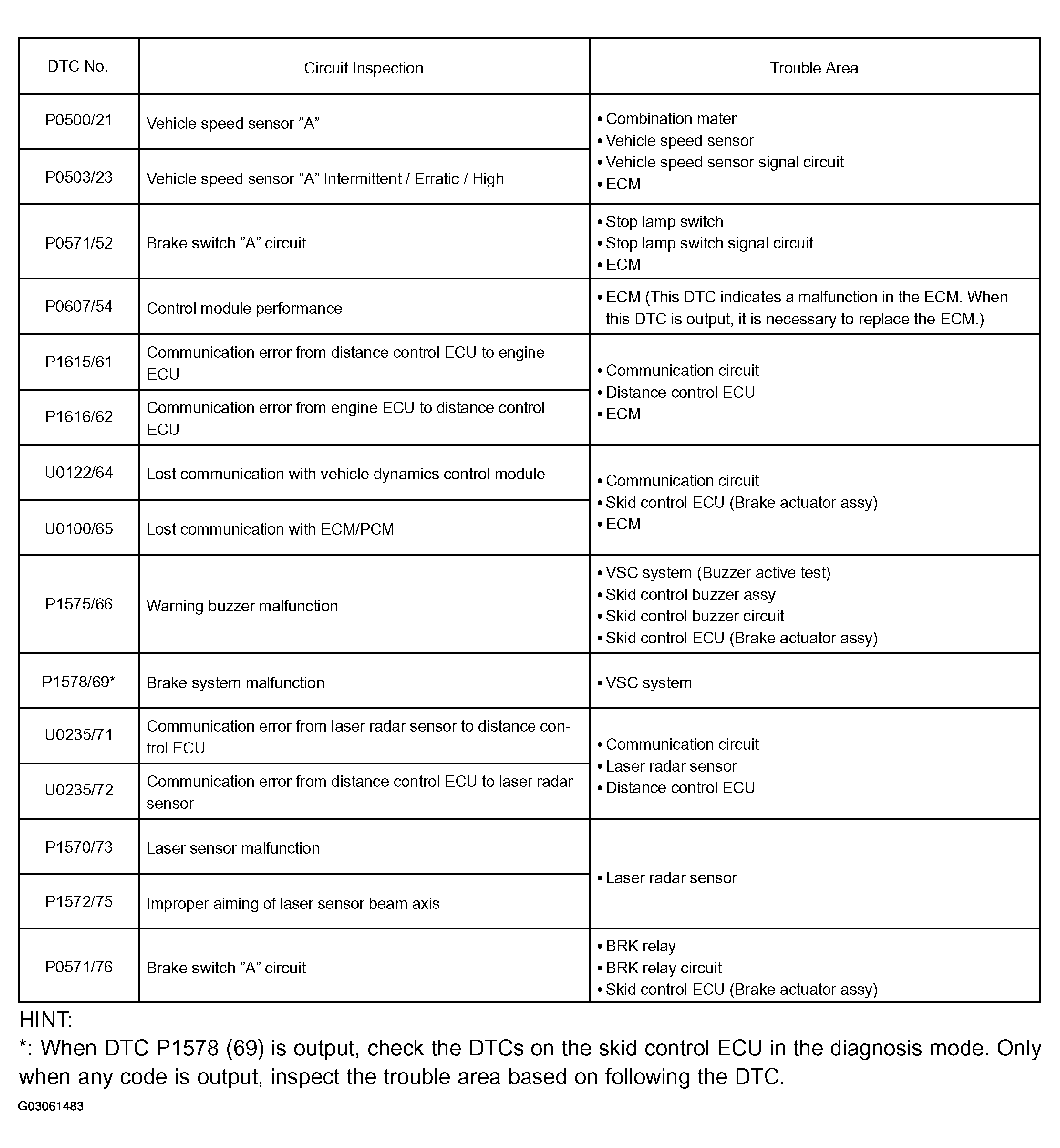

Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- Using SST 09843-18040, connect terminal TC and CG of DLC3.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, see "DTC No." in the DTC chart.
