Section 186 (Steering Column): Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

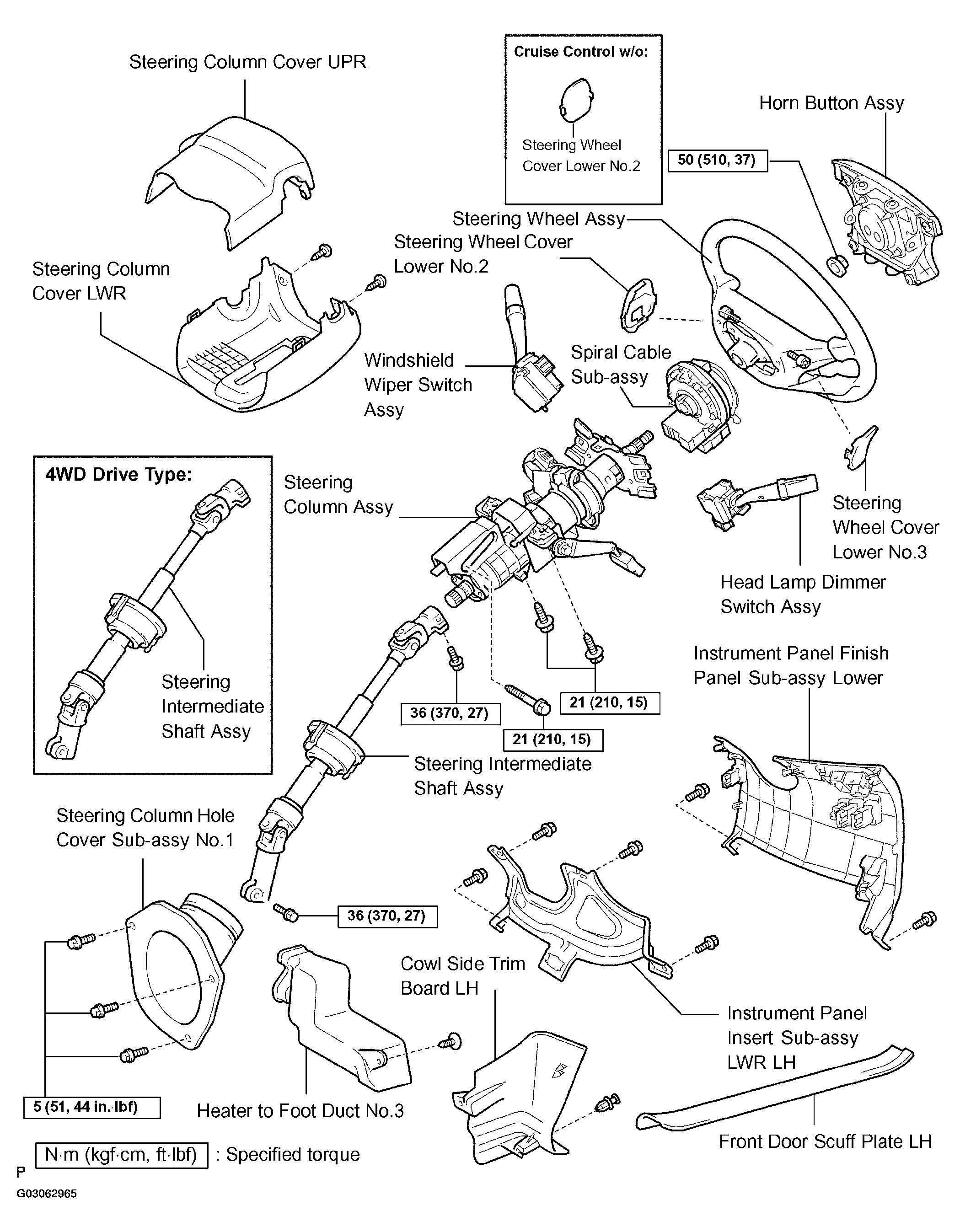

Fig 1: Exploded View Of Steering Column Assembly (1 Of 2)
G03062965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

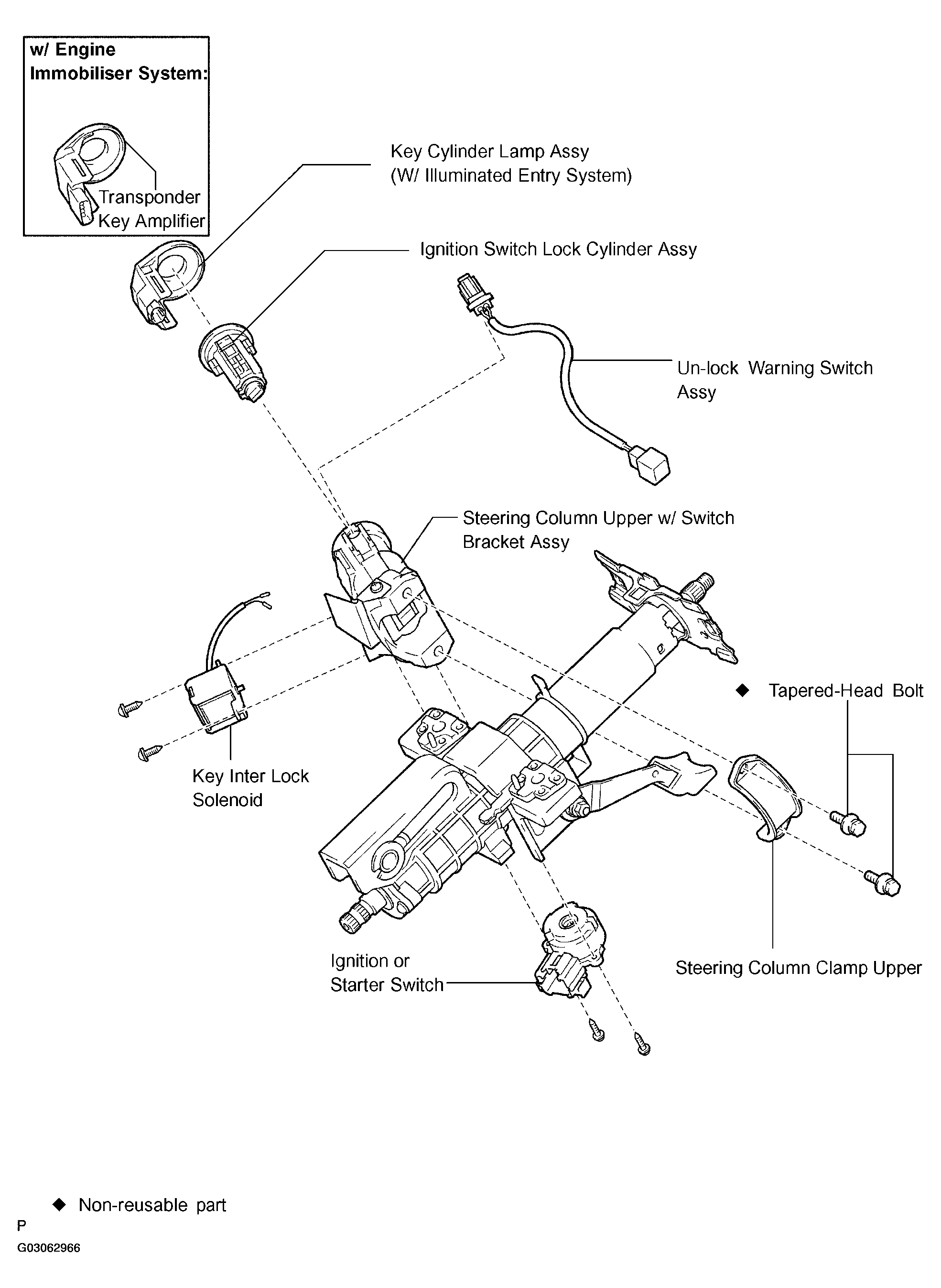

Fig 2: Exploded View Of Steering Column Assembly (2 Of 2)
G03062966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
