Section 197 (Stereo Component Amplifier): Replacement
WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
COMPONENTS: See COMPONENTS
- REMOVE GLOVE COMPARTMENT DOOR ASSY (See INSTRUMENT PANEL/METER )
- REMOVE STEREO COMPONENT AMPLIFIER ASSY
- Disconnect the connectors.

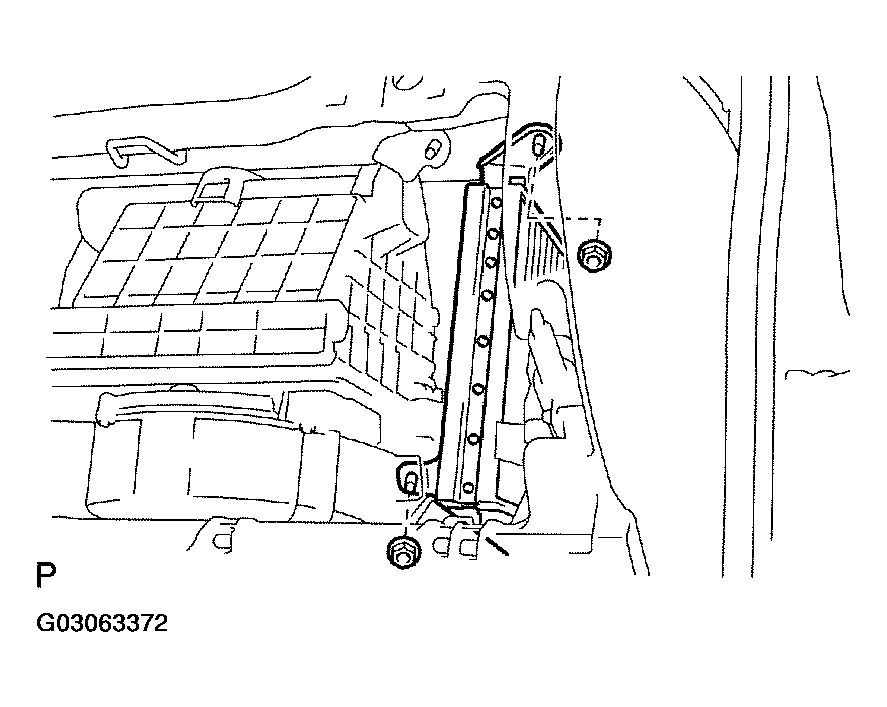

- Remove the 2 nuts and the stereo component amplifier assy.
