Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Start the inspection from step  1 in the case of using the hand-held tester, and start from step  2 in the case of not using the hand-held tester.

  1. READ VALUE OF HAND-HELD TESTER
    1. Connect the hand-held tester to DLC3.
    2. Turn the ignition switch to ON and push the hand-held tester main switch ON.
    3. Select the items below in the DATA LIST, and read the displays on the hand-held tester.

    BODY NO. 1:

    DIAGNOSIS PROCEDURE (BODY NO. 1)

    Item Measurement Item/Display (Range) Normal Condition Diagnostic Note
    D DOR CTY SW Driver's door courtesy SW signal/ON or OFF ON: Driver's door is open
    OFF: Driver's door is closed    		 -
    P DOR CYT SW Passenger's door courtesy SW signal/ON or OFF ON: Front passenger's door is open
    OFF: Front passenger's door is closed    		 -
    Rr DOR CTY SW Rear slide door courtesy SW signal/ON or OFF ON: Either right or left rear slide door is open
    OFF: Both the right and left slide doors are closed    		 -

    BACK DOOR:

    DIAGNOSIS PROCEDURE (BACK DOOR)

    Item Measurement Item/Display (Range) Normal Condition Diagnostic Note
    COURTESY SW Back door courtesy SW signal/ ON or OFF ON: Back door is open
    OFF: Back door is closed    		 -
    1. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
    2. NG: GO TO NEXT STEP
  2. INSPECT COURTESY LAMP SWITCH
    1. Inspect each of the courtesy lamp switch continuity (See INSPECTION ).
    1. NG: REPLACE COURTESY LAMP SWITCH
    2. OK: GO TO NEXT STEP
  3. INSPECT BACK DOOR LOCK ASSY
    1. Inspect the courtesy lamp switch terminal of the back door lock assy (See INSPECTION ).
    1. NG: REPLACE BACK DOOR LOCK ASSY
    2. OK: GO TO NEXT STEP
  4. CHECK HARNESS AND CONNECTOR
    1. Disconnect the 1P, B7 and B9 connector from the instrument panel junction block assy.
    2. Check the continuity between each of the terminals of instrument panel junction block assy connector side and body ground as shown in Fig 1 .

      Standard:

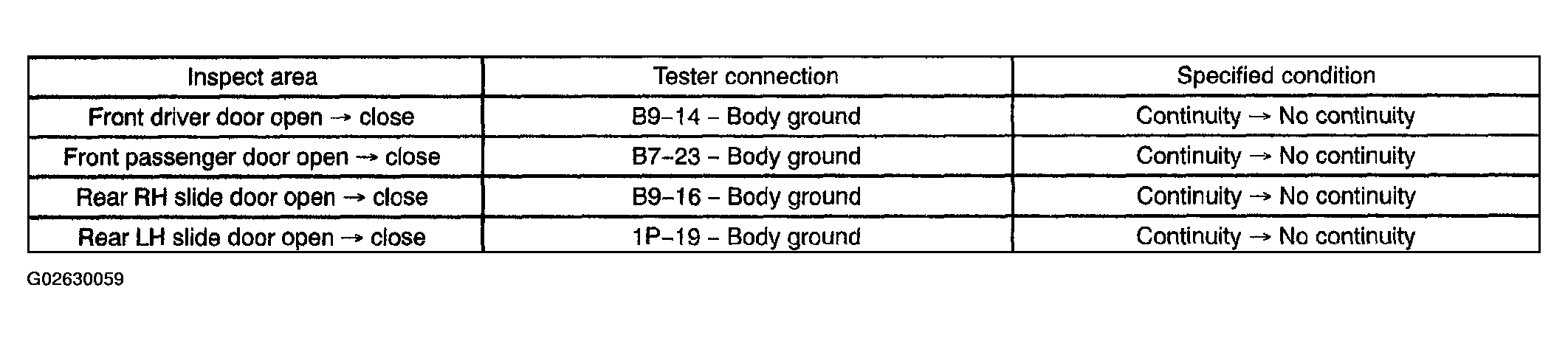

      Fig 1: Instrument Panel Junction Block Assy Connector Side And Body Ground Table
      G02630059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

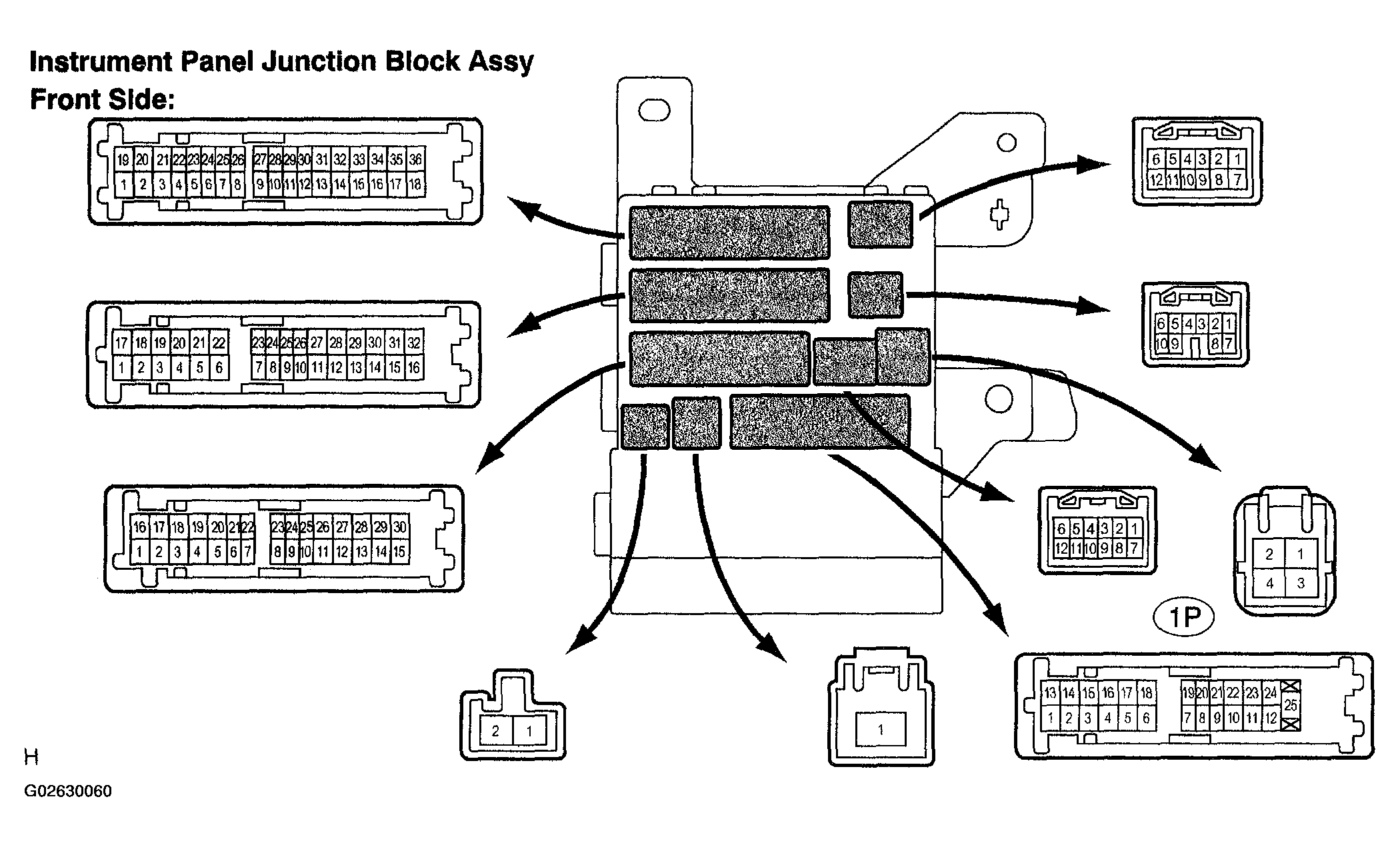

    Fig 2: Identifying Instrument Panel Junction Block Assy (Front Side)
    G02630060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

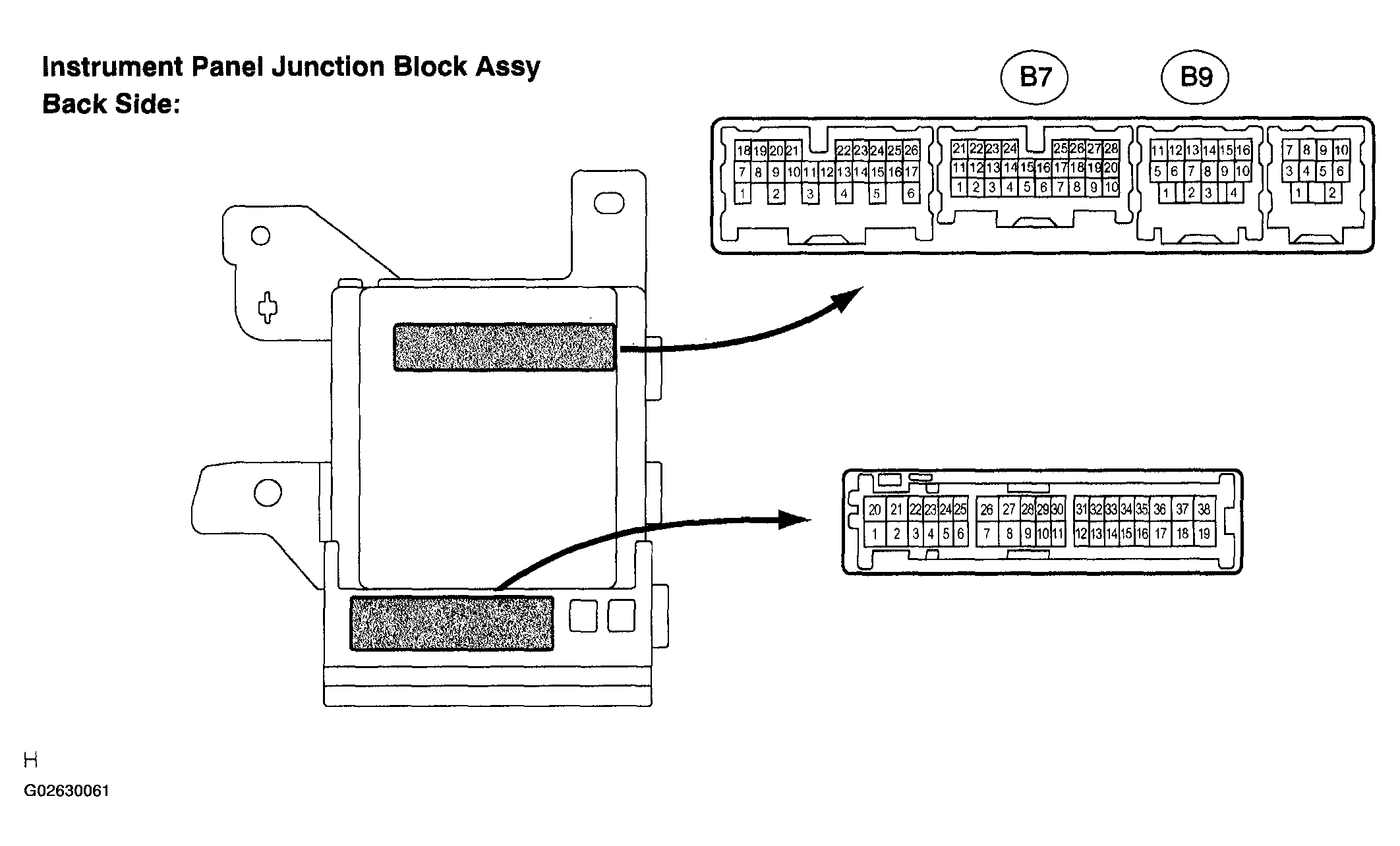

    Fig 3: Identifying Instrument Panel Junction Block Assy (Back Side)
    G02630061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP
  5. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY (BACK DOOR COURTESY LAMP SWITCH CIRCUIT)
    1. Measure voltage between the terminal B7-25 of the multiplex network body ECU and body ground.

      Standard:

      MULTIPLEX NETWORK BODY ECU AND BODY GROUND

      Tester connection Condition Specified condition
      B7-25 - Body ground Back door is open Below 1 V
      B7-25 - Body ground Back door is closed 10 to 14 V

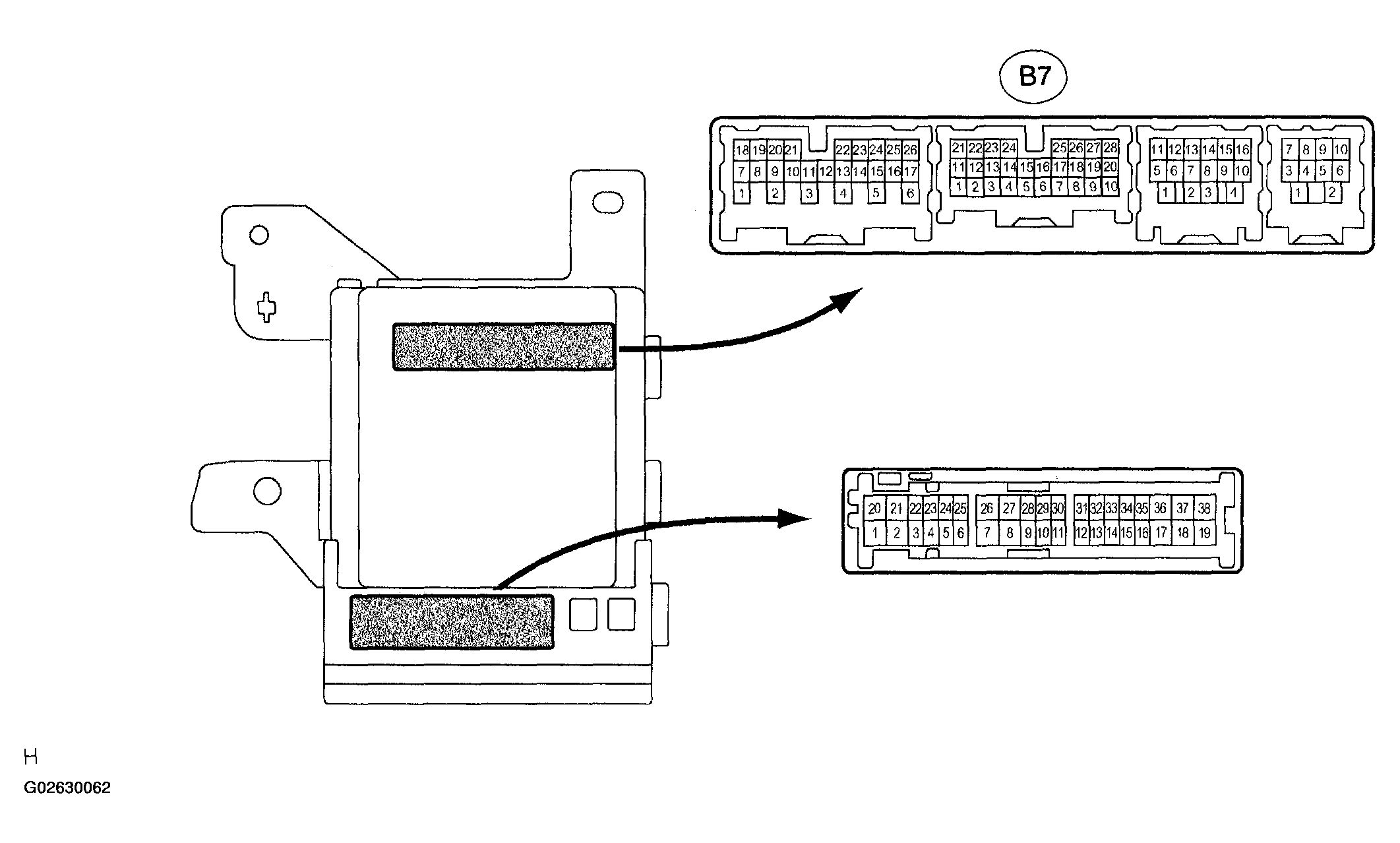

    Fig 4: Identifying Instrument Panel Junction Block Assy (Back Door Courtesy Lamp Switch Circuit)
    G02630062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
    2. NG: GO TO NEXT STEP
  6. CONFIRM VEHICLE MODELS
    1. Check the vehicle models.

      A: w/o Power back door

      B: w/ Power back door

    1. A: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. B: GO TO NEXT STEP
  7. INSPECT POWER BACK DOOR SYSTEM
    1. Inspect the power back door circuit (See POWER BACK DOOR SYSTEM ).
    1. NG: CHECK AND REPLACE POWER BACK DOOR SYSTEM
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
