Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
Start the inspection from step 1 in the case of using the hand-held tester, and start from step 2 in the case of not using the hand-held tester.
- PERFORM ACTIVE TEST USING HAND-HELD TESTER
- Connect the hand-held tester to DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the item below in the ACTIVE TEST and then check that the relay operates.
BODY NO.1:
DIAGNOSIS PROCEDURE (BODY NO. 1)Item Test Details Diagnostic Note TAIL LIGHT Turn Tail light relay ON/OFF - - OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- NG: GO TO NEXT STEP
- INSPECT TAIL LAMP RELAY
- Inspect tail lamp relay continuity.
Standard:
TAIL LAMPCondition Tester connection Specified condition Always 1 - 2
3 - 4Continuity Always 3 - 5 No continuity Apply B+ between the terminal 1 and 2 3 - 5 Continuity
- NG: REPLACE TAIL LAMP RELAY
- OK: GO TO NEXT STEP
- Inspect tail lamp relay continuity.
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY

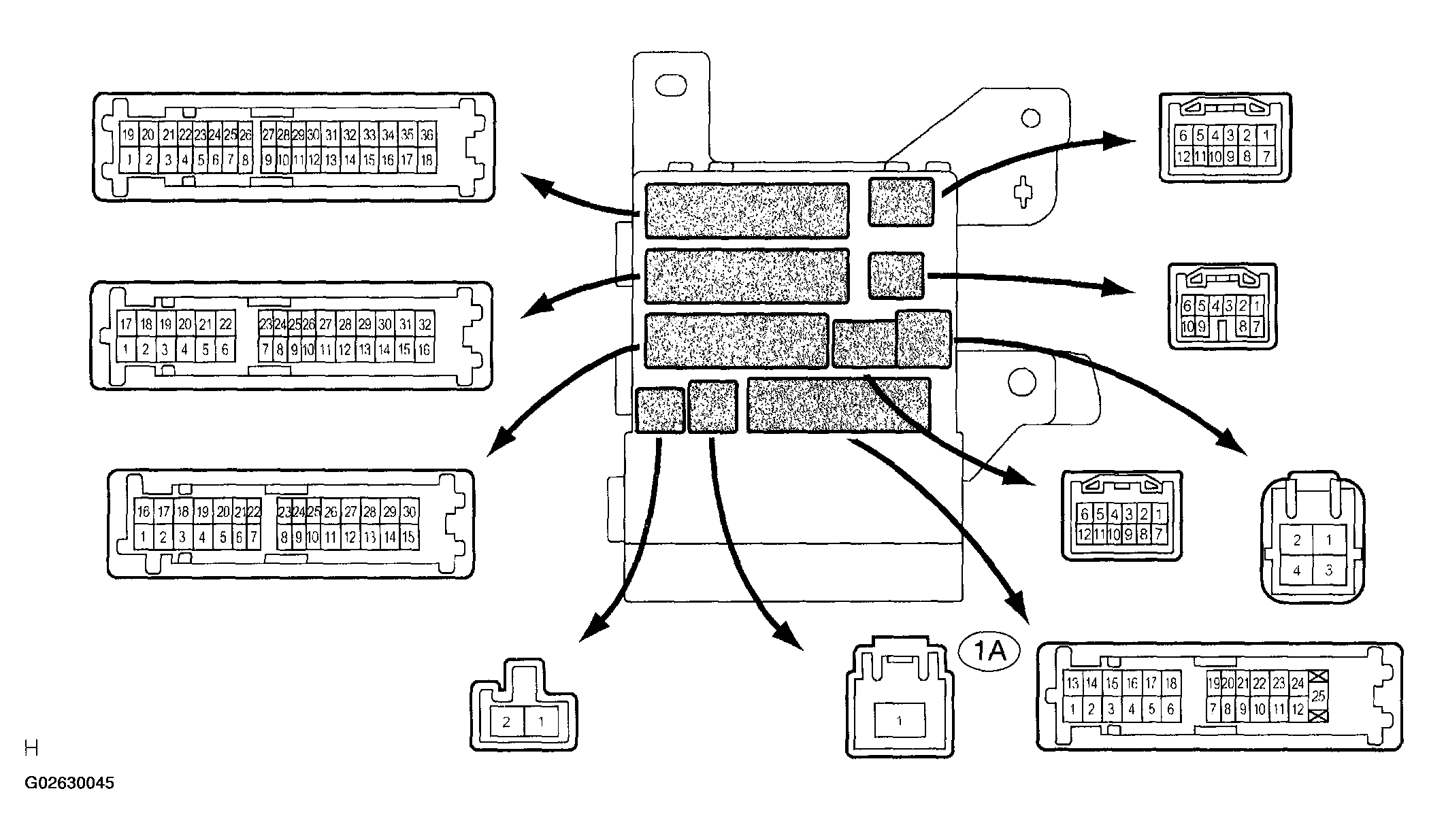

- Measure voltage between the terminal 1A-1 and body ground.
Standard:
TERMINAL 1A-1 AND BODY GROUNDTester connection Specified voltage 1A-1 - Body ground 10 to 14 V
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: GO TO NEXT STEP
- Measure voltage between the terminal 1A-1 and body ground.
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY

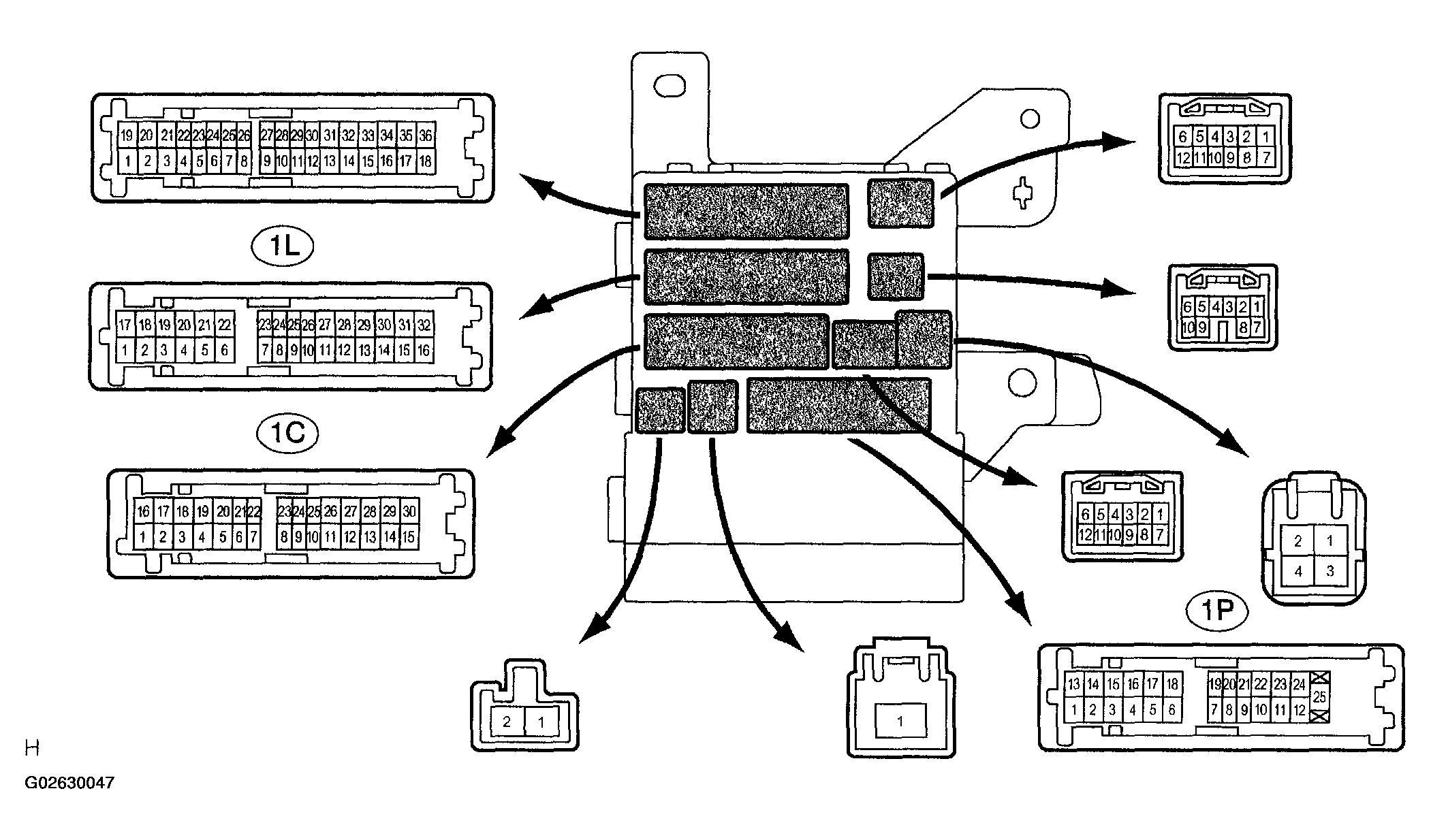

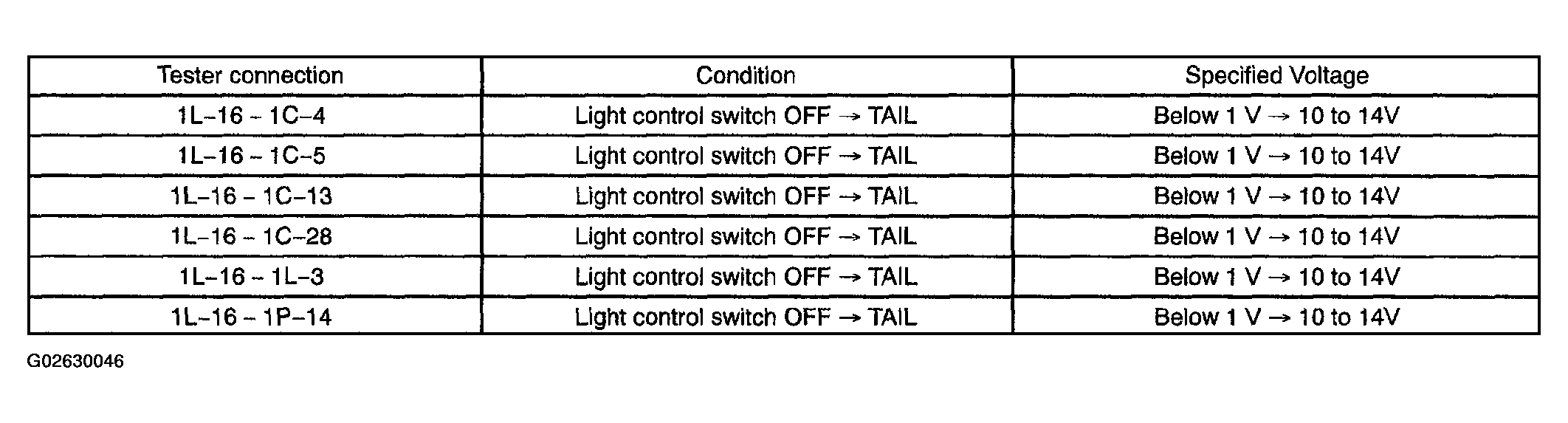

- Measure voltage between the each of terminals as shown in Fig 3
.
Standard:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
- NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Measure voltage between the each of terminals as shown in Fig 3
.
