Terminals Of Ecu

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY (6 SPEAKER)

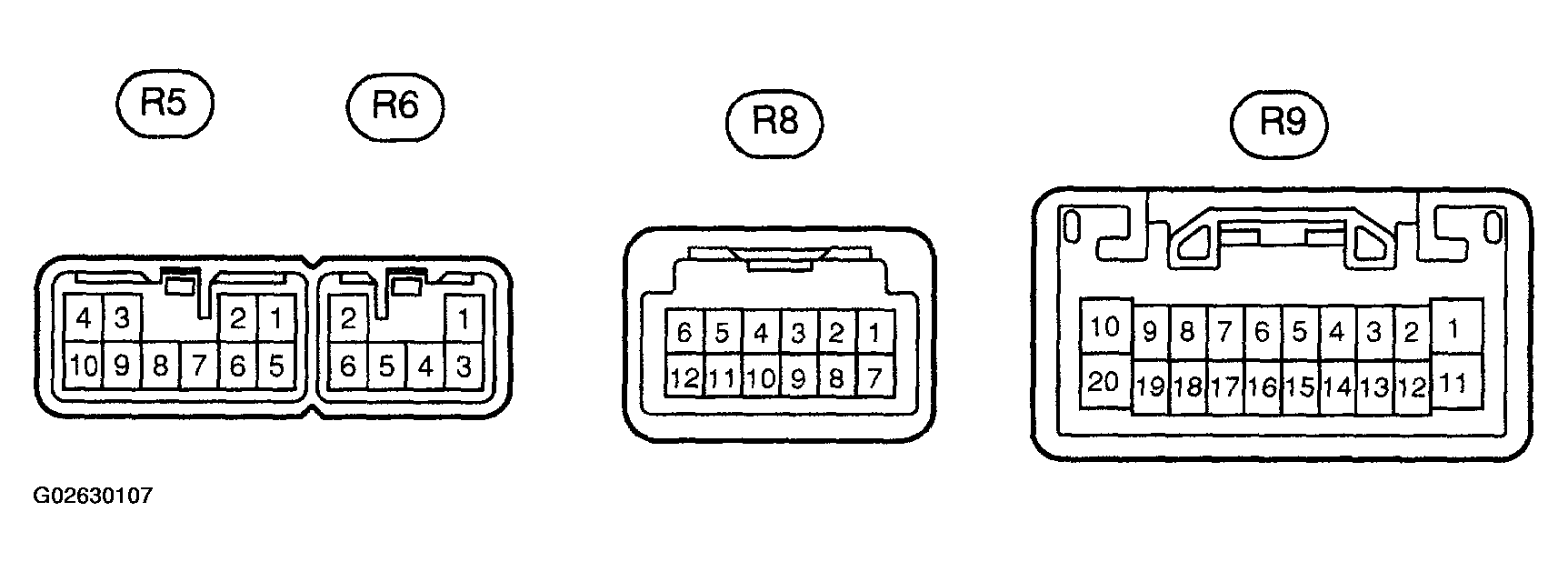

Fig 1: Identifying Terminals Of ECU (Radio Receiver Assy (6 Speaker)) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

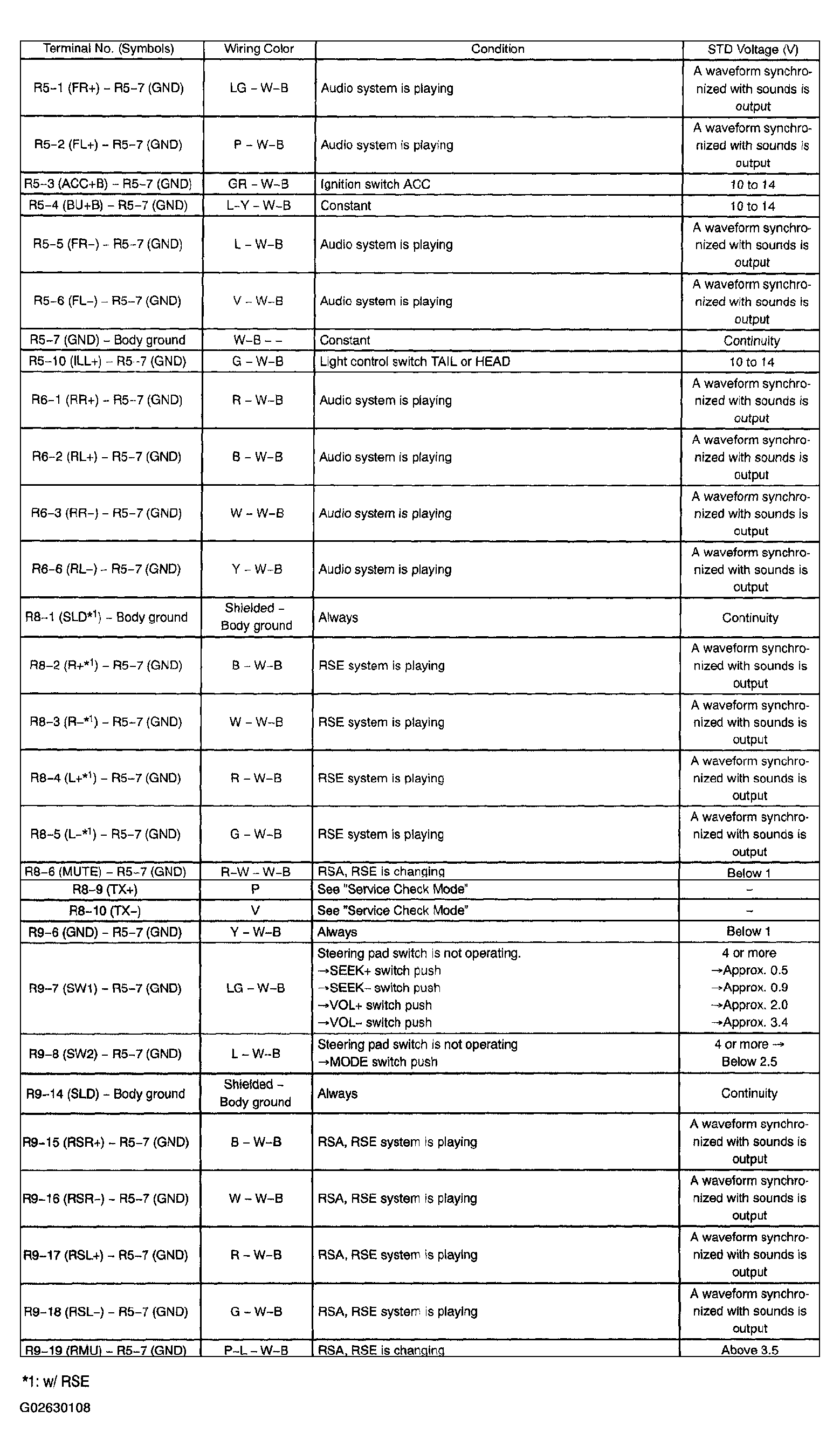

Fig 2: Identifying Terminals Of ECU (Radio Receiver Assy (6 Speaker)) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY (6 SPEAKER, w/o RSA, RSE system)

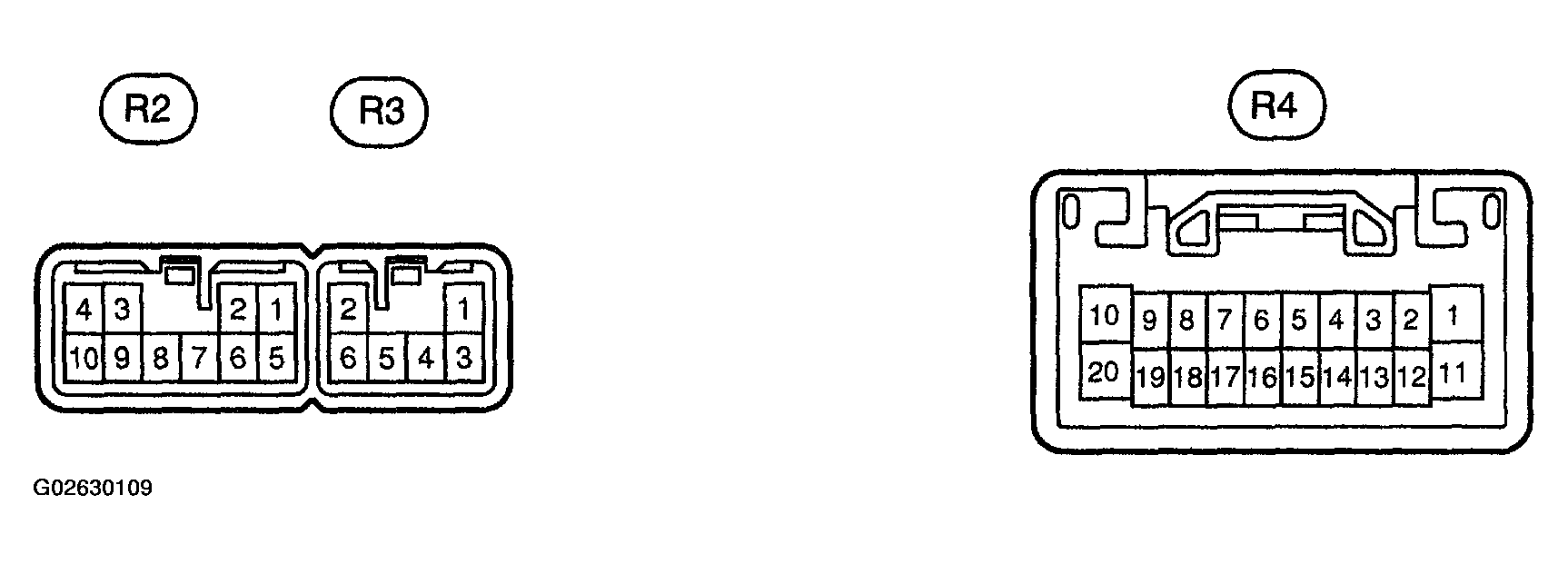

Fig 3: Identifying Terminals Of ECU (Radio Receiver Assy (6 Speaker, W/O RSA, RSE System)) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

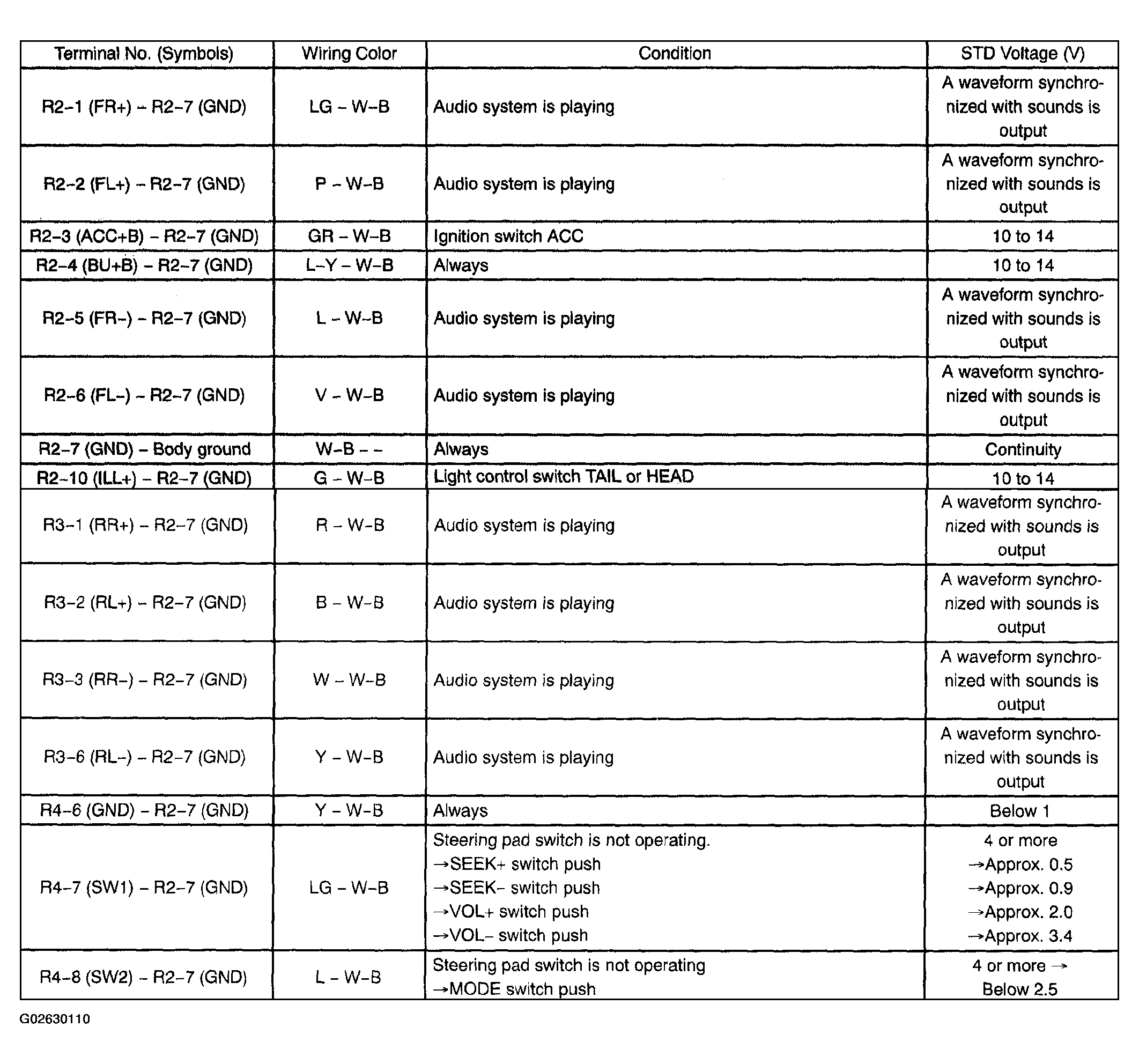

Fig 4: Identifying Terminals Of ECU (Radio Receiver Assy (6 Speaker, W/O RSA, RSE System)) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY (10 SPEAKER)

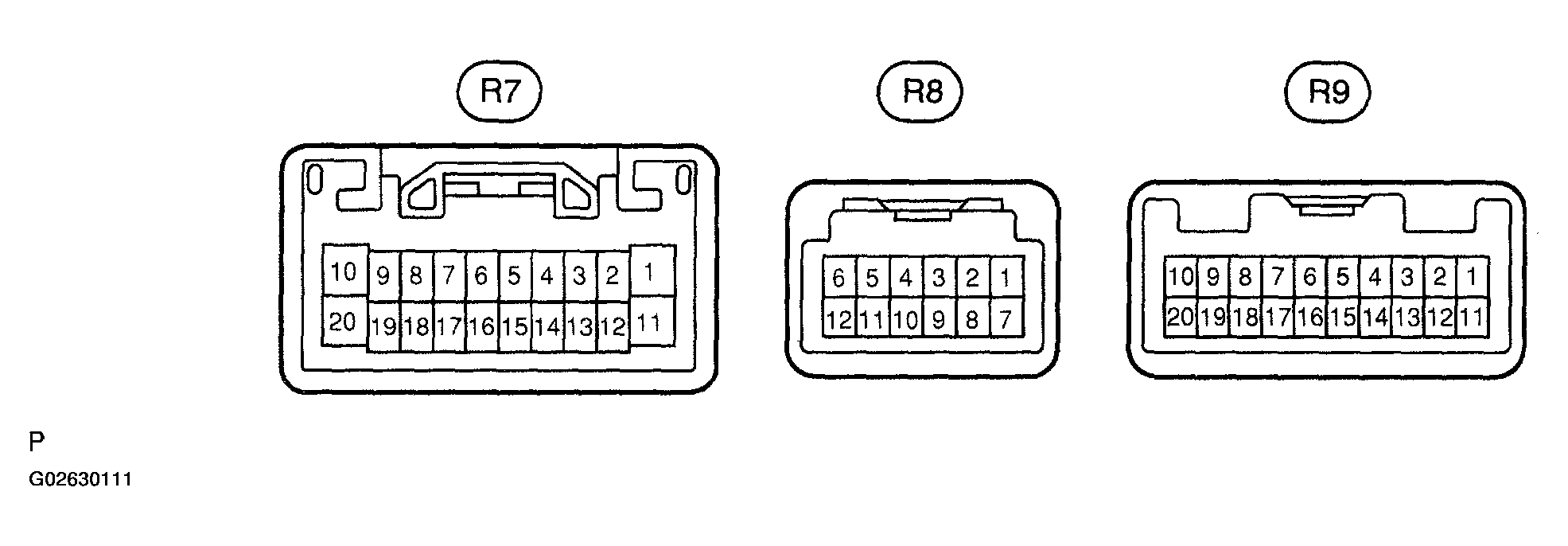

Fig 5: Identifying Terminals Of ECU (Radio Receiver Assy (10 Speaker)) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

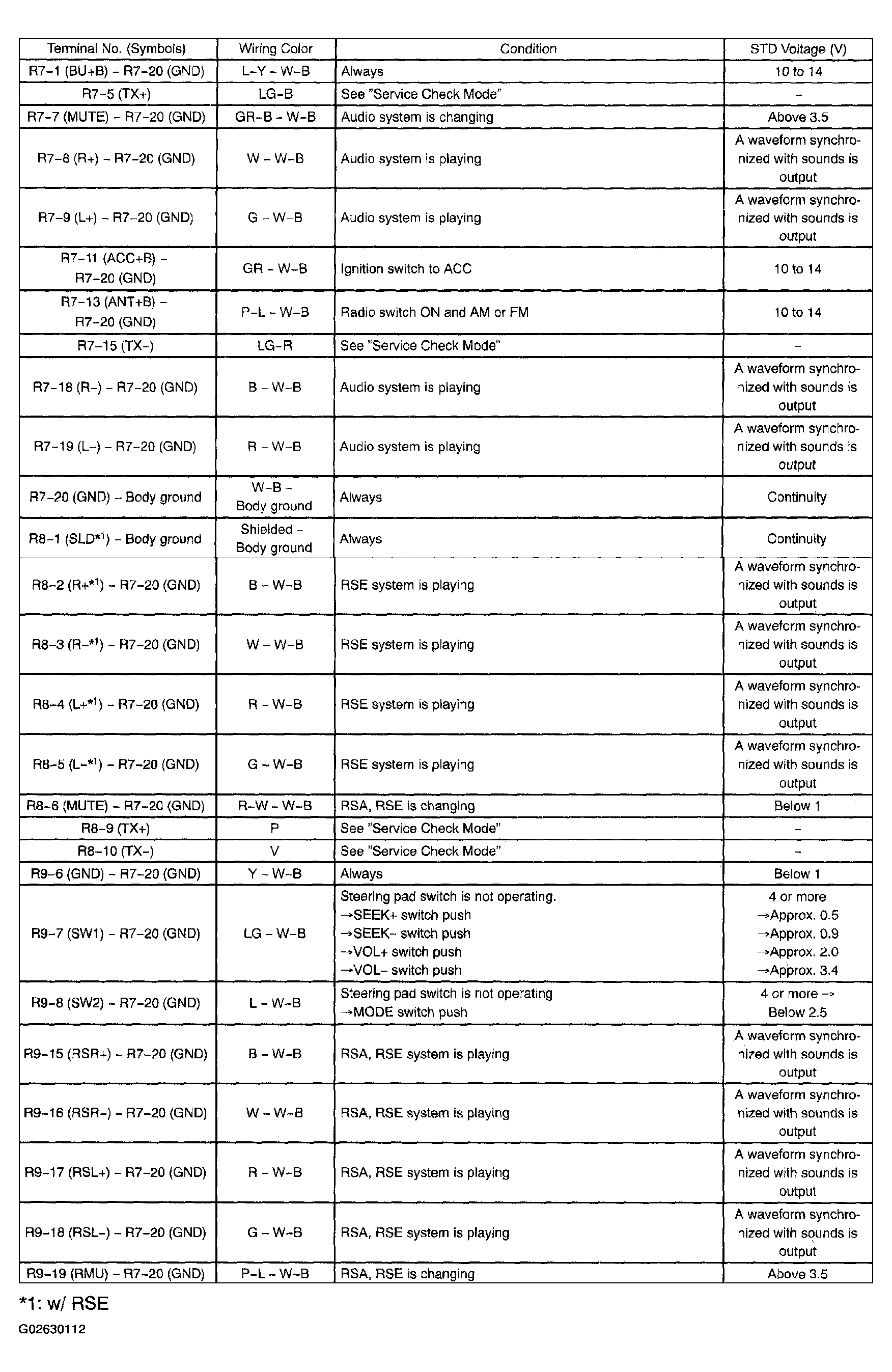

Fig 6: Identifying Terminals Of ECU (Radio Receiver Assy (10 Speaker)) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER

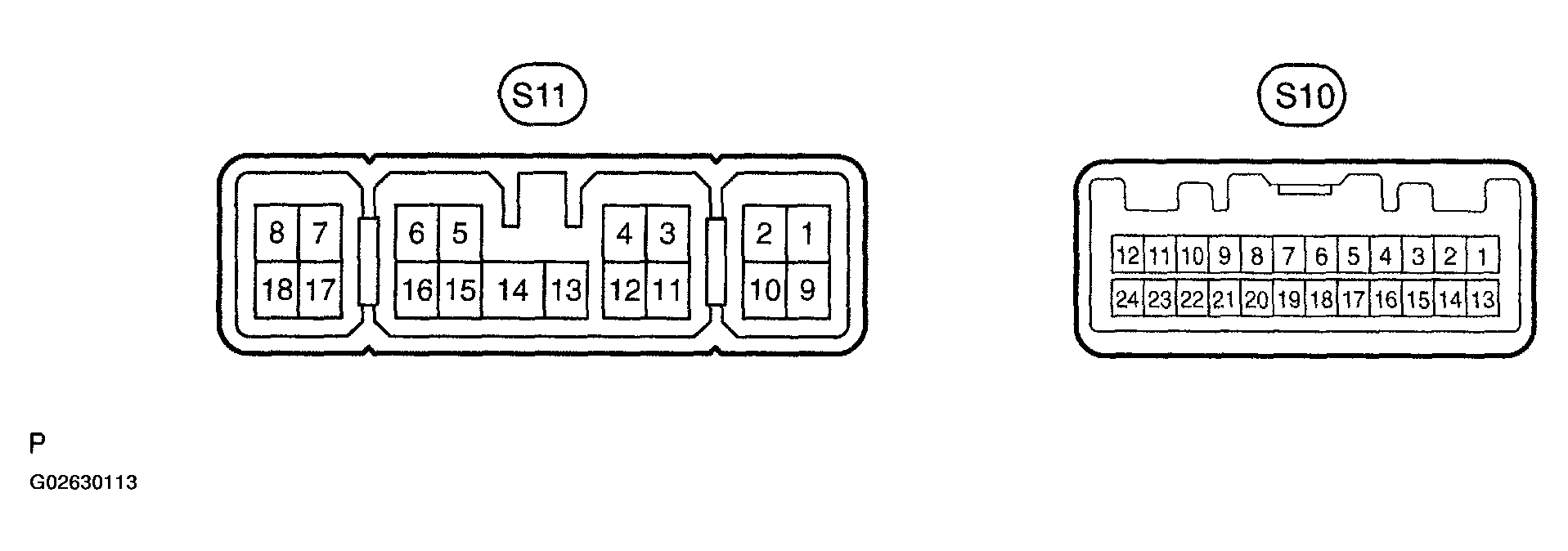

Fig 7: Identifying Terminals Of ECU (Stereo Component Amplifier) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

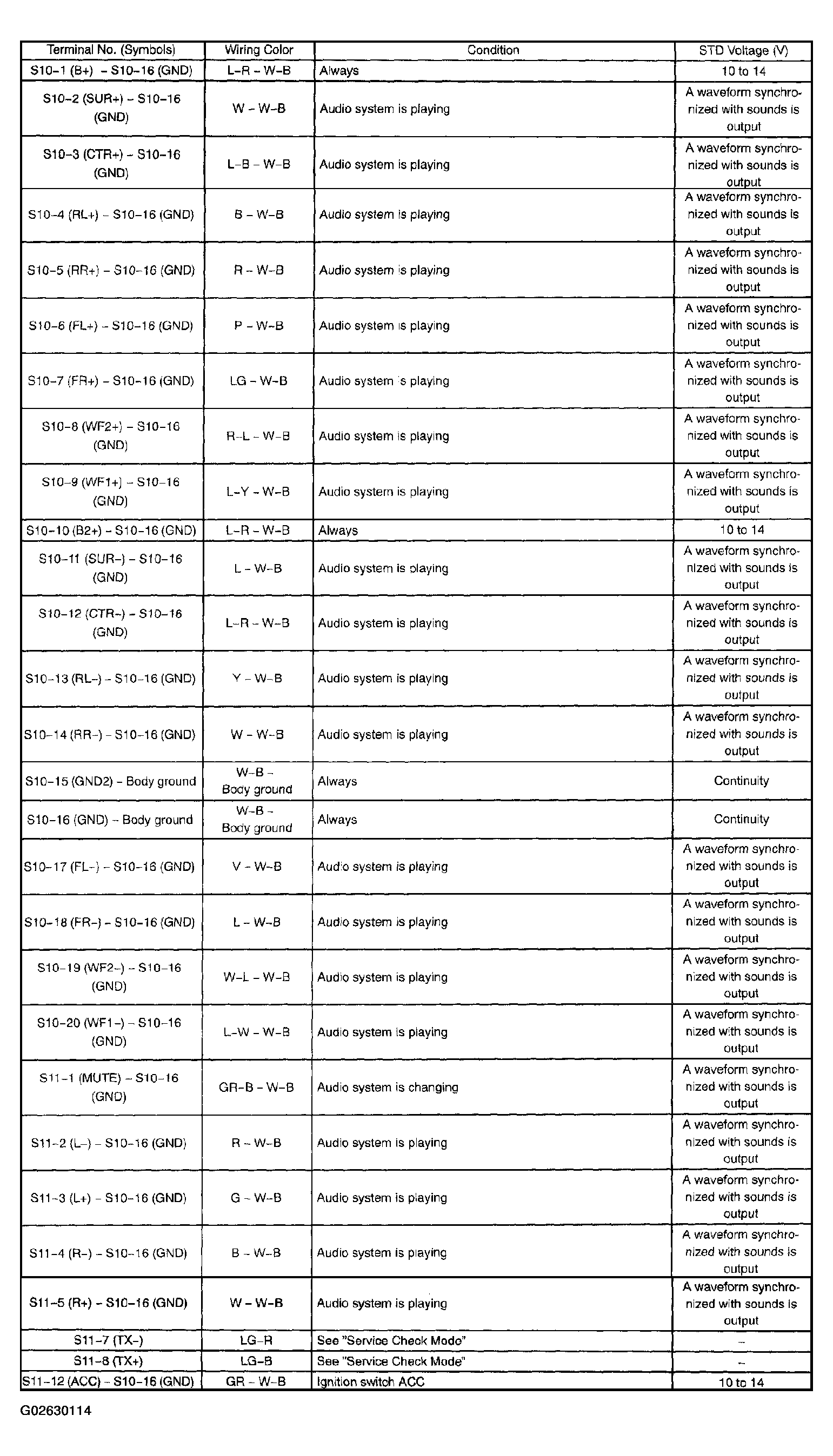

Fig 8: Identifying Terminal Of ECU (Stereo Component Amplifier) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
