Drive Belt: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL RH

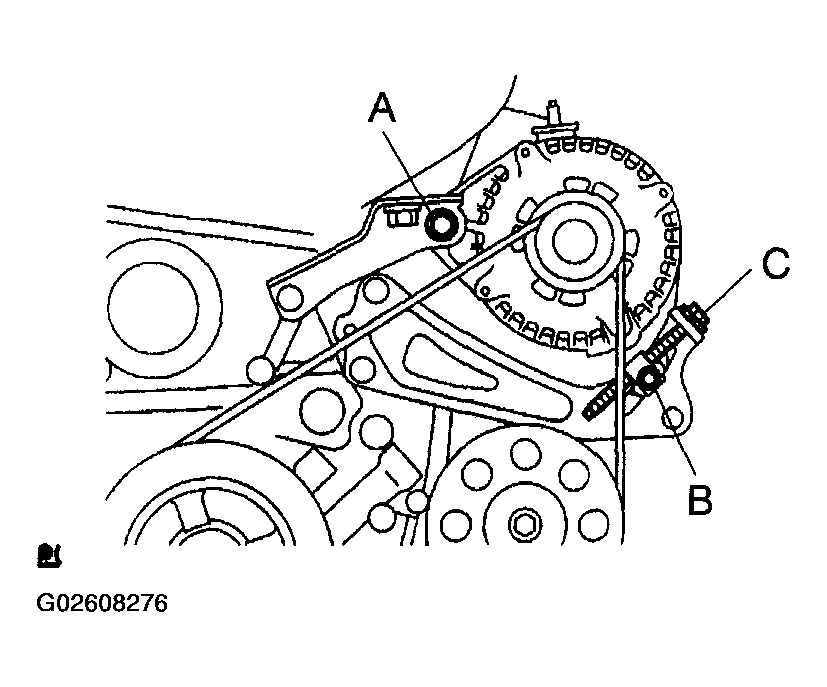

REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
1. Loosen bolts A and B.
2. Loosen the adjusting bolt C, and remove the V-ribbed belt.

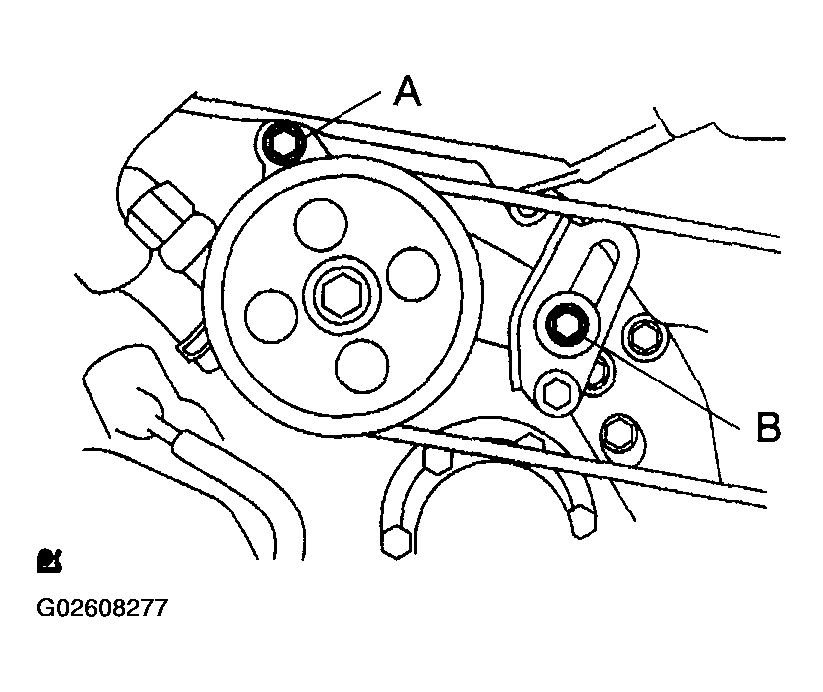

Fig 2: Removing Vane Pump V Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VANE PUMP V BELT
1. Loosen bolts A and B, and remove the V-ribbed belt.

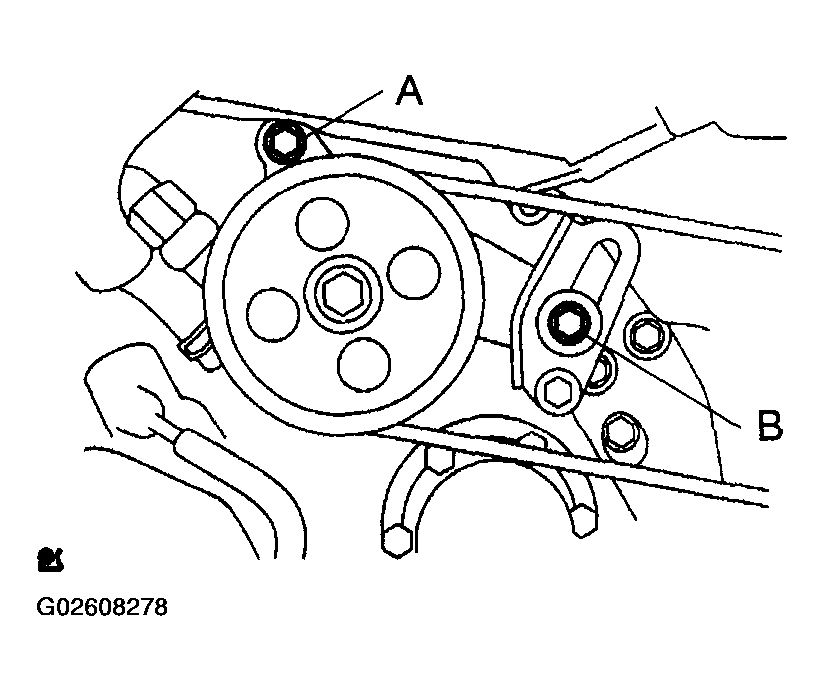

Fig 3: Installing Vane Pump V Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VANE PUMP V BELT
1. Install the V-ribbed belt on each pulley.
2. Using a bar, adjust the V-ribbed belt tension and tighten bolt B.
  Torque: 44 N.m (449 kgf.Cm, 32 ft.lbf)
3. Tighten bolt A.
  Torque: 44 N.m (449 kgf.Cm, 32 ft.lbf)

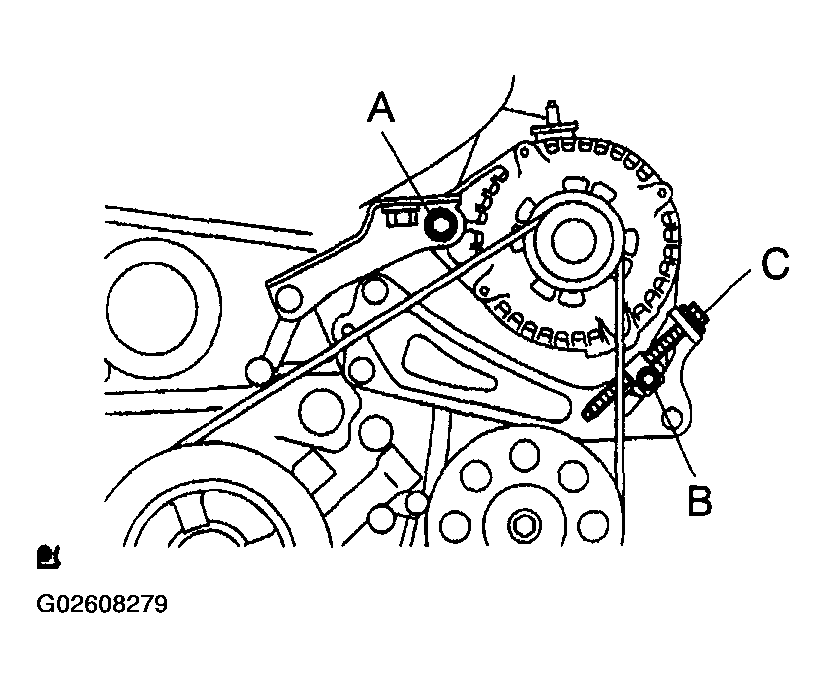

Fig 4: Installing V (Cooler Compressor To Crankshaft Pulley) Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
1. Install the V-ribbed belt on each pulley.
2. Tighten the adjusting bolt C, and adjust the V-ribbed belt tension.
3. First tighten bolt A, then tighten bolt B.
Torque:

Bolt A 58 N.m (591 kgf.cm, 43 ft.lbf)

Bolt B 18 N.m (184 kgf.cm, 13 ft.lbf)
INSPECT DRIVE BELT DEFLECTION AND TENSION (REFERENCE) (See ENGINE )
INSTALL FRONT WHEEL RH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
