Partial Engine ASSY: Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

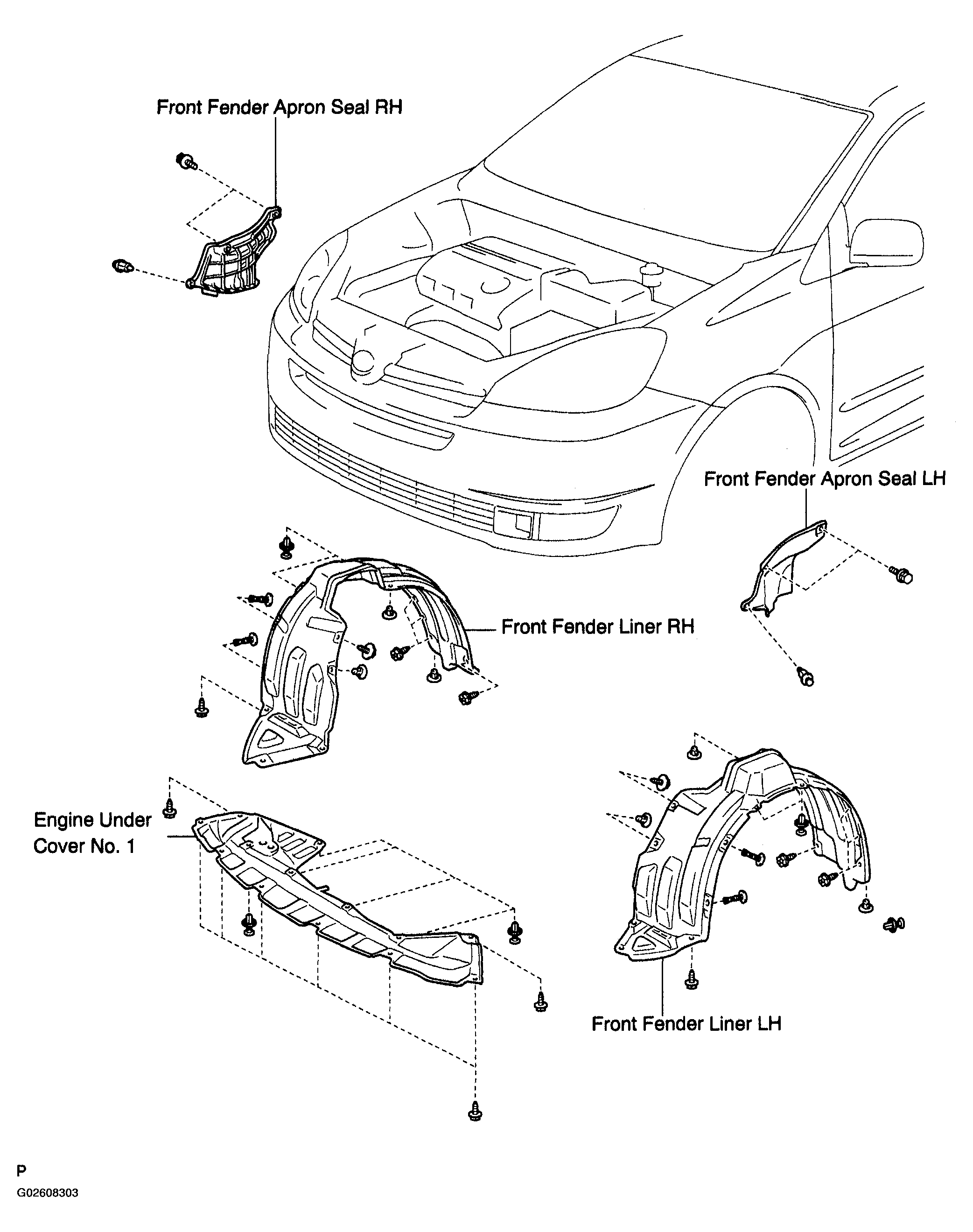

Fig 1: Identifying Partial Engine Assy Replacement Components With Torque Specifications (1 Of 16)

G02608303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

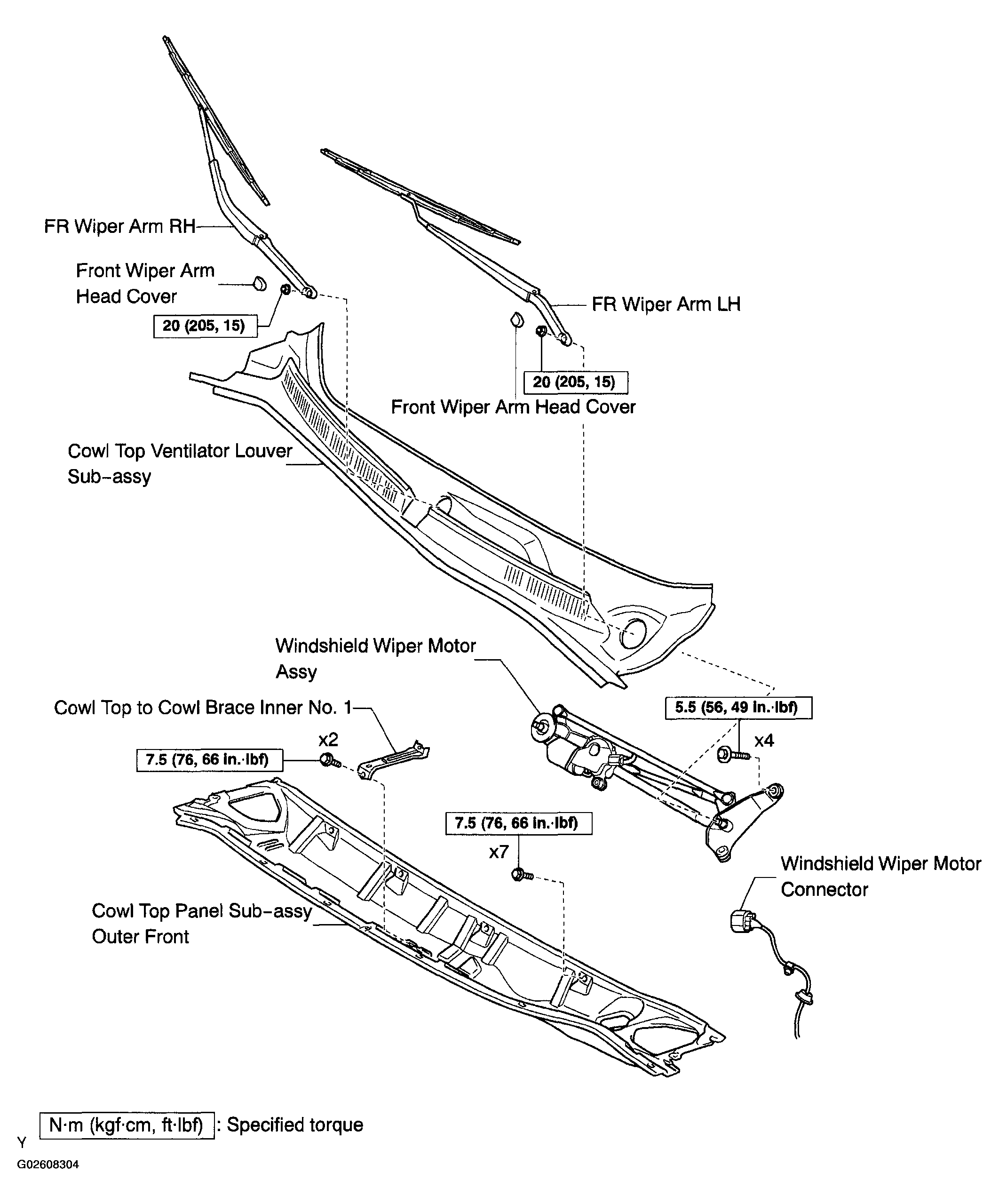

Fig 2: Identifying Partial Engine Assy Replacement Components With Torque Specifications (2 Of 16)

G02608304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

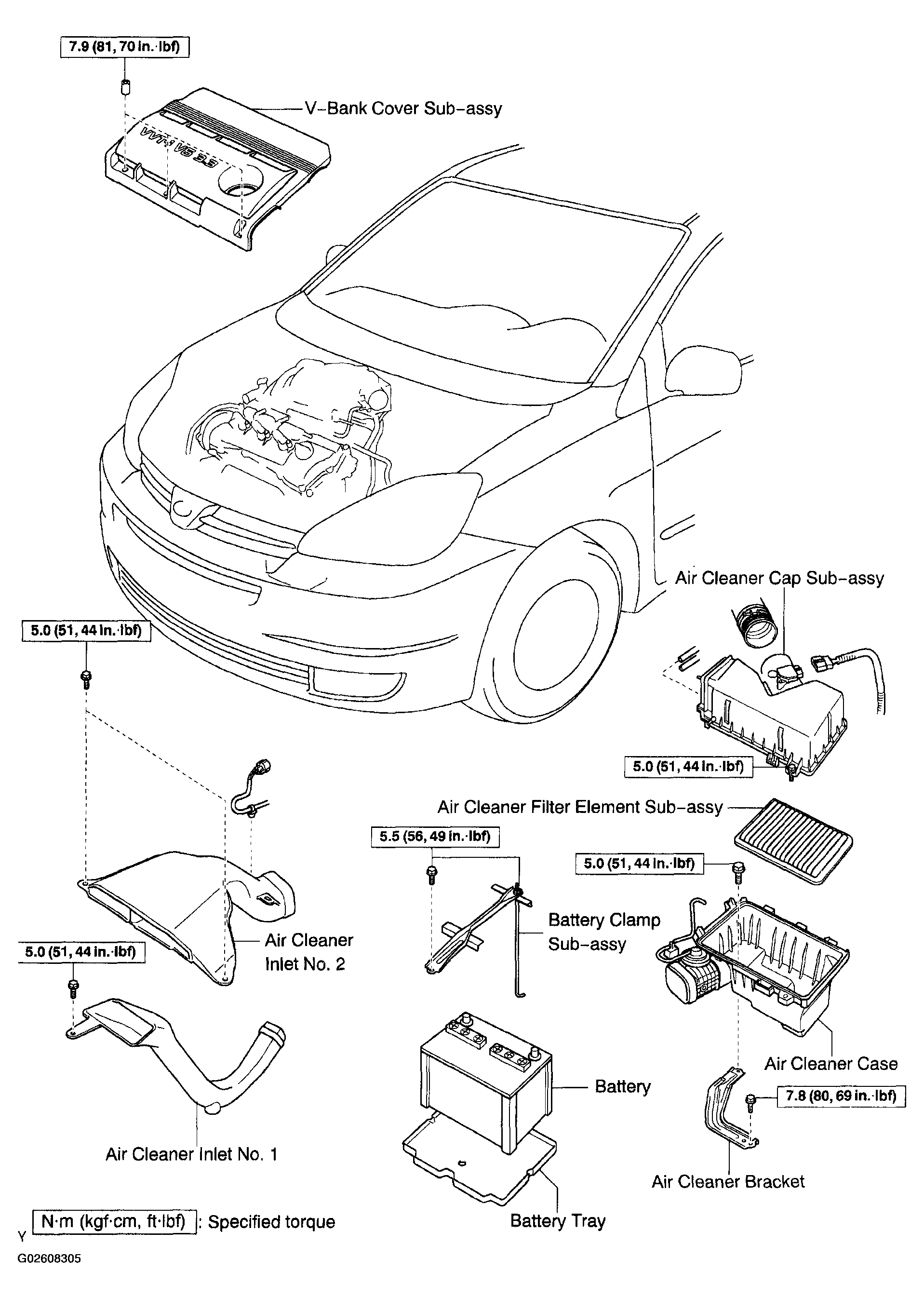

Fig 3: Identifying Partial Engine Assy Replacement Components With Torque Specifications (3 Of 16)

G02608305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

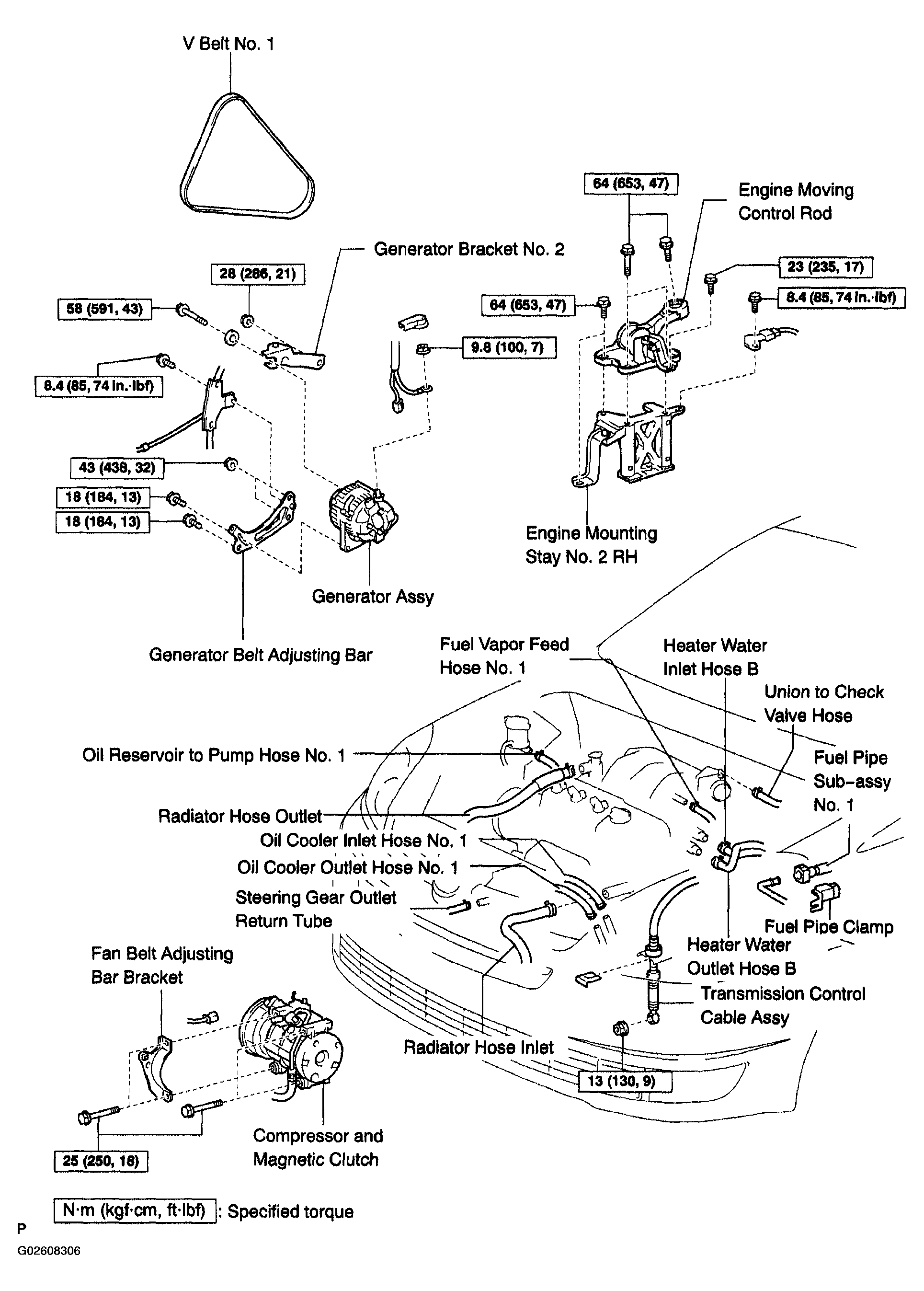

Fig 4: Identifying Partial Engine Assy Replacement Components With Torque Specifications (4 Of 16)

G02608306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

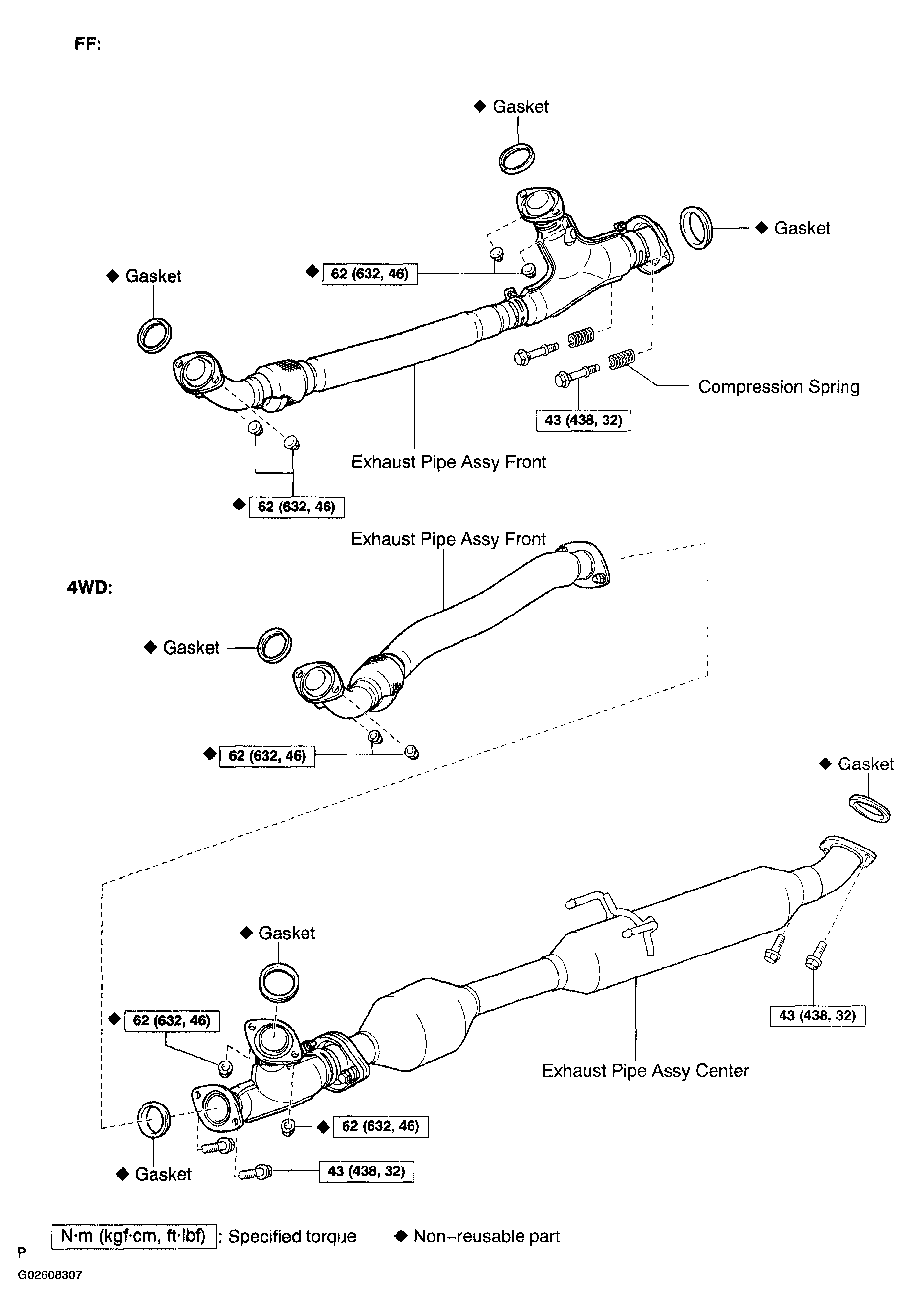

Fig 5: Identifying Partial Engine Assy Replacement Components With Torque Specifications (5 Of 16)

G02608307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

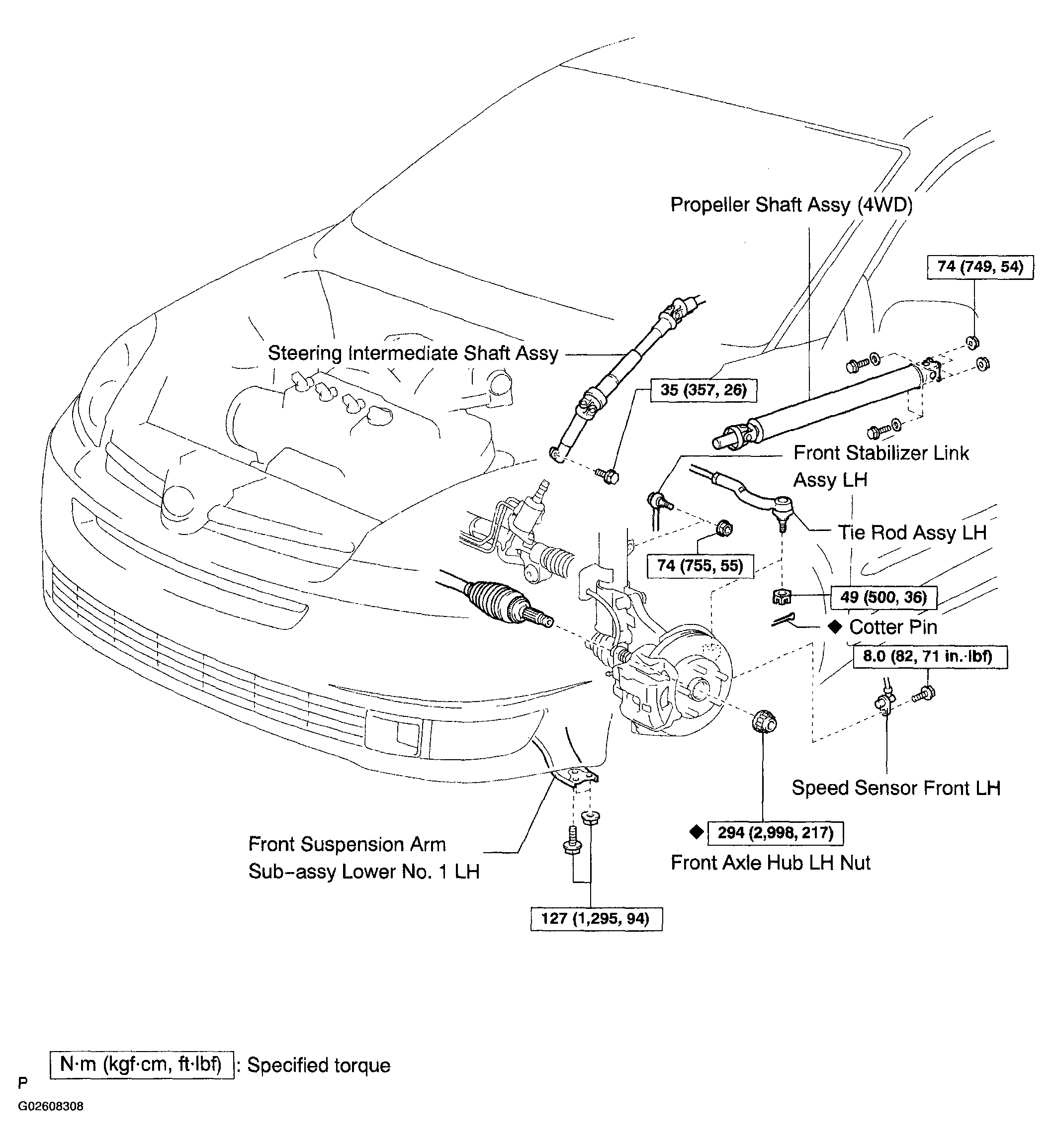

Fig 6: Identifying Partial Engine Assy Replacement Components With Torque Specifications (6 Of 16)

G02608308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

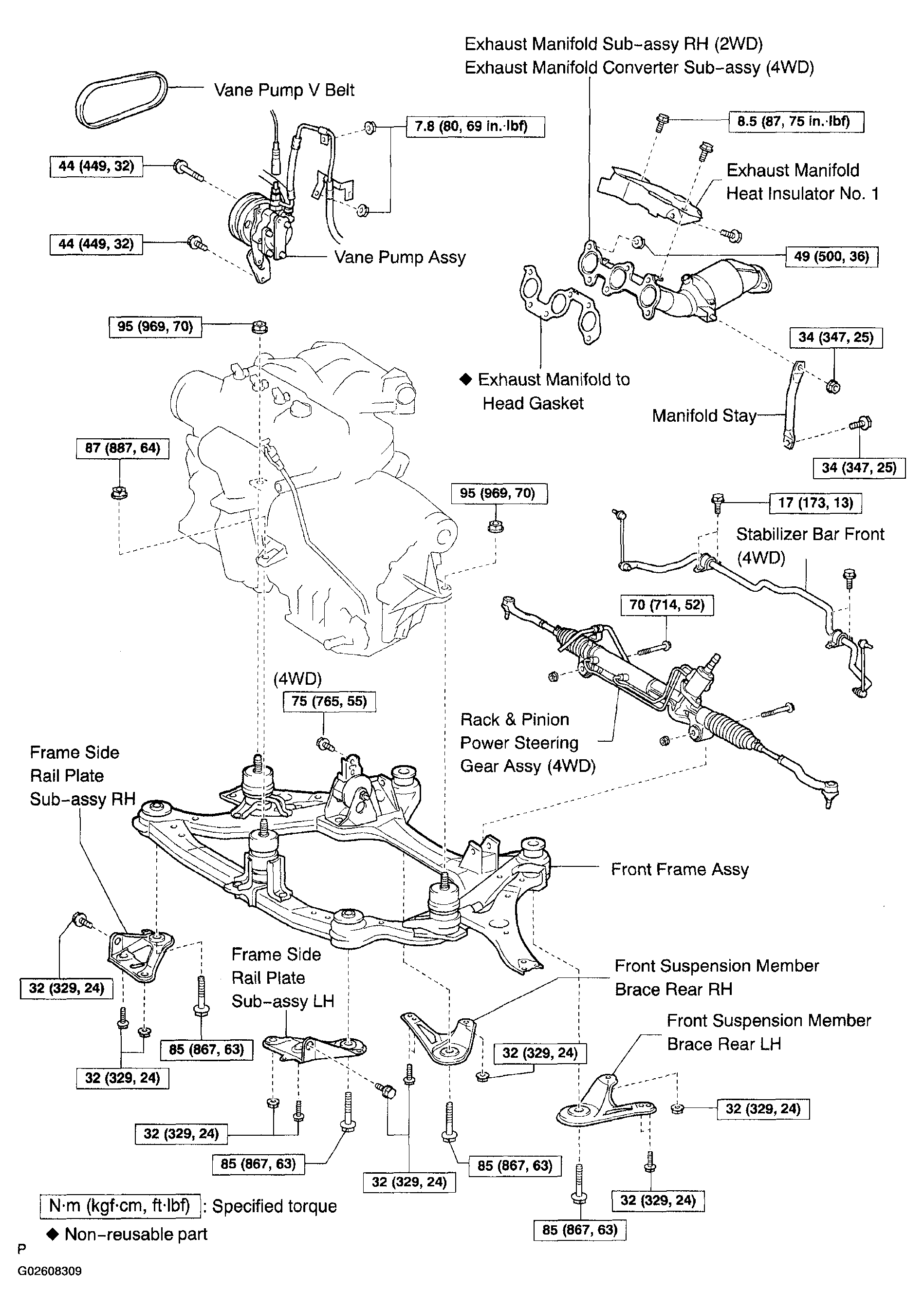

Fig 7: Identifying Partial Engine Assy Replacement Components With Torque Specifications (7 Of 16)

G02608309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

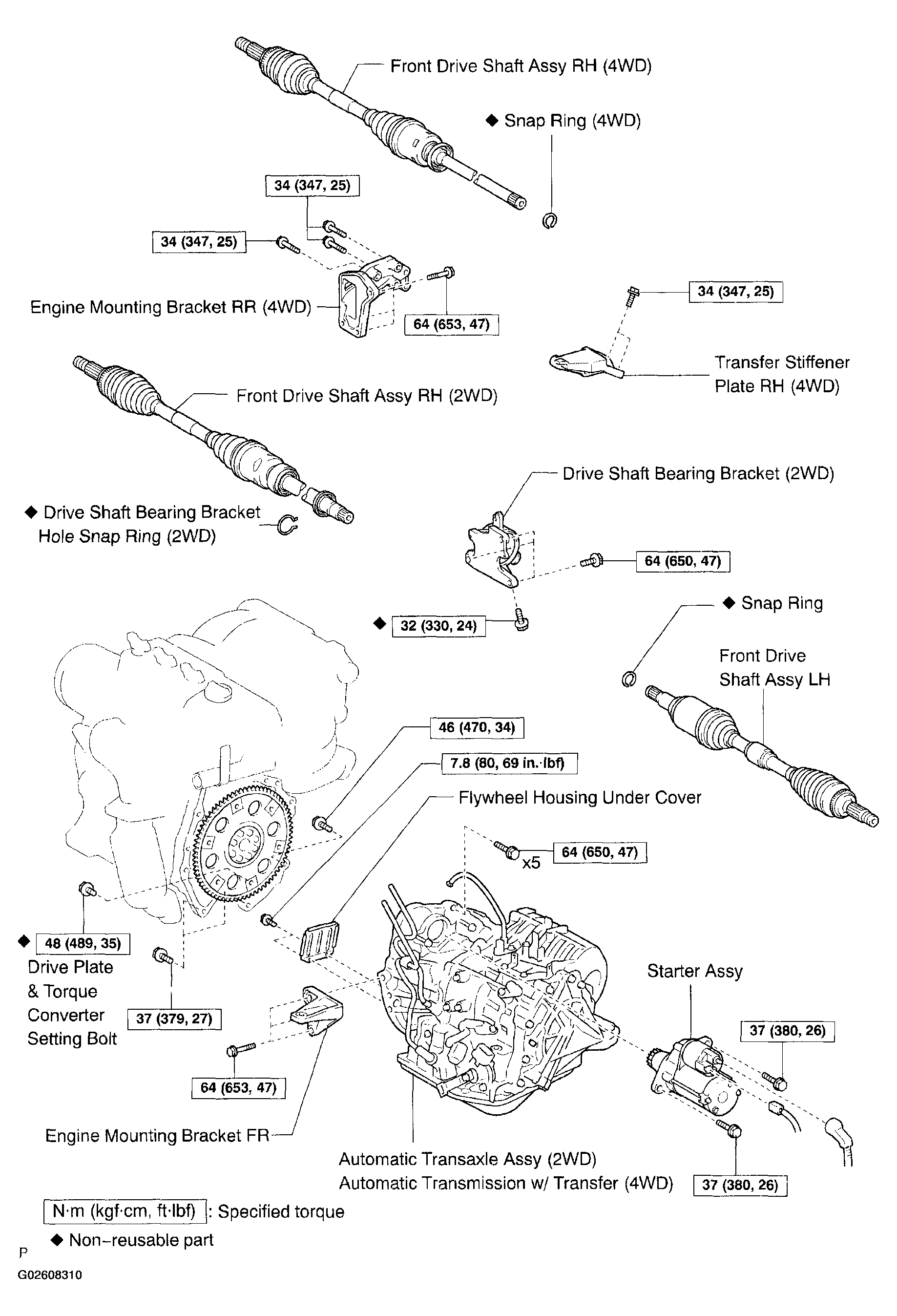

Fig 8: Identifying Partial Engine Assy Replacement Components With Torque Specifications (8 Of 16)

G02608310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Partial Engine Assy Replacement Components With Torque Specifications (9 Of 16)

G02608311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

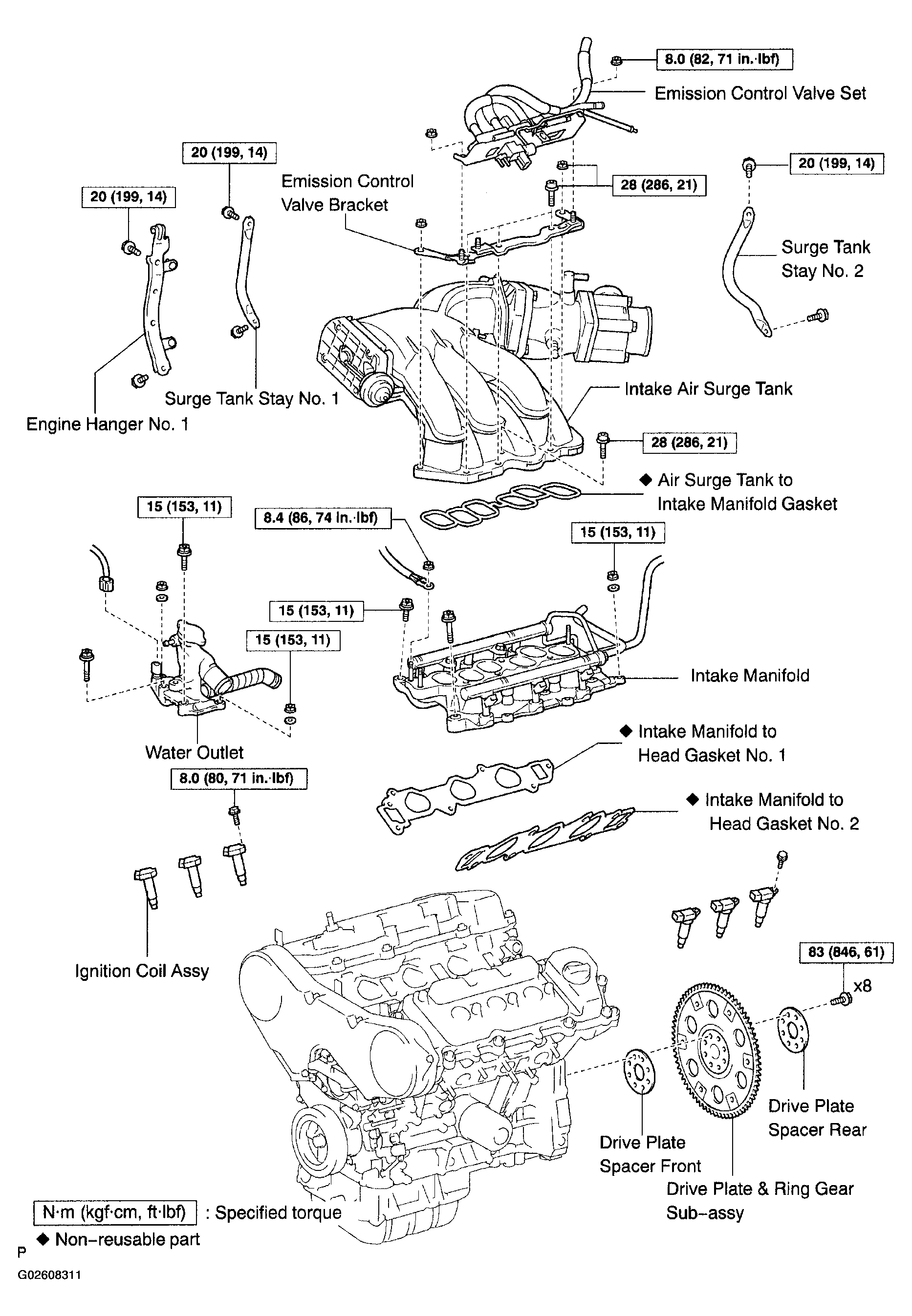

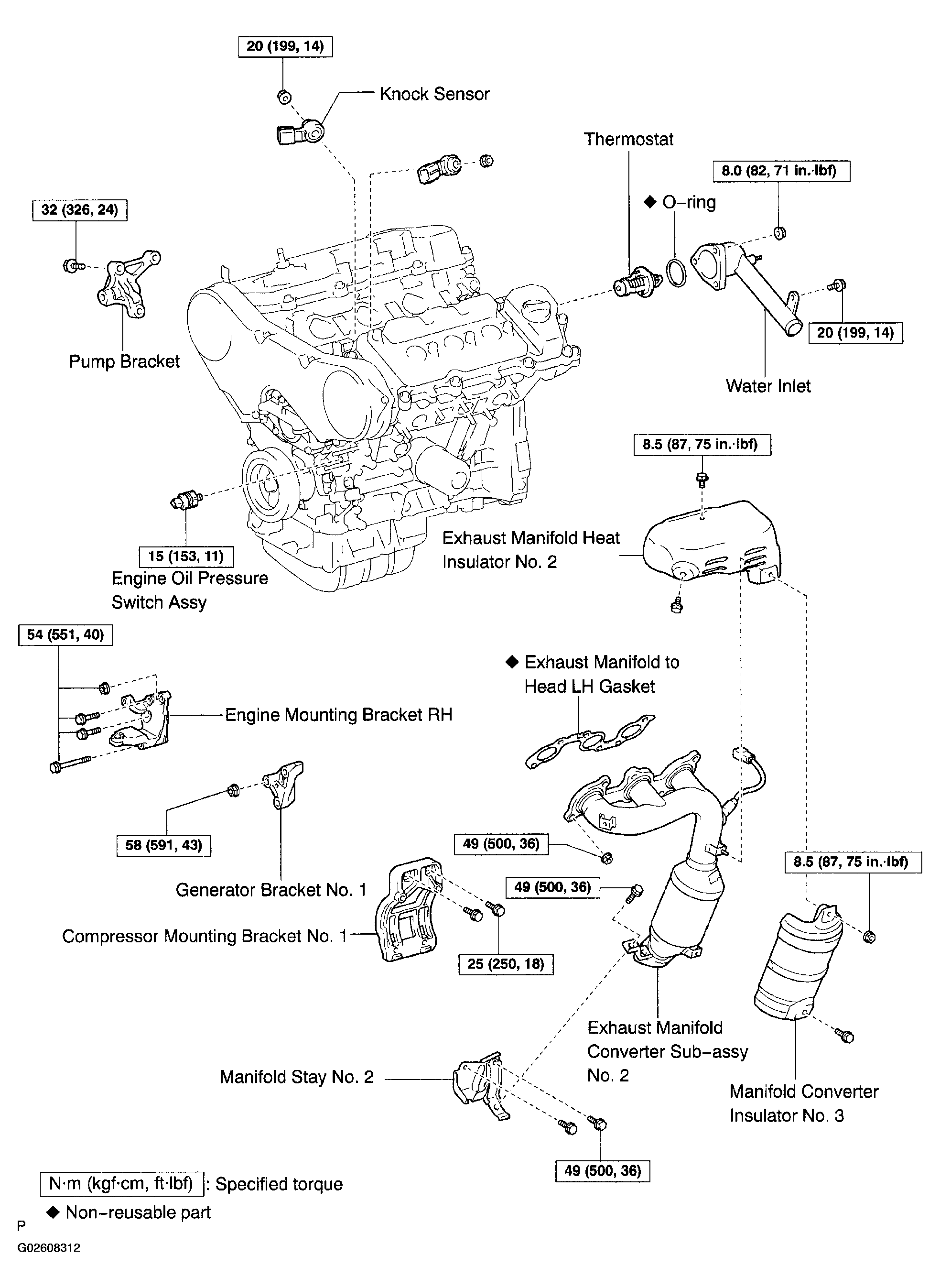

Fig 10: Identifying Partial Engine Assy Replacement Components With Torque Specifications (10 Of 16)

G02608312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Partial Engine Assy Replacement Components With Torque Specifications (11 Of 16)

G02608313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

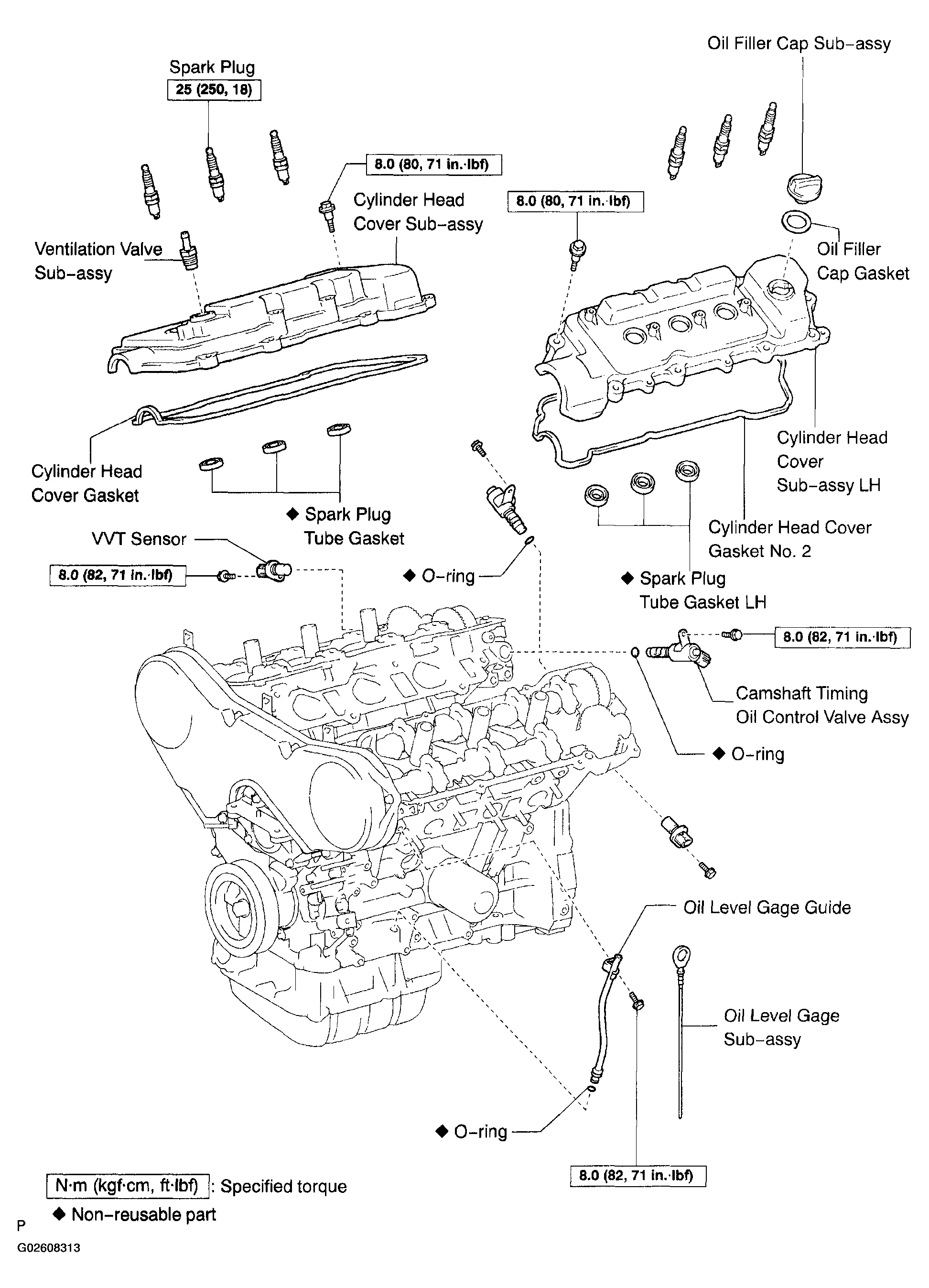

Fig 12: Identifying Partial Engine Assy Replacement Components With Torque Specifications (12 Of 16)

G02608314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Identifying Partial Engine Assy Replacement Components With Torque Specifications (13 Of 16)

G02608315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

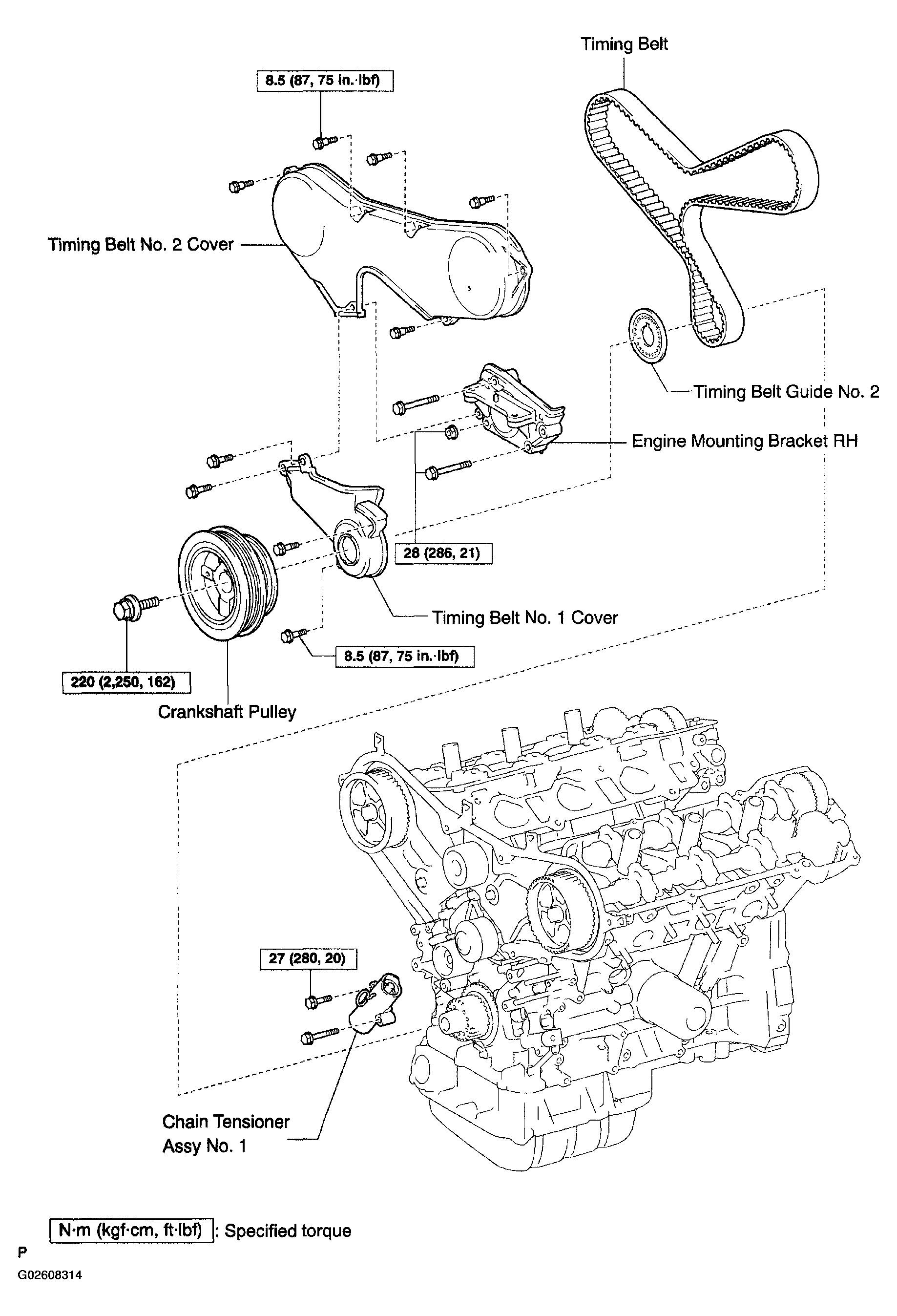

Fig 14: Identifying Partial Engine Assy Replacement Components With Torque Specifications (14 Of 16)

G02608316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

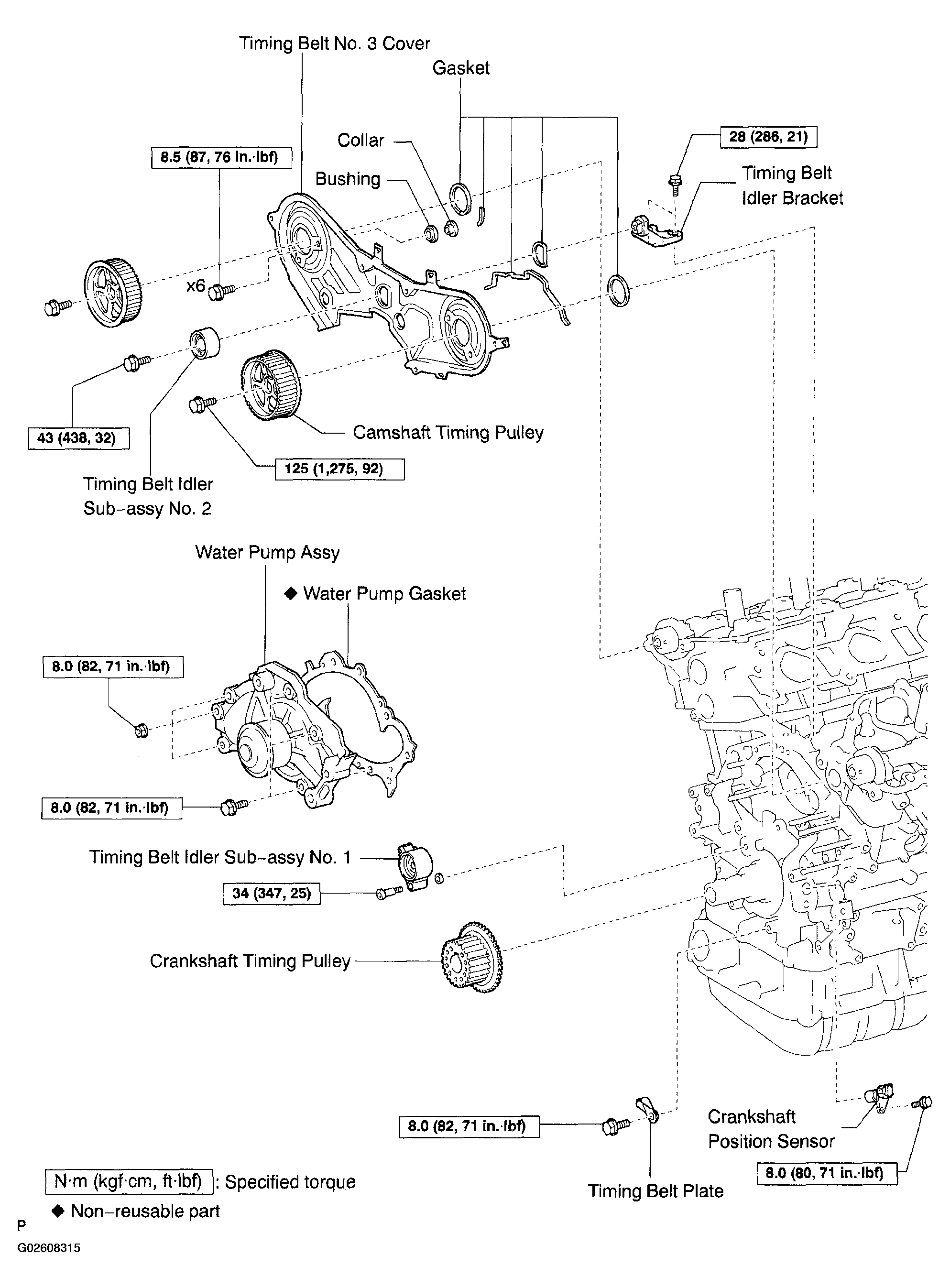

Fig 15: Identifying Partial Engine Assy Replacement Components With Torque Specifications (15 Of 16)

G02608317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

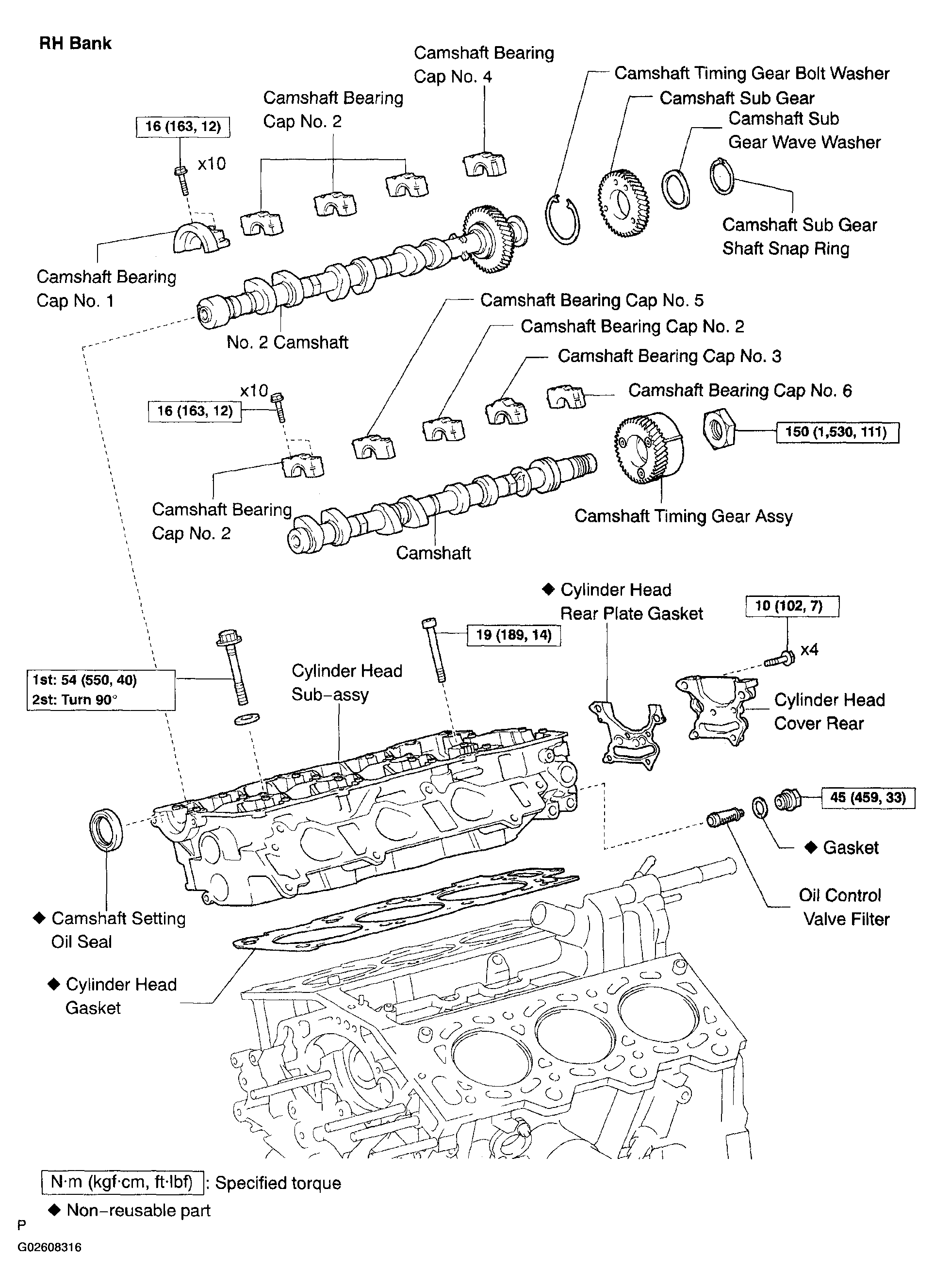

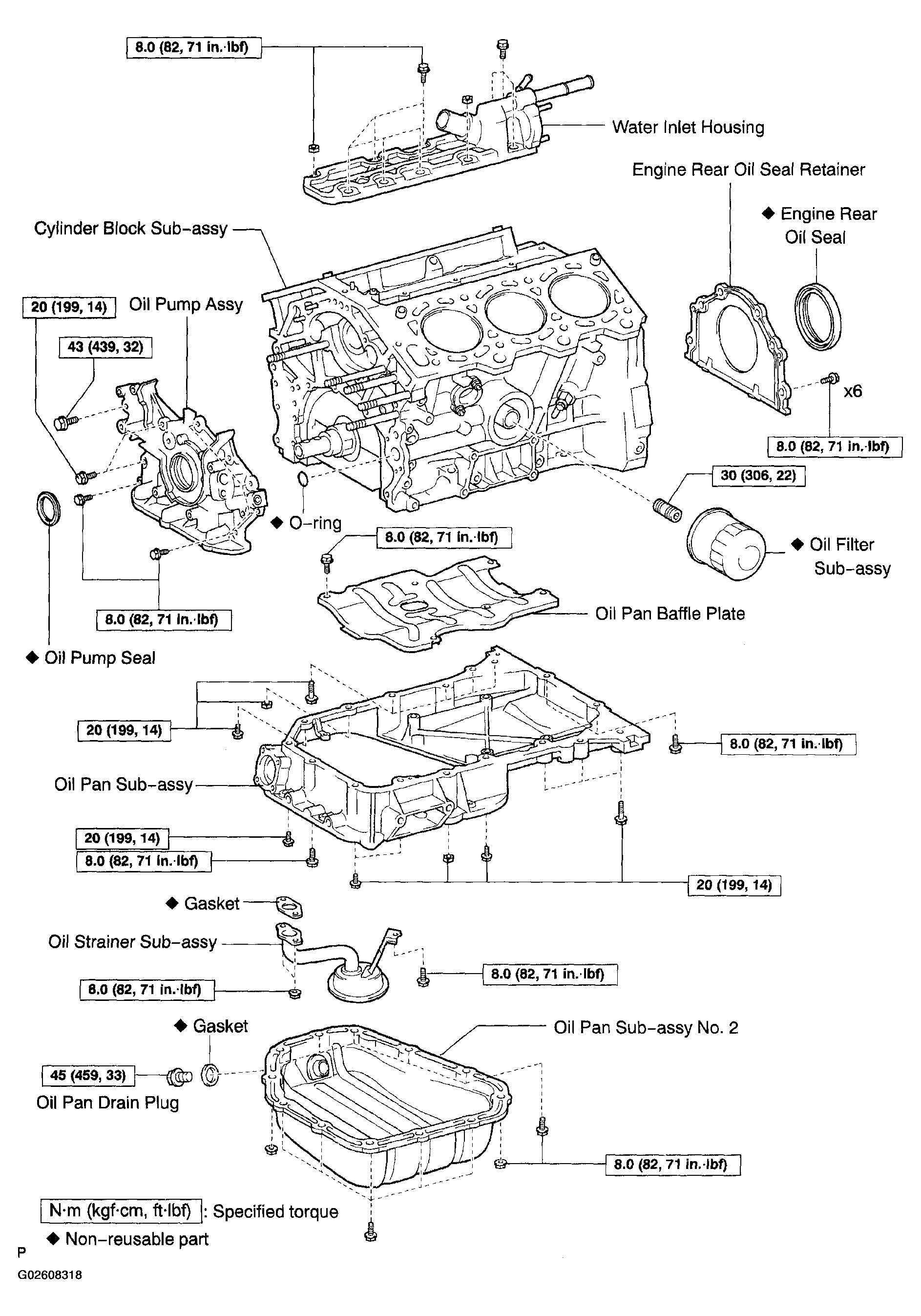

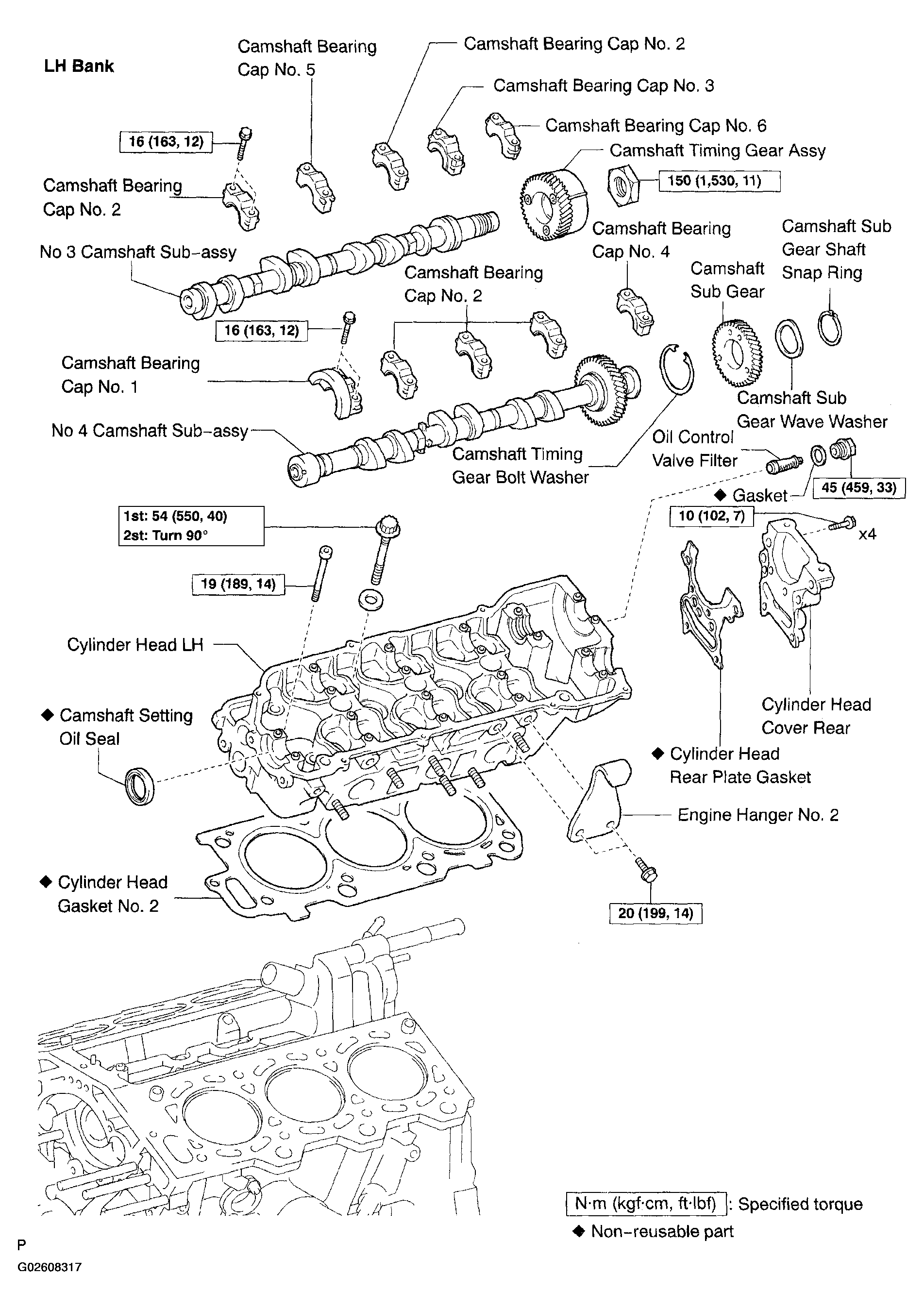

Fig 16: Identifying Partial Engine Assy Replacement Components With Torque Specifications (16 Of 16)

G02608318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
