W/Box Speaker ASSY No.2: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

  1. REMOVE REAR DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  2. REMOVE REAR DOOR WEATHERSTRIP LH (See  REPLACEMENT  )
  3. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
  4. REMOVE BACK DOOR SCUFF PLATE (See  REPLACEMENT  )
  5. REMOVE QUARTER TRIM PANEL ASSY FRONT LH (See  REPLACEMENT  )
  6. REMOVE W/BOX SPEAKER ASSY NO.2
    1. Disconnect the connector.
    2. Remove the 5 bolts and the w/ box speaker assy No.2.

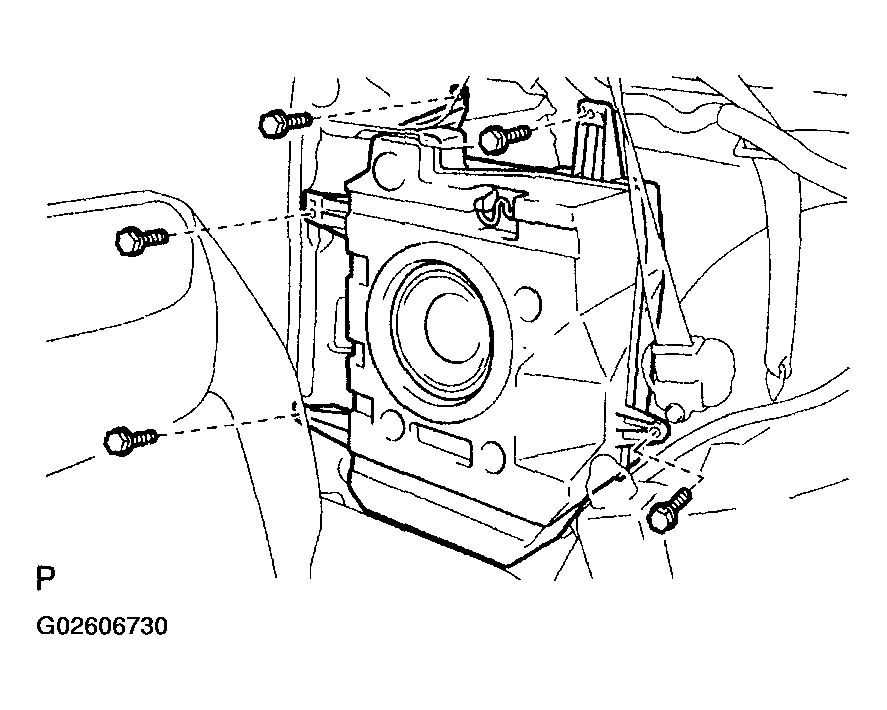

    Fig 1: Removing With Box Speaker Assy No.2
    G02606730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL W/BOX SPEAKER ASSY NO.2
    1. Install the w/ box speaker assy No. 2 with the 5 bolts.
      NOTE: Tighten the bolts in order shown in Fig 2 to install the w/ box speaker assy No.2.
    2. Connect the connector.

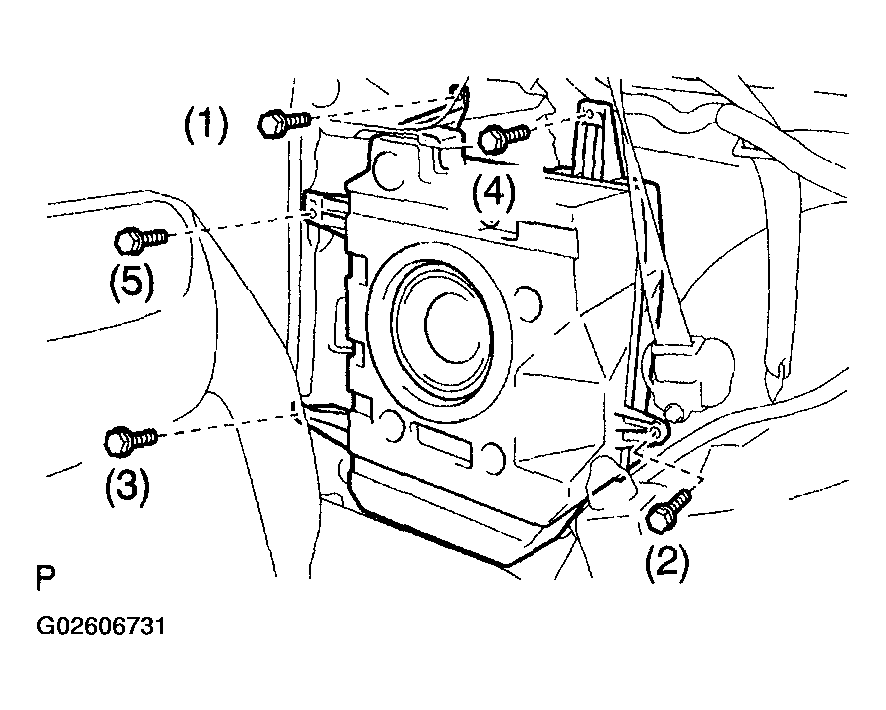

    Fig 2: Installing With Box Speaker Assy No. 2
    G02606731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
