Suspension Control System (Service Specifications)
›
Suspension Control System
›
Torque Specification
Torque Specification

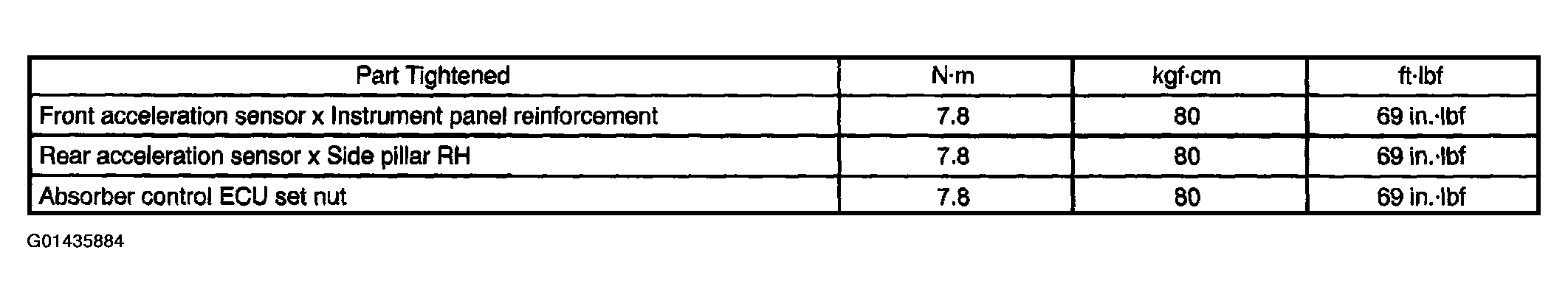

Fig 1: Suspension Control System Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
