Front Suspension (Service Specifications)
›
Front Suspension
›
Torque Specification
Torque Specification

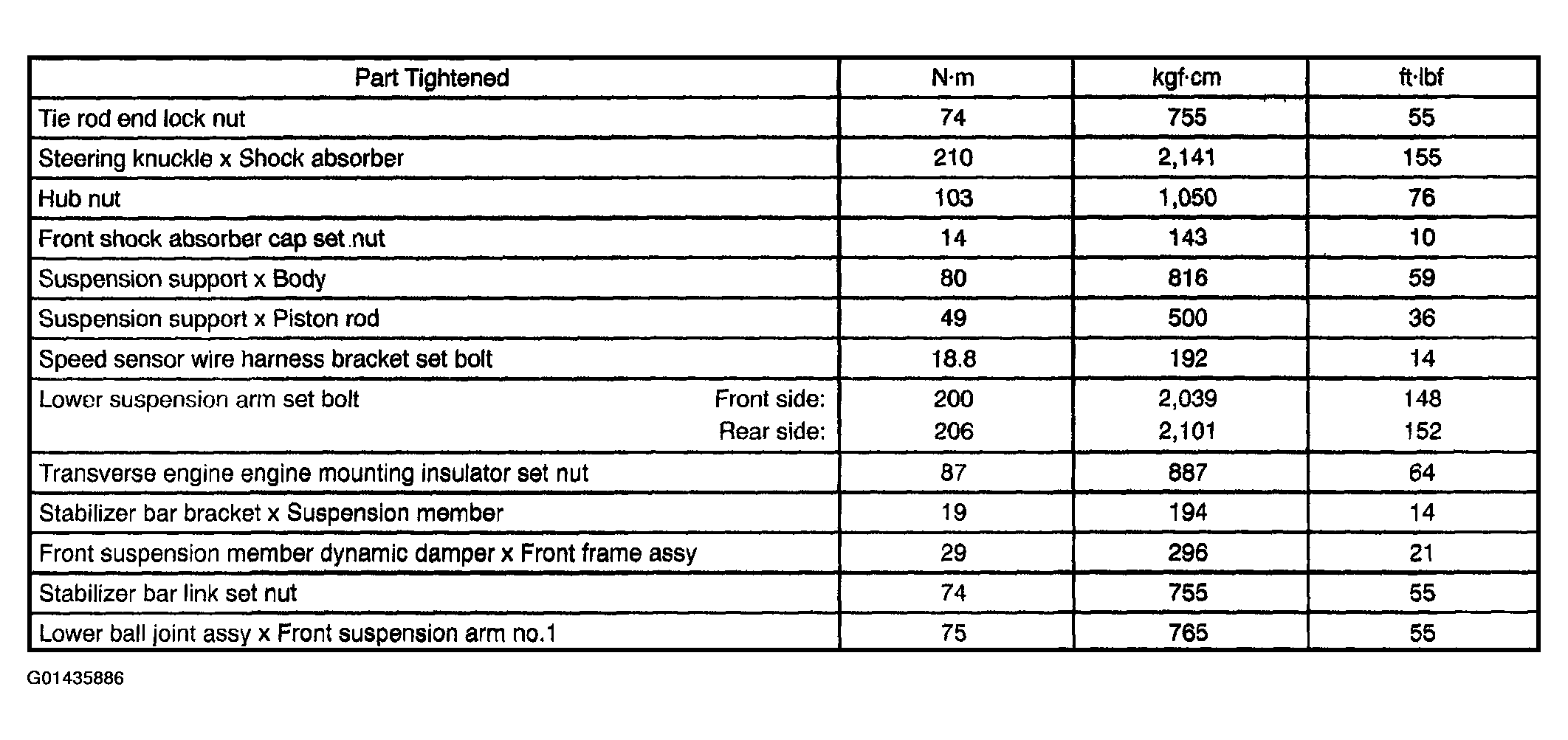

Fig 1: Front Suspension System Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
