Part And System Name List
Part And System Name List
This reference list indicates the part names used in this manual along with their definitions.

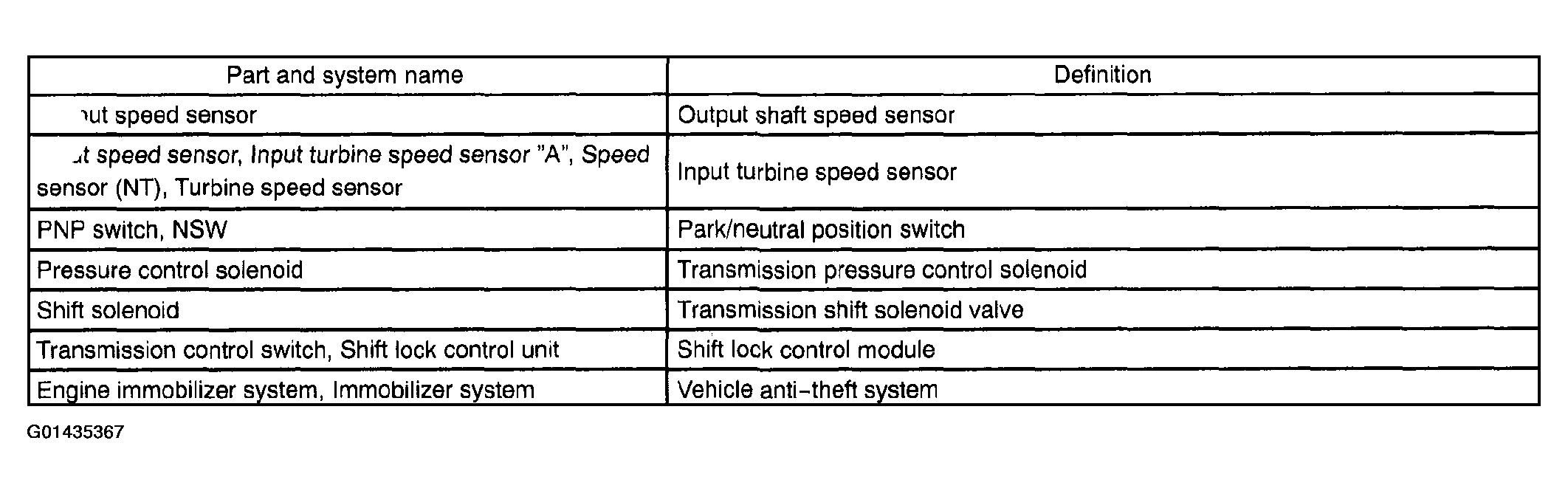

Fig 1: Identifying Part And System Name List (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

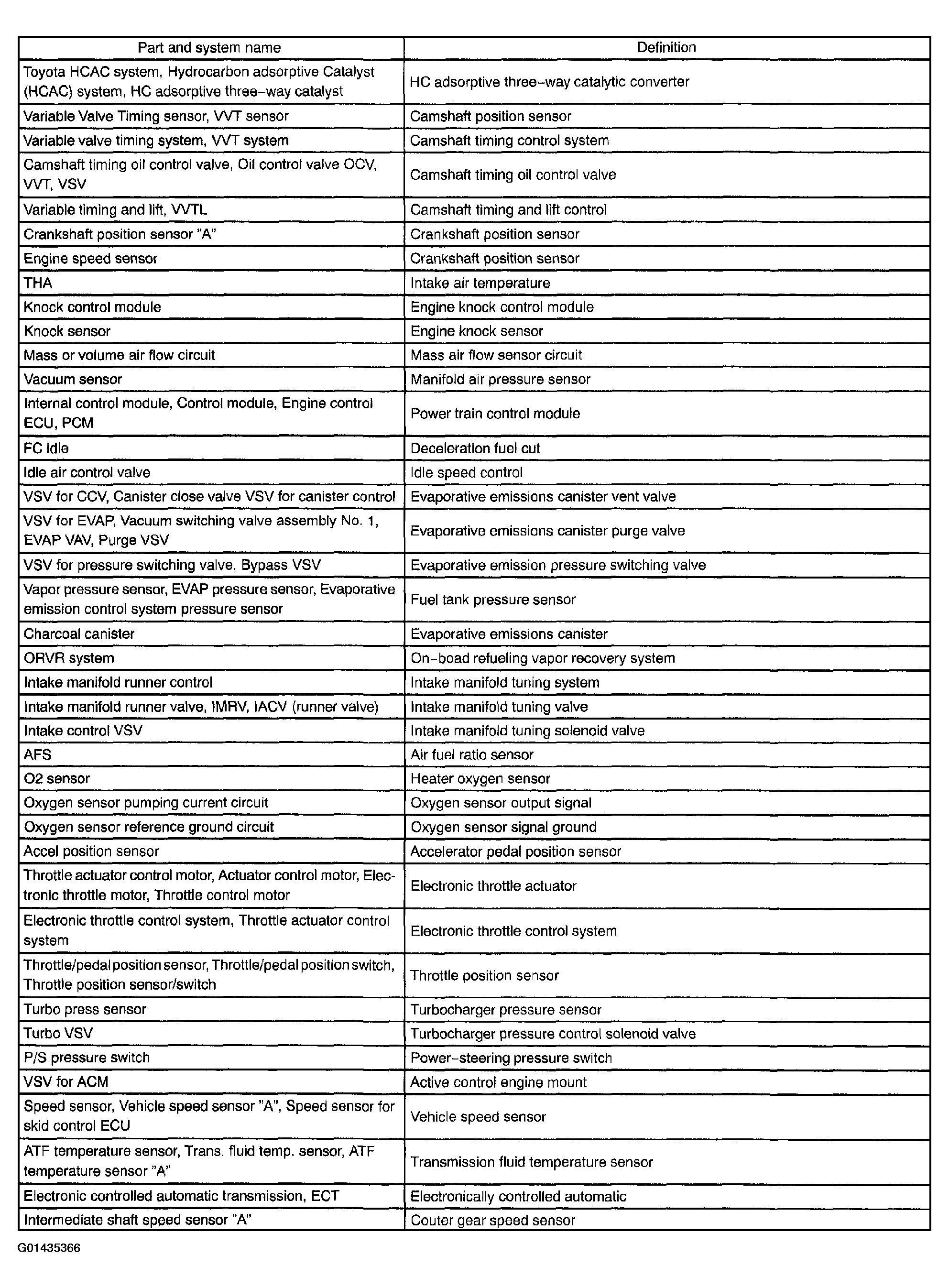

Fig 2: Identifying Part And System Name List (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
