Body & Frame
›
Door Locks
›
Driver Door Control System
›
Terminals Of Ecu
Terminals Of Ecu

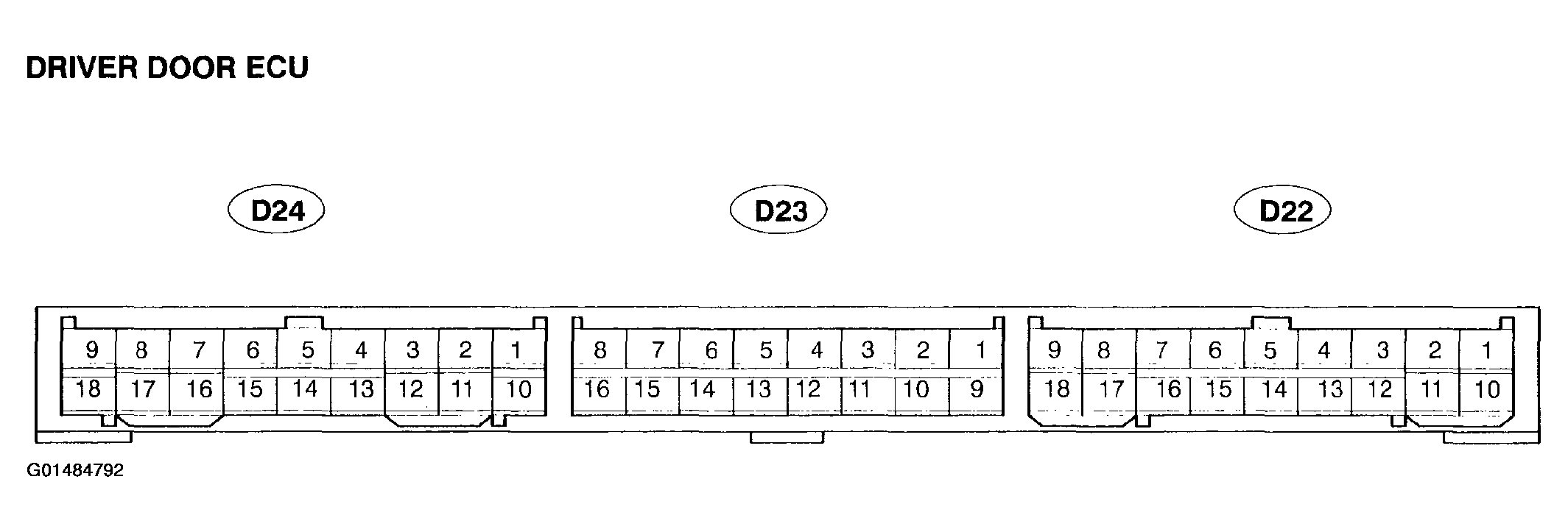

Fig 1: Identifying Terminals Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

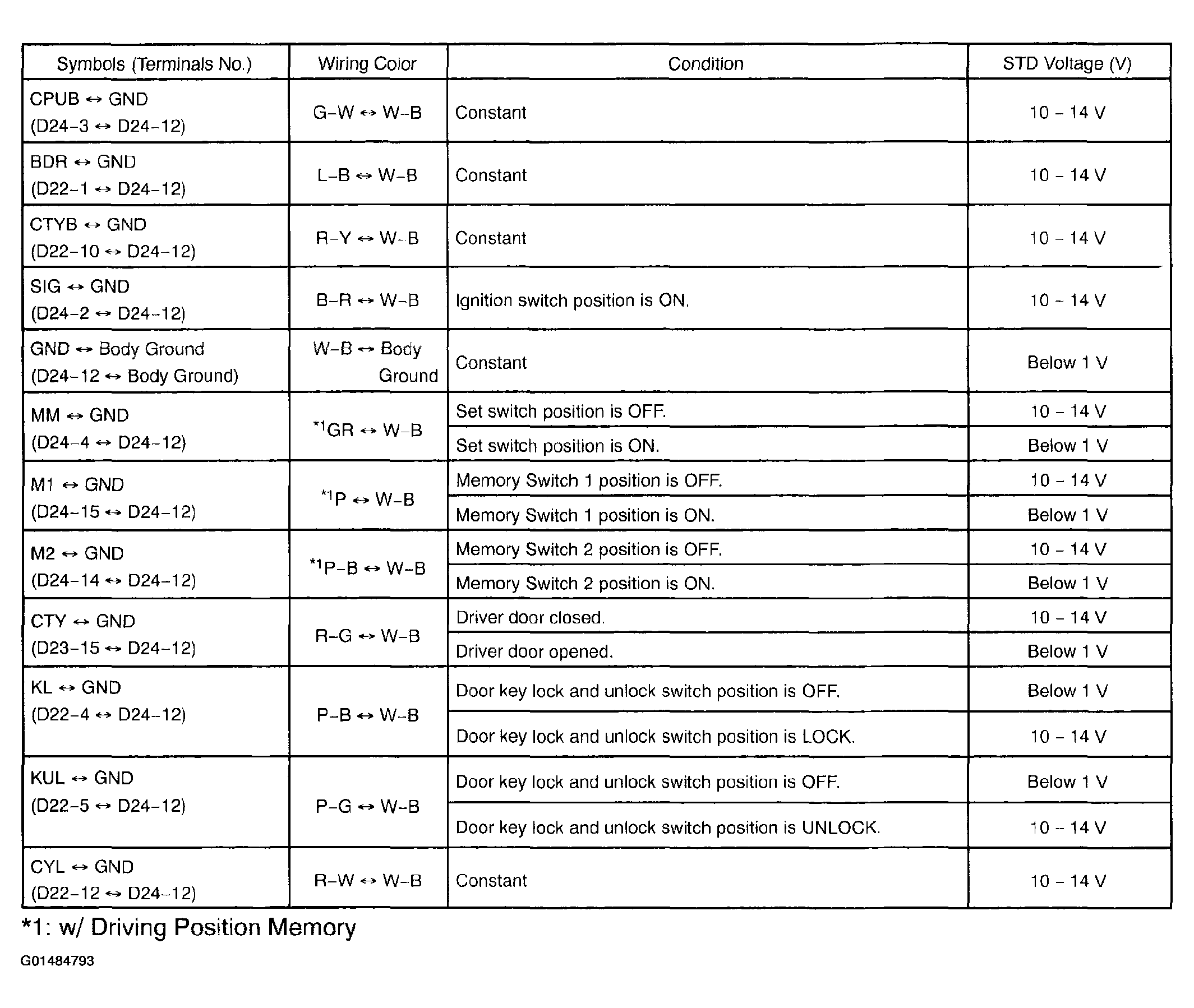

Fig 2: Symbols Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

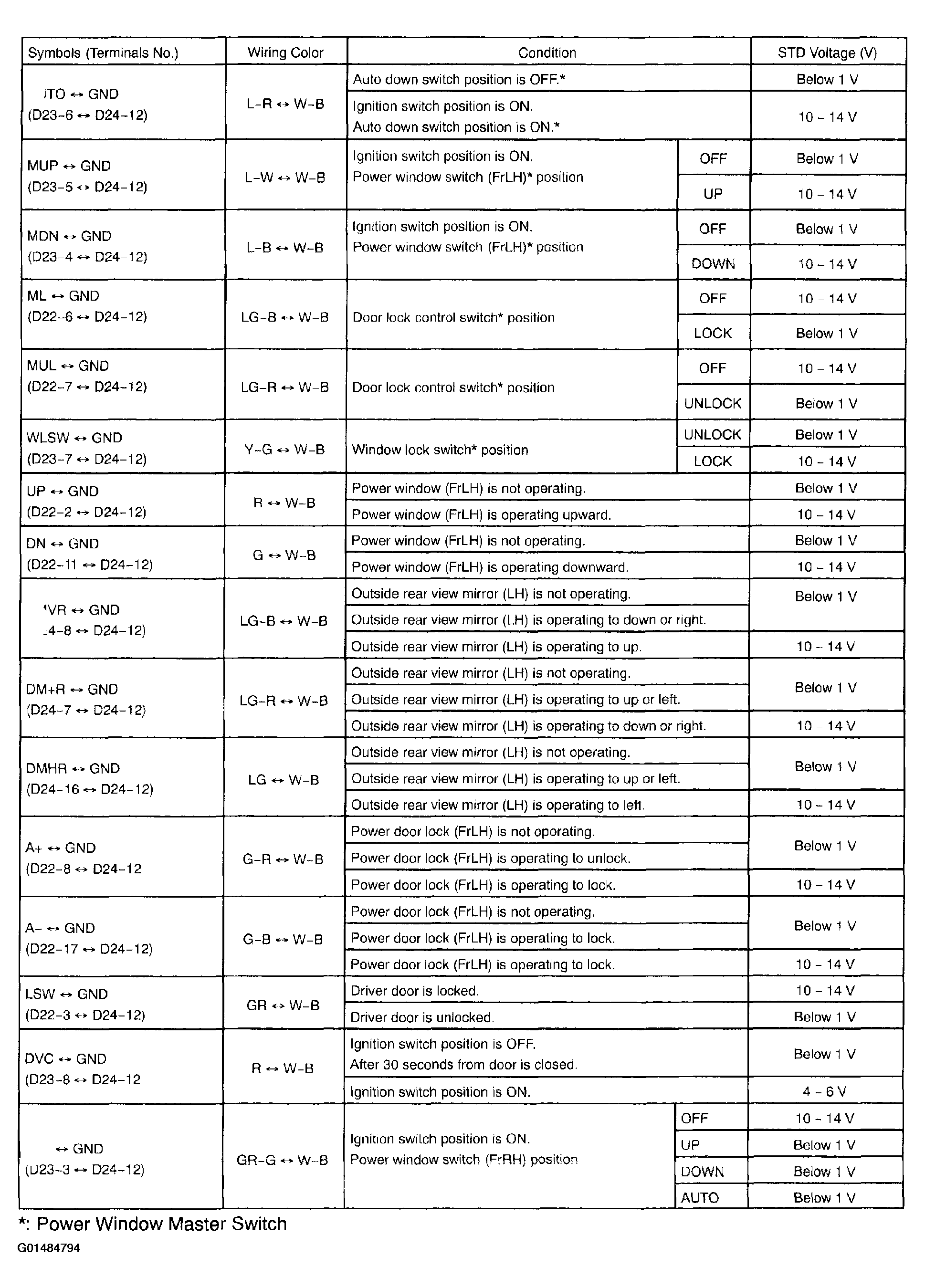

Fig 3: Symbols Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

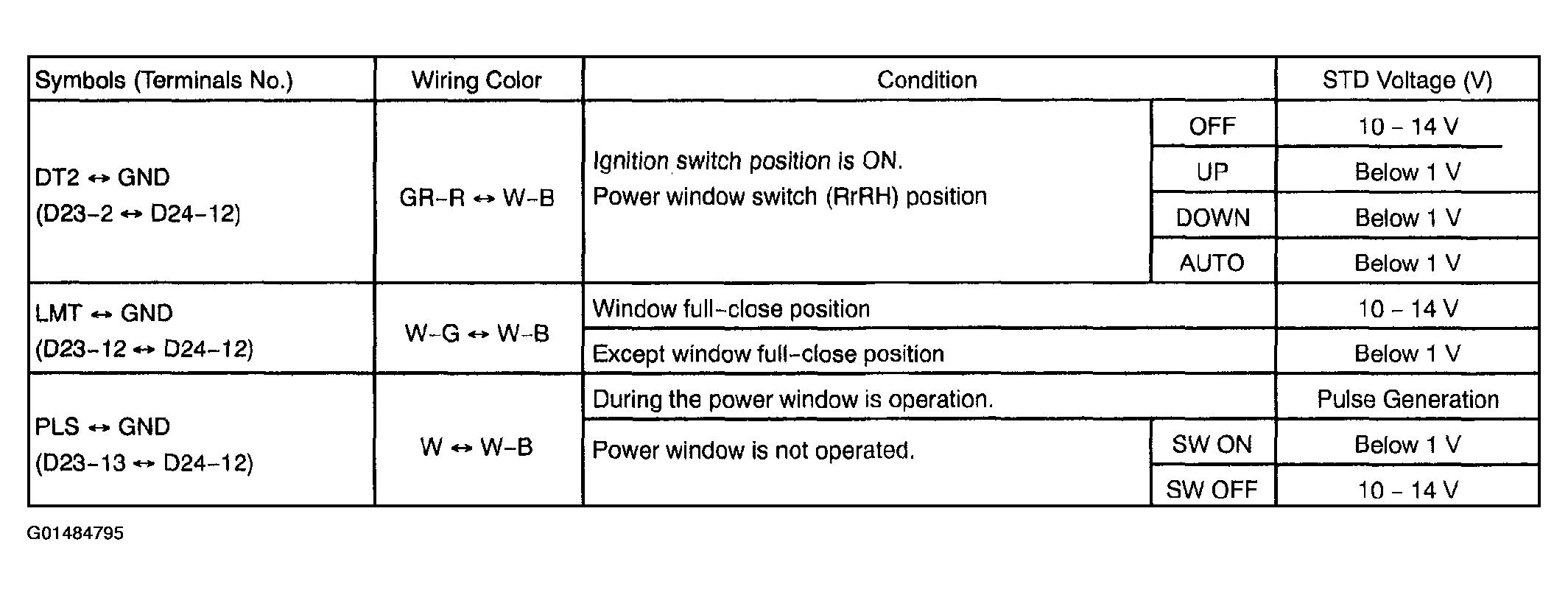

Fig 4: Symbols Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
