Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODE CHART

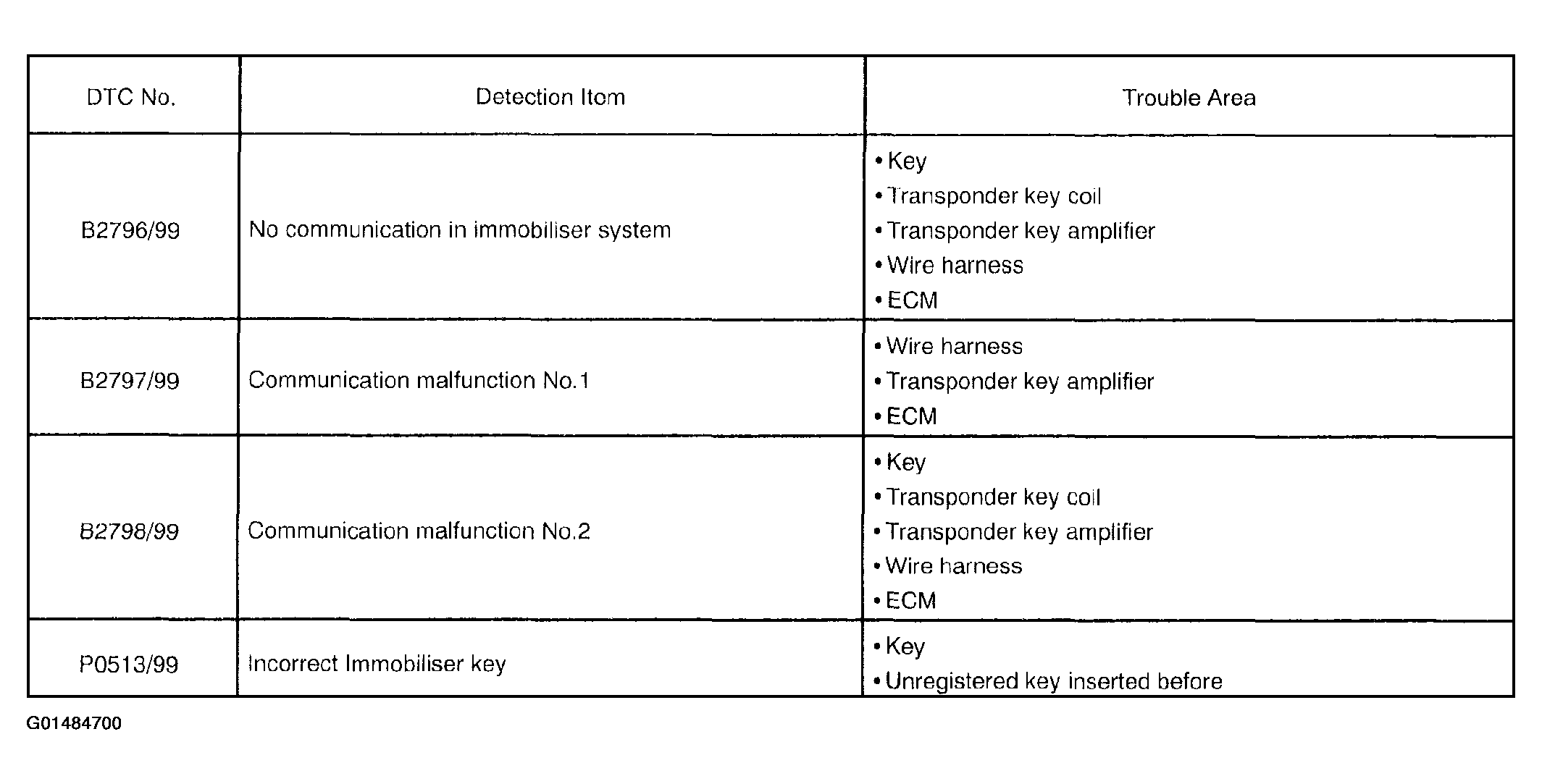

| DTC | Description |
|---|---|
| DTC B2796/99 | No Communication In Immobilizer System |
| DTC B2797/99 | Communication Malfunction No.1 |
| DTC B2798/99 | Communication Malfunction No.2 |
| DTC P0513/99 | Incorrect Immobilizer Key |
HINT:
To reduce the unnecessary exchange of ECM, check that a trouble occurs with the original ECM at the time of exchanging ECM and the trouble will disappear with a new ECM.
