Outside Rear View Mirror: Removal

REMOVE DOOR INSIDE HANDLE BEZEL COVER
Using a screwdriver, pry upward the door inside handle bezel cover.

HINT:

Tape the screwdriver tip before use.

Fig 1: Identifying Door Handle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR TRIM
1. Remove the 8 screws.
2. Using a screwdriver, remove the door trim by pulling the whole trim up.
  HINT:

  Tape the screwdriver tip before use.

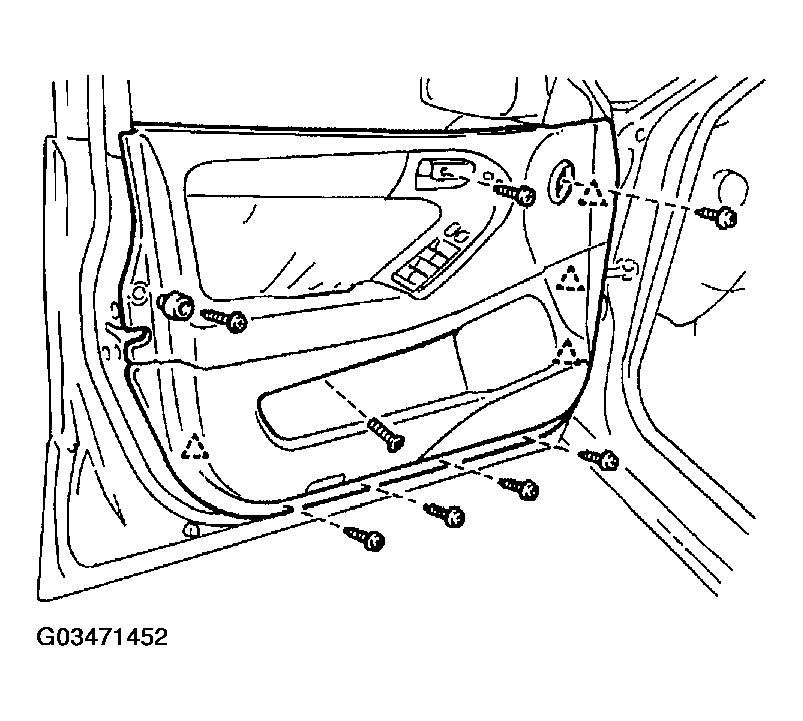

  Fig 2: Removing Door Trim
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 cables from the door inside handle.
4. Disconnect the connector.

  Fig 3: Identifying Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR FRAME GARNISH
Remove the nut and door frame garnish.
REMOVE TWEETER SPEAKER
Disconnect the connector and remove the tweeter speaker.
REMOVE OUTSIDE REAR VIEW MIRROR
Disconnect the connector, then remove the 3 bolts and outside rear view mirror.

Fig 4: Removing Outside Rear View Mirror
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
