Heated Oxygen Sensor: Components

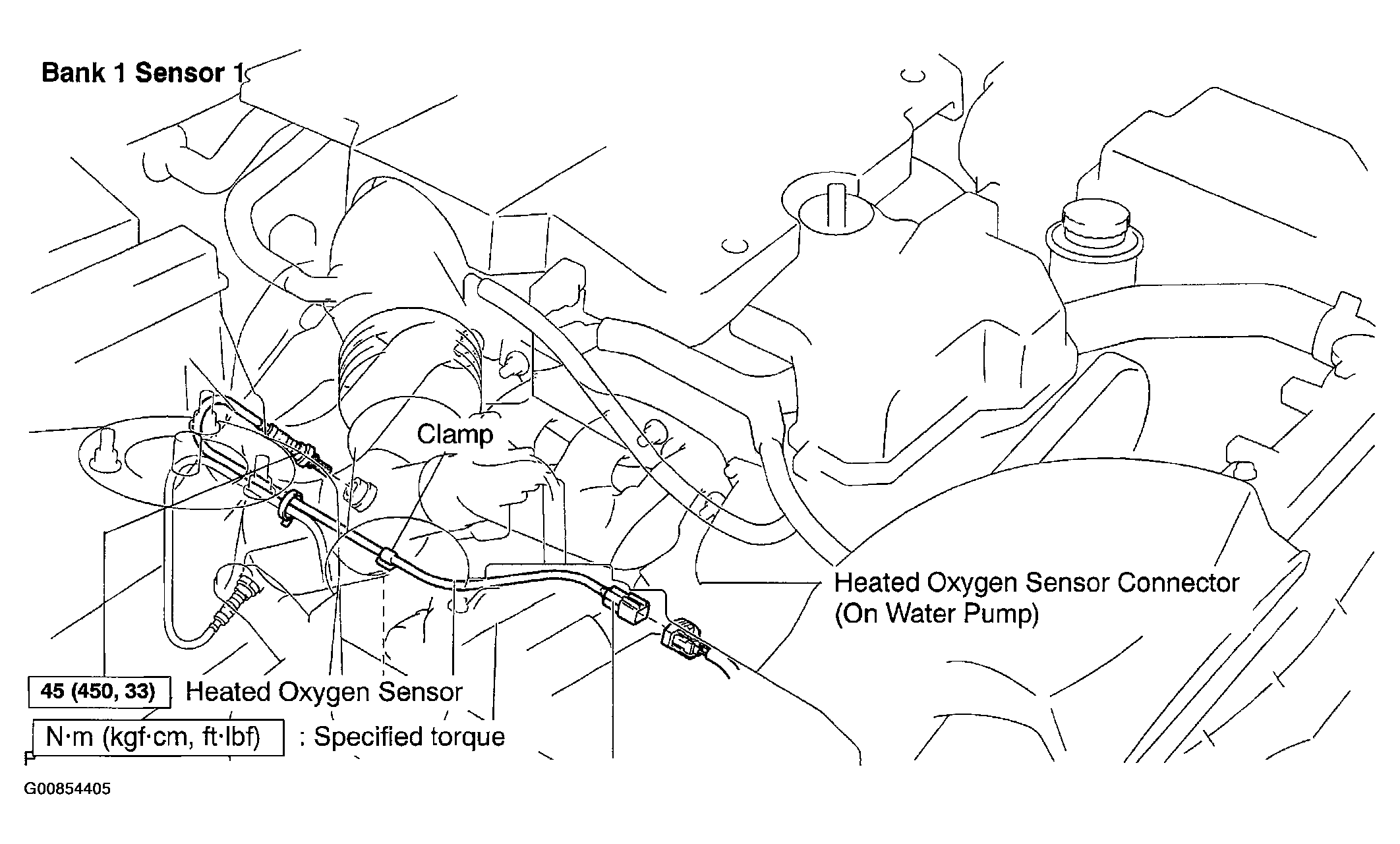

Fig 1: Identifying Heated Oxygen Sensor Components (Bank 1 Sensor 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

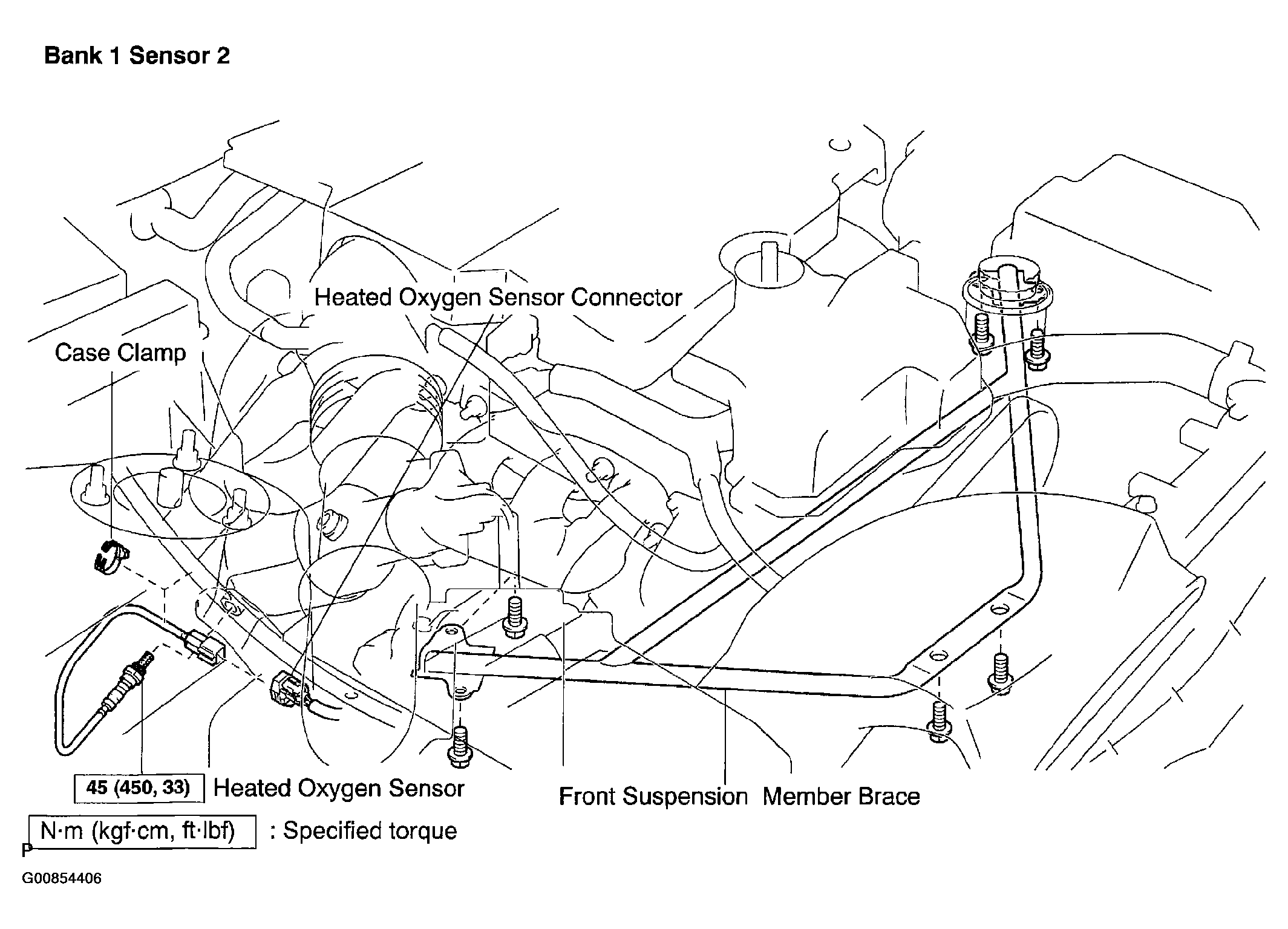

Fig 2: Identifying Heated Oxygen Sensor Components (Bank 1 Sensor 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

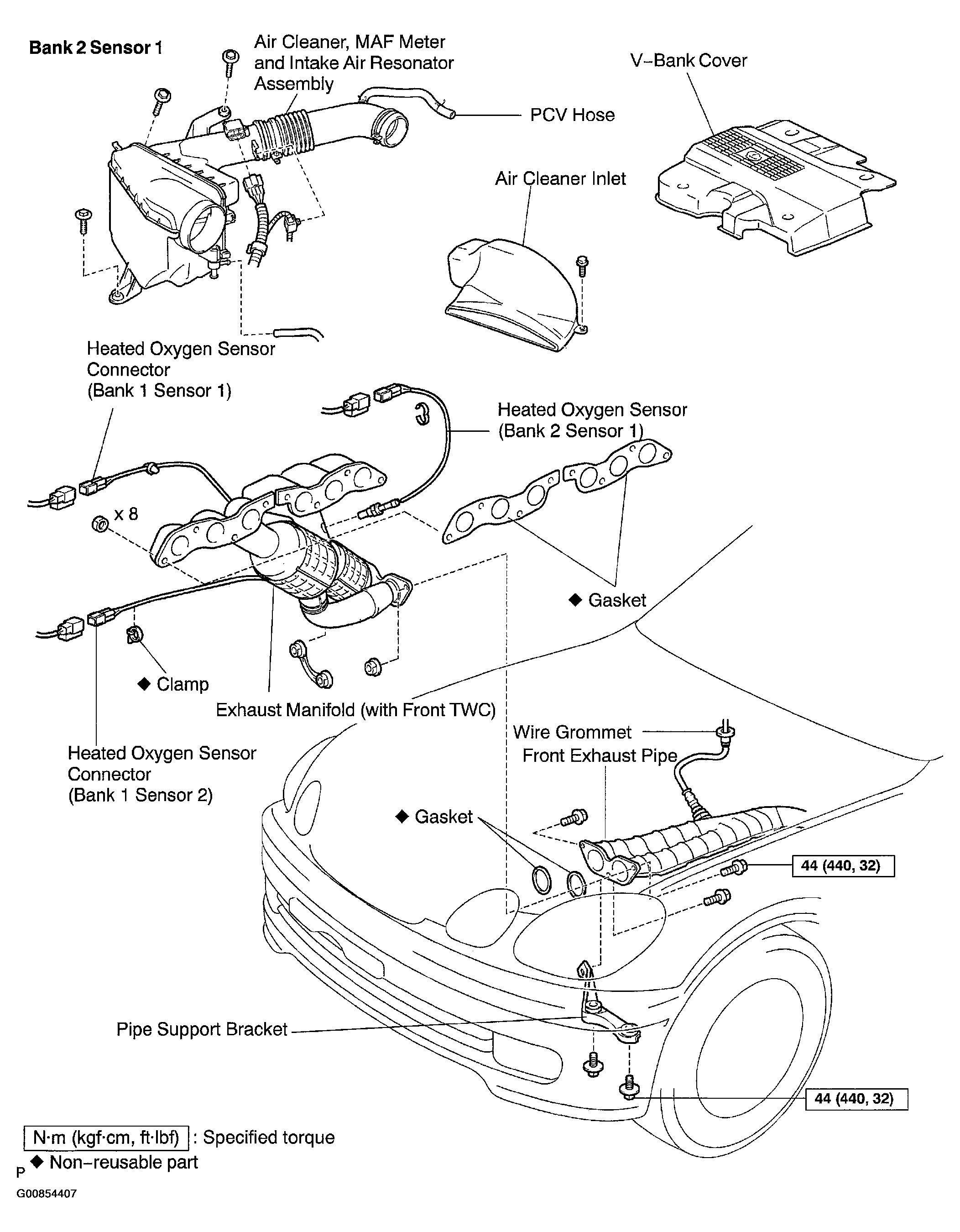

Fig 3: Identifying Heated Oxygen Sensor Components (Bank 2 Sensor 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

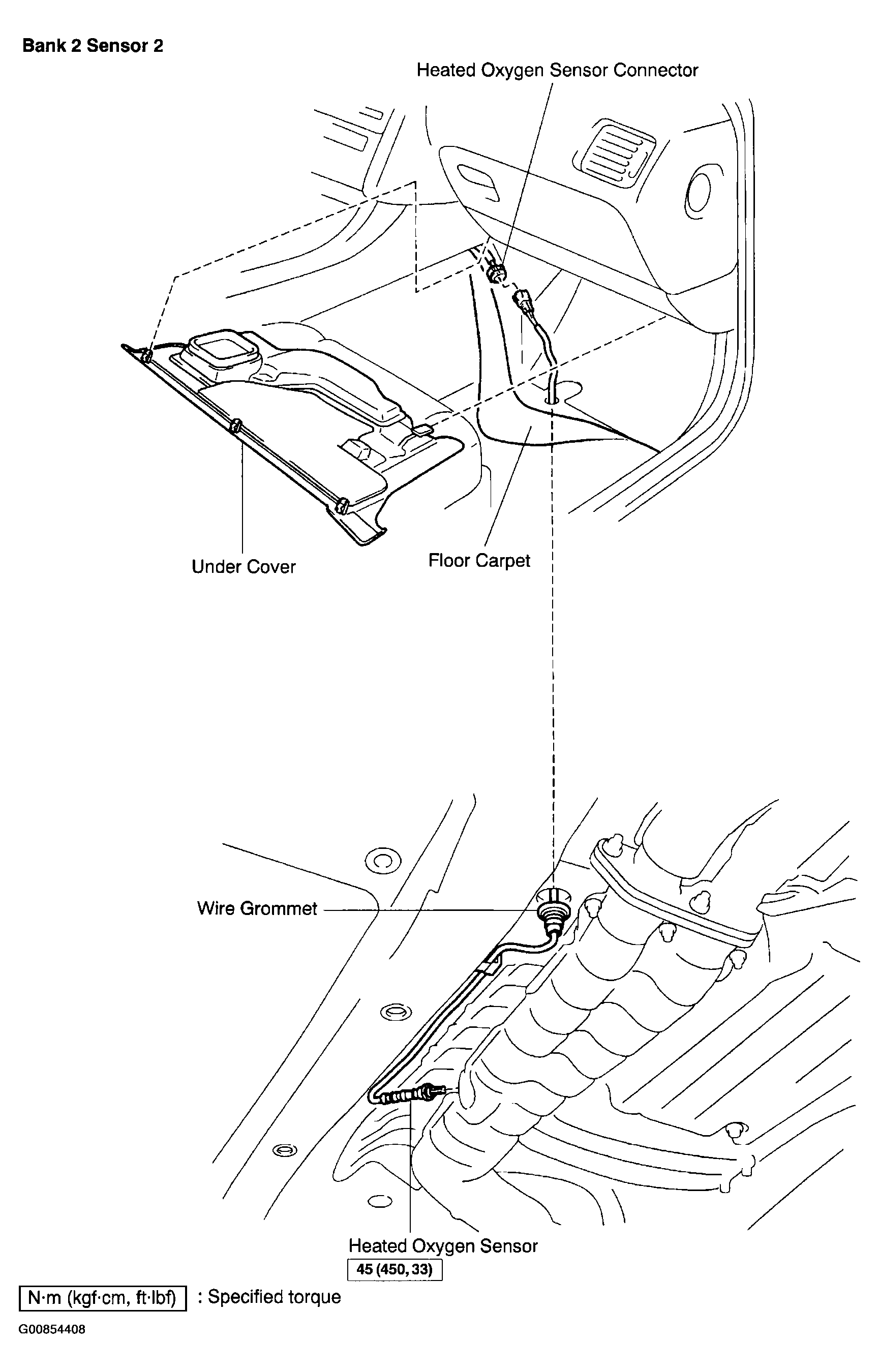

Fig 4: Identifying Heated Oxygen Sensor Components (Bank 2 Sensor 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
