Home › Lexus › 2004 › GS 300 › Repair and Diagnosis › Engine Performance › Fuel Delivery › SFI System (2JZ-GE) › Injector › Components

SFI System (2JZ-GE): Injector: Components

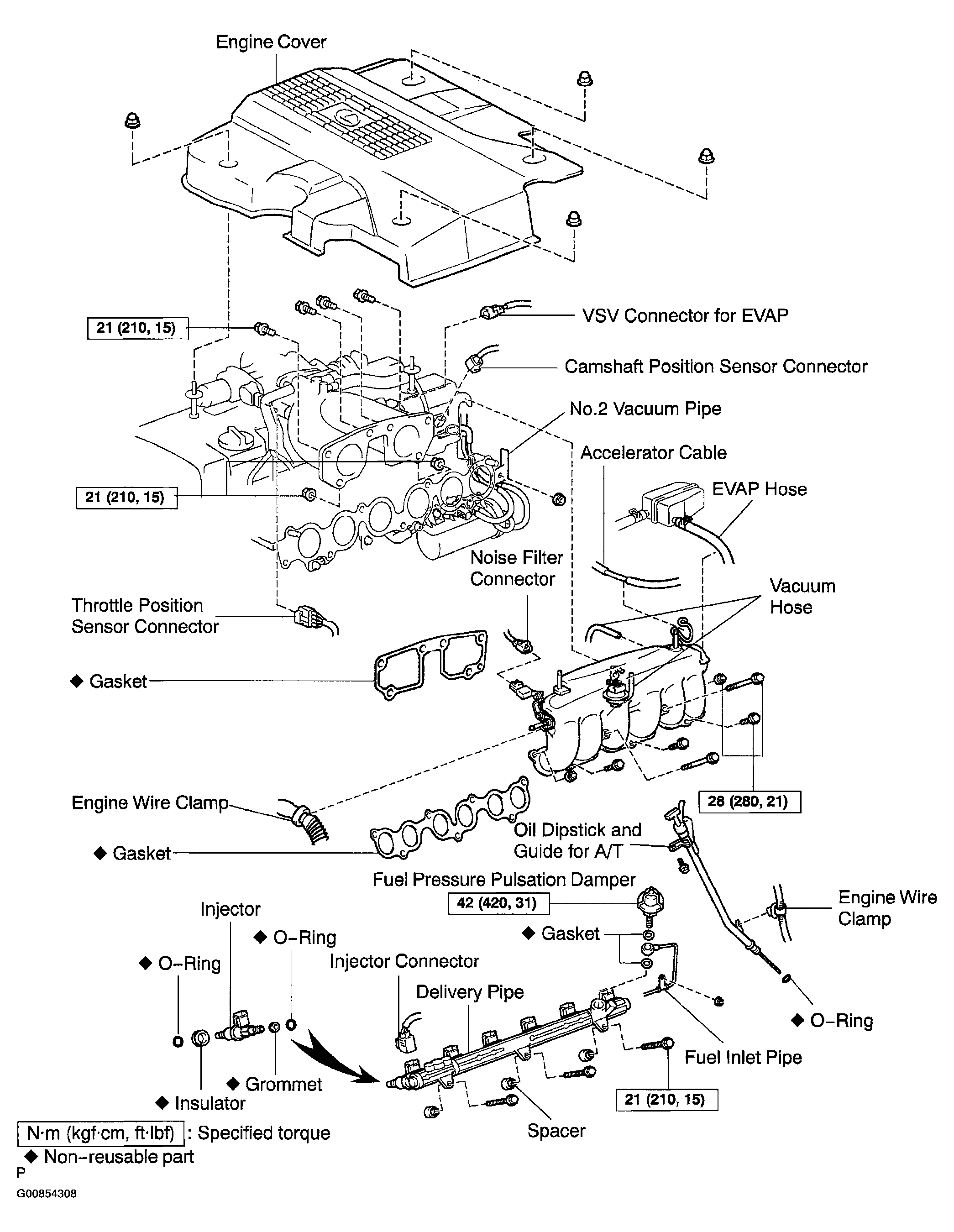

Fig 1: Identifying Injector Components
G00854308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
