Throttle Body: Components

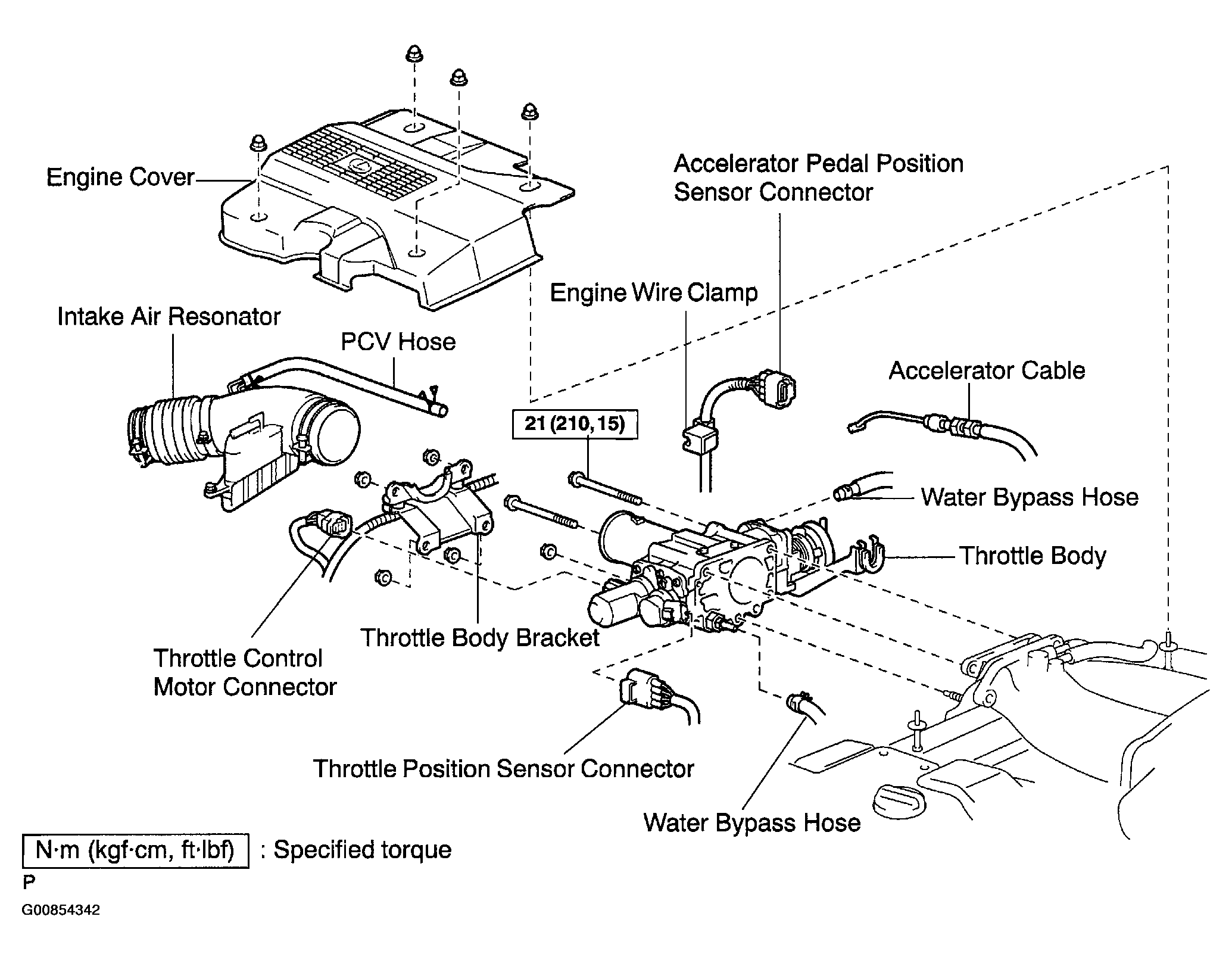

Fig 1: Identifying Throttle Body Component (1 Of 2)
G00854342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

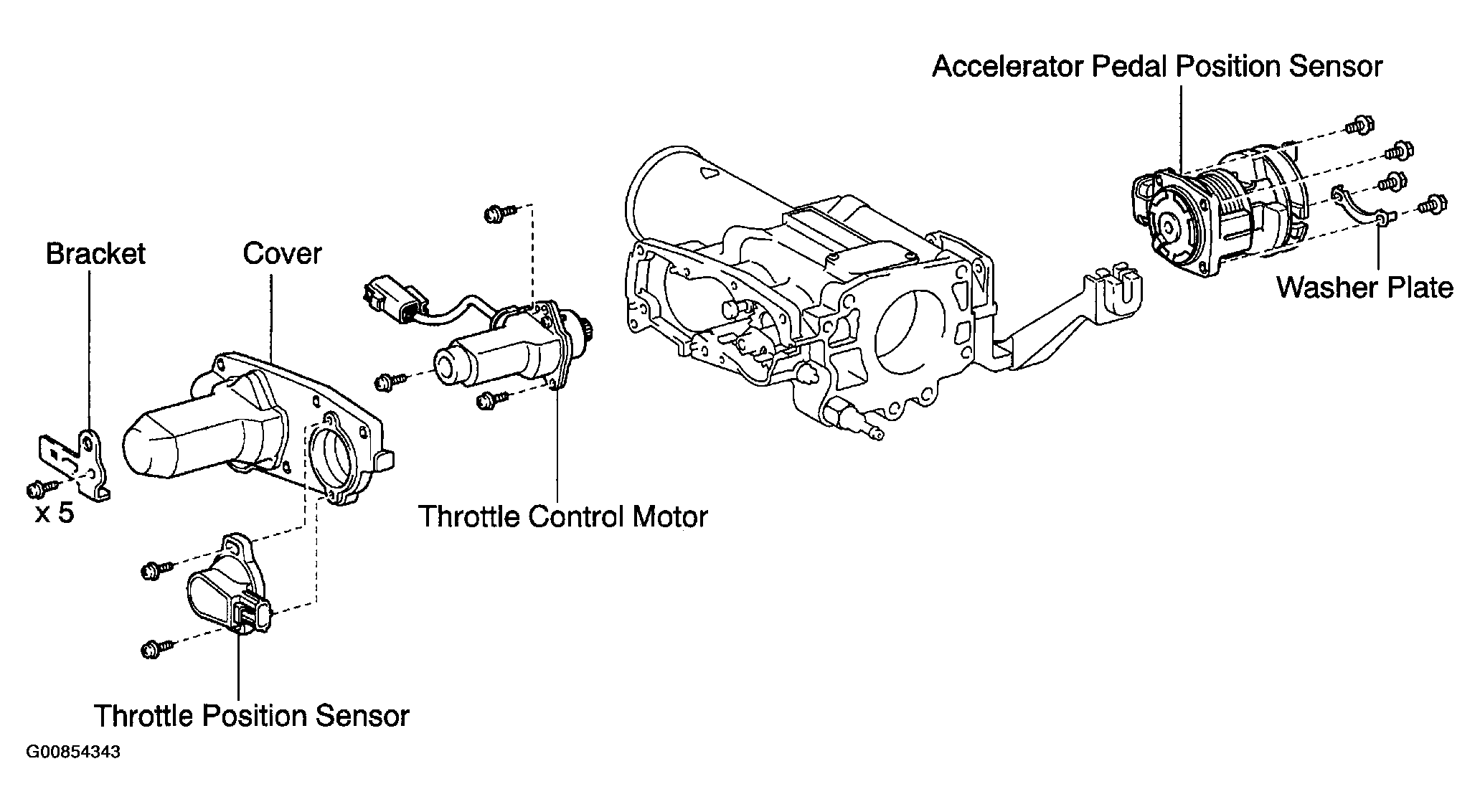

Fig 2: Identifying Throttle Body Component (2 Of 2)
G00854343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
