Crankshaft Position Sensor: Removal

REMOVE GENERATOR (See GENERATOR )
DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
1. Disconnect the sensor connector.
2. Remove the bolt holding the connector bracket to the water pump.
REMOVE CRANKSHAFT POSITION SENSOR

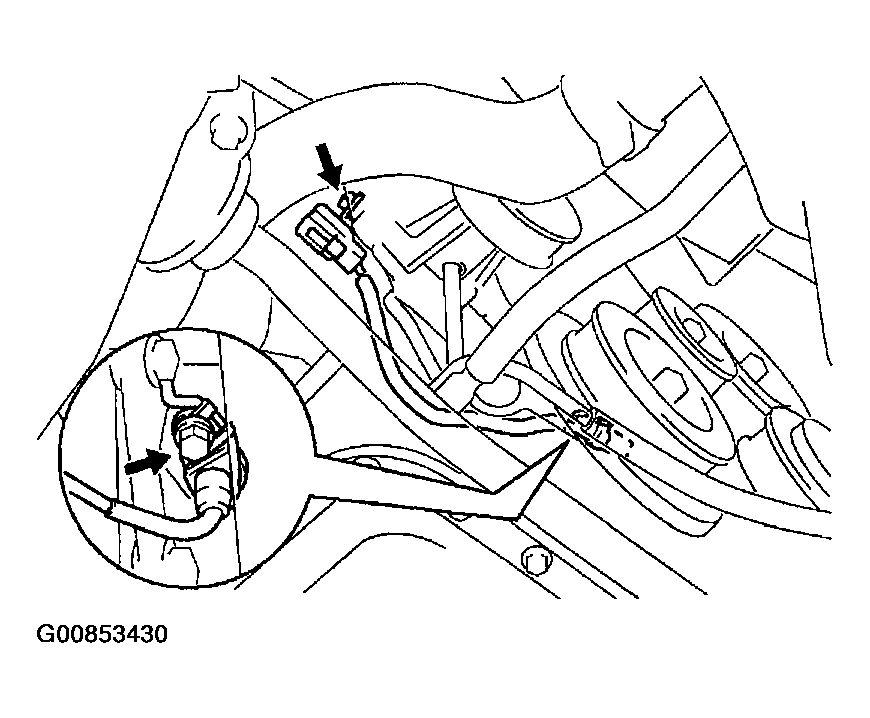

Fig 1: Removing Crankshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and crankshaft position sensor.
  Torque: 9.0 N.m (90 kgf.Cm, 80 in.lbf)
2. Remove the connector bracket from the connector.
