Home
›
Lexus
›
2004
›
GS 430
›
Repair and Diagnosis
›
Accessories & Equipment
›
Anti-Theft Systems
›
Power Door Lock Control System
›
Location
Power Door Lock Control System: Location

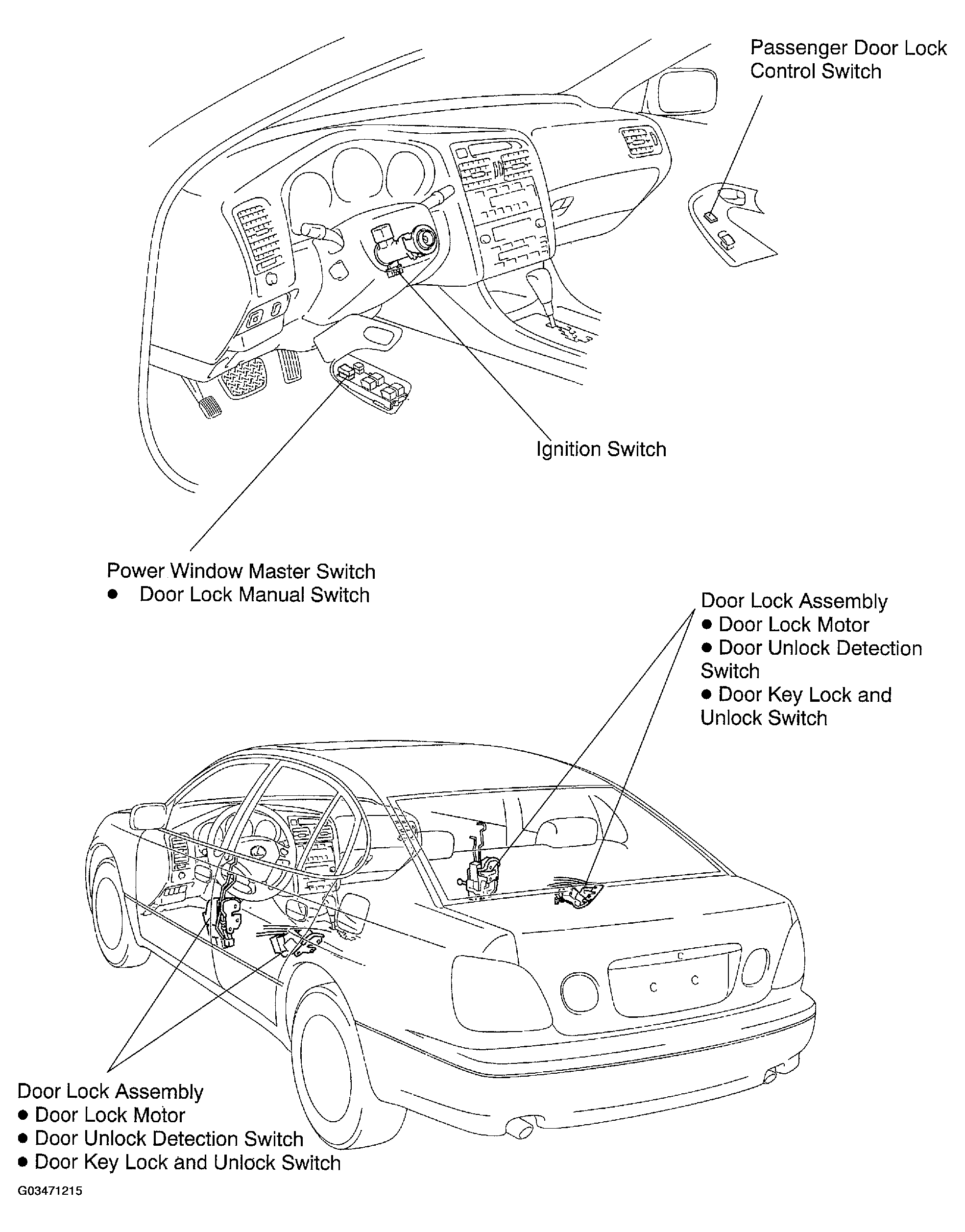

Fig 1: Locating Power Door Lock Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
