Lexus
›
2004
›
GS 430
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Driver Door Control System
›
Circuit Inspection
›
Power source circuit
›
Wiring Diagram
Power source circuit: Wiring Diagram

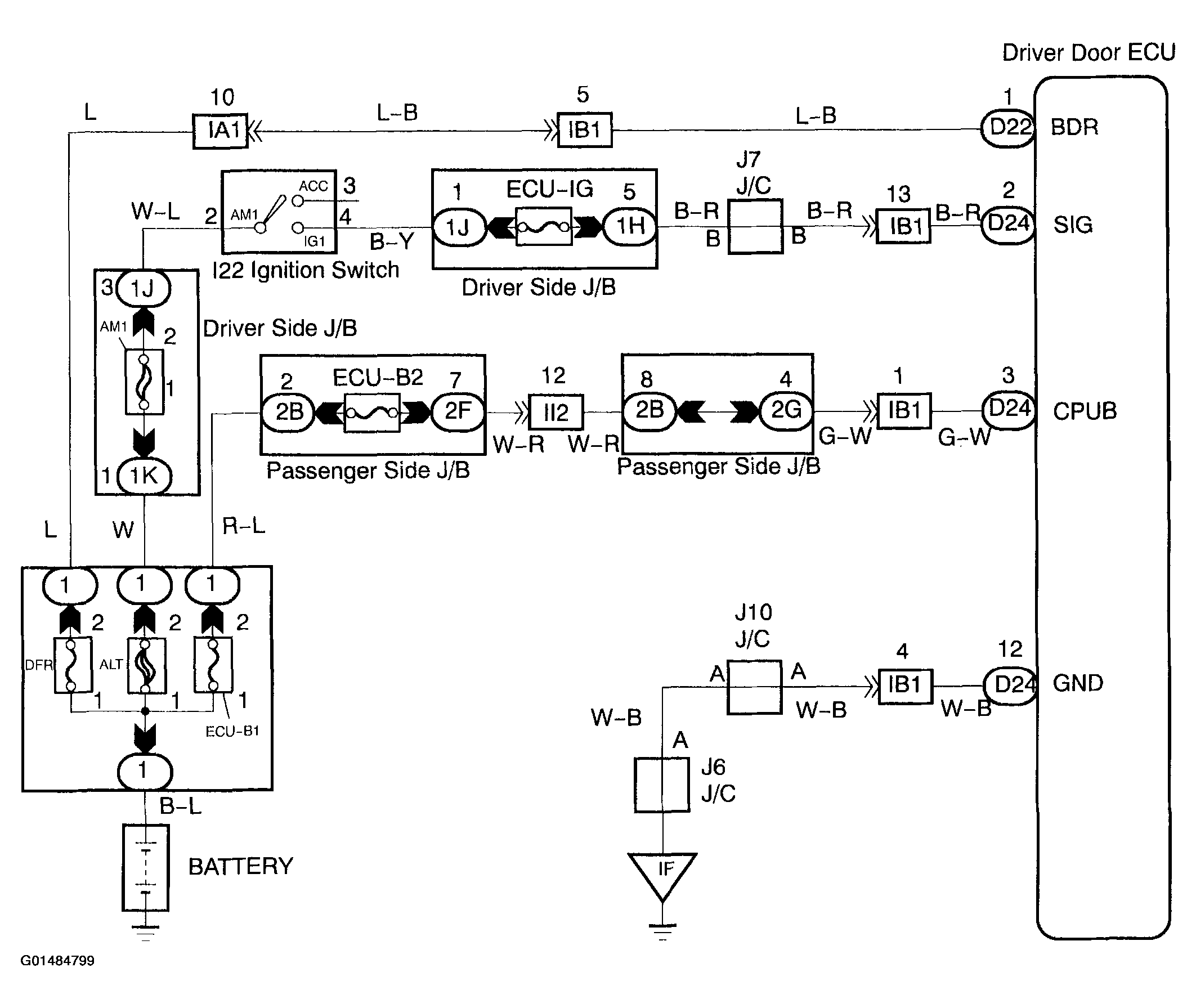

Fig 1: Power Source Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
