Acoustic Control Induction System (ACIS): Components

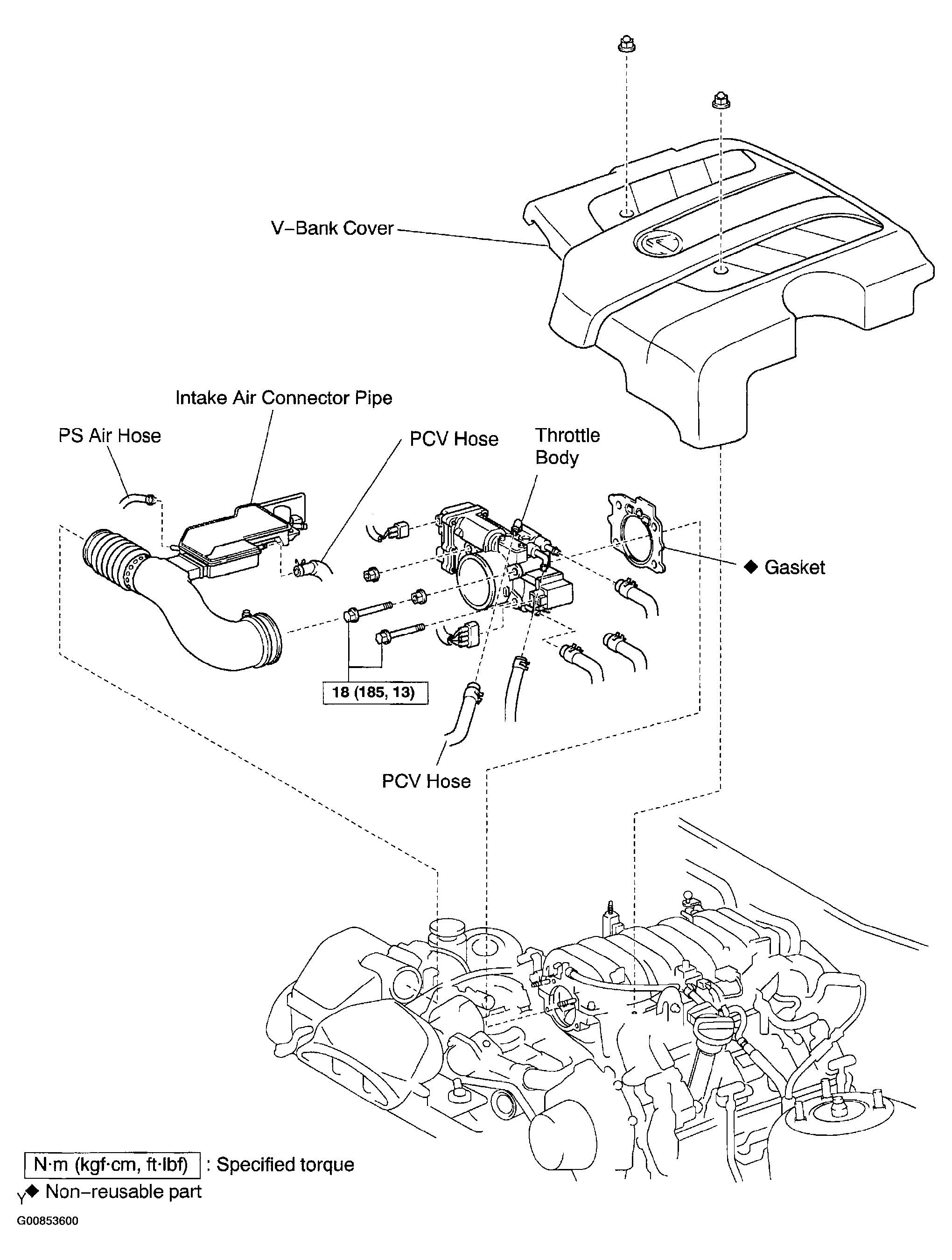

Fig 1: Exploded View Of Acoustic Control Induction System (ACIS) Components (1 Of 4)
G00853600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

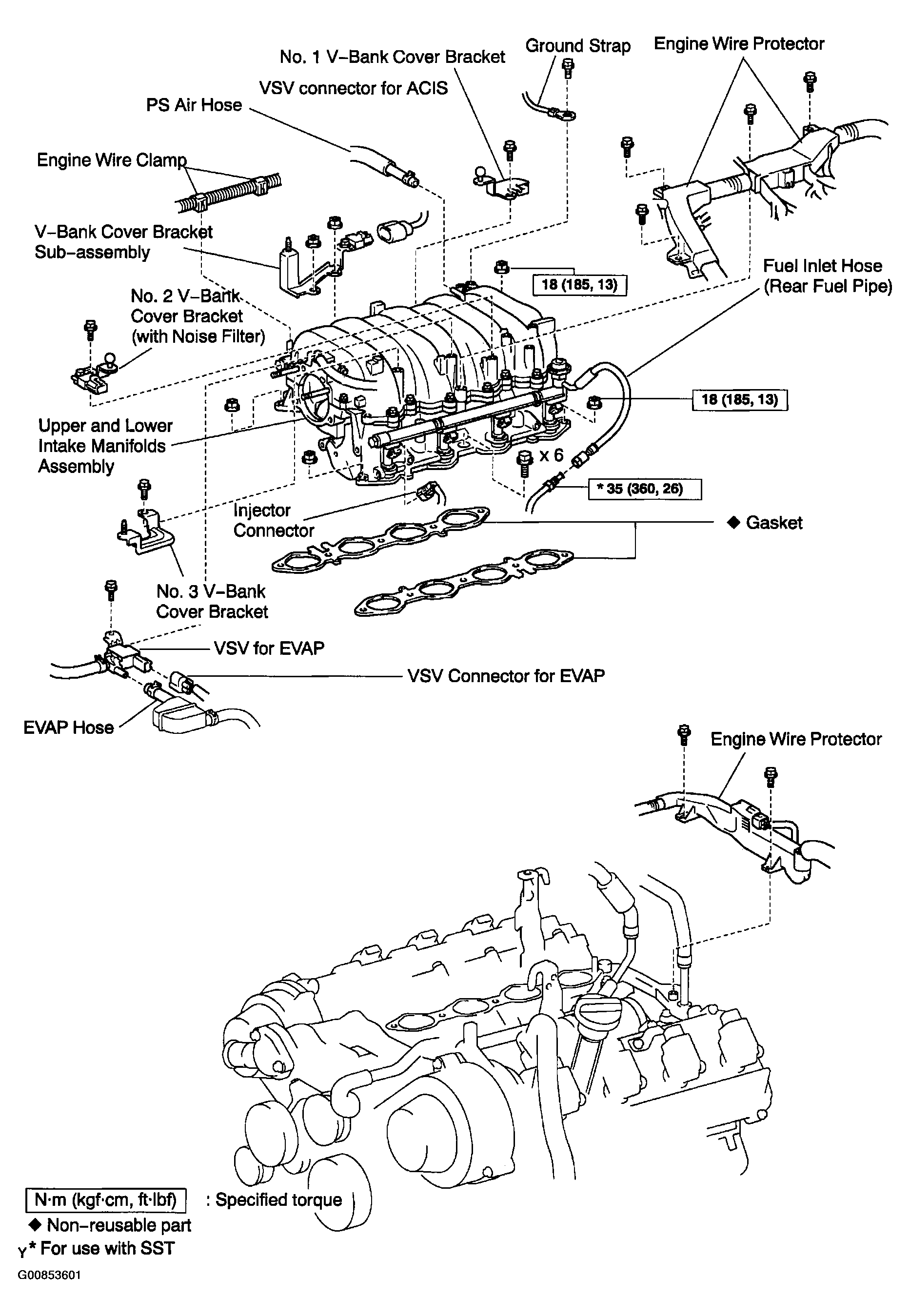

Fig 2: Exploded View Of Acoustic Control Induction System (ACIS) Components (2 Of 4)
G00853601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

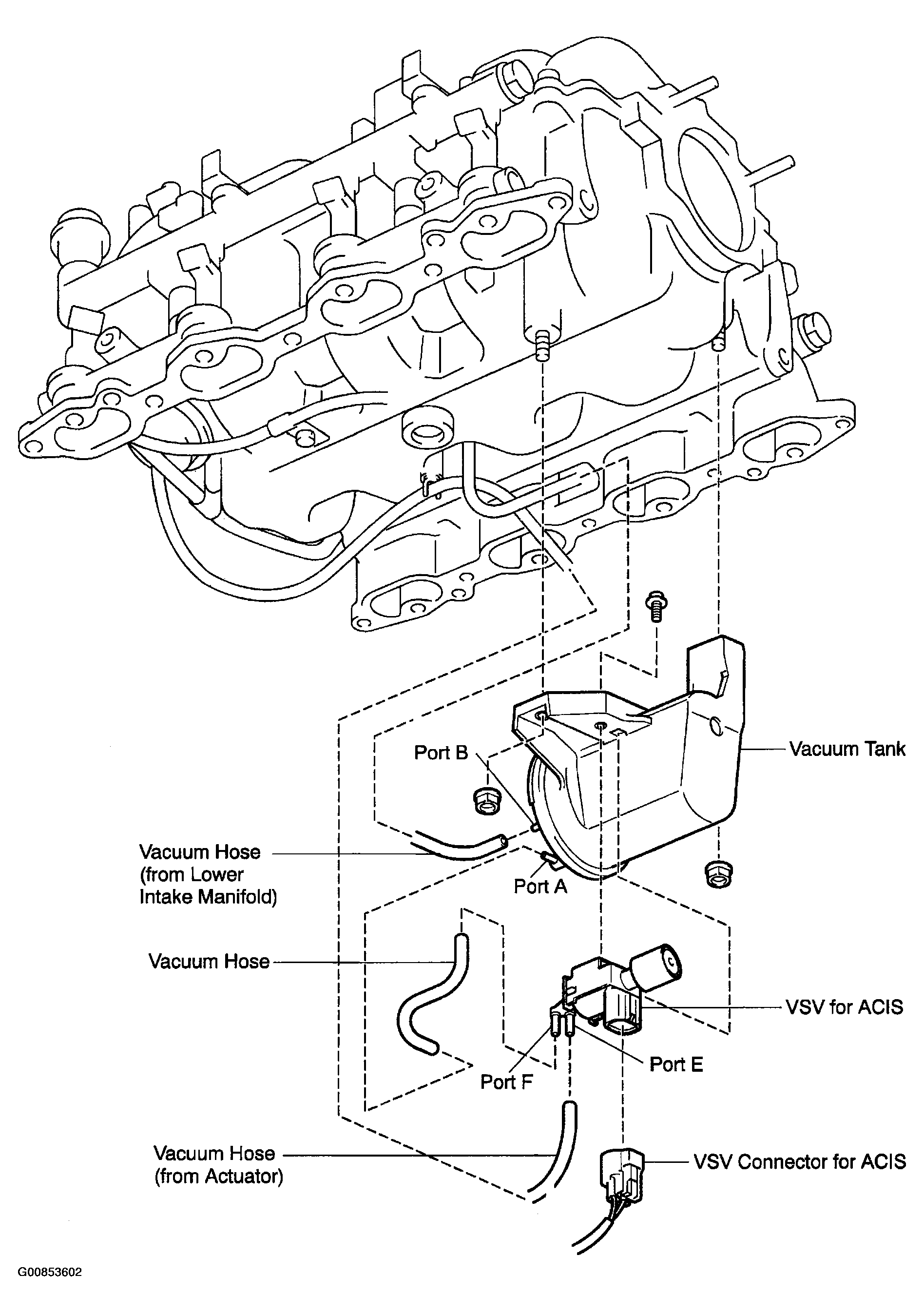

Fig 3: Exploded View Of Acoustic Control Induction System (ACIS) Components (3 Of 4)
G00853602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

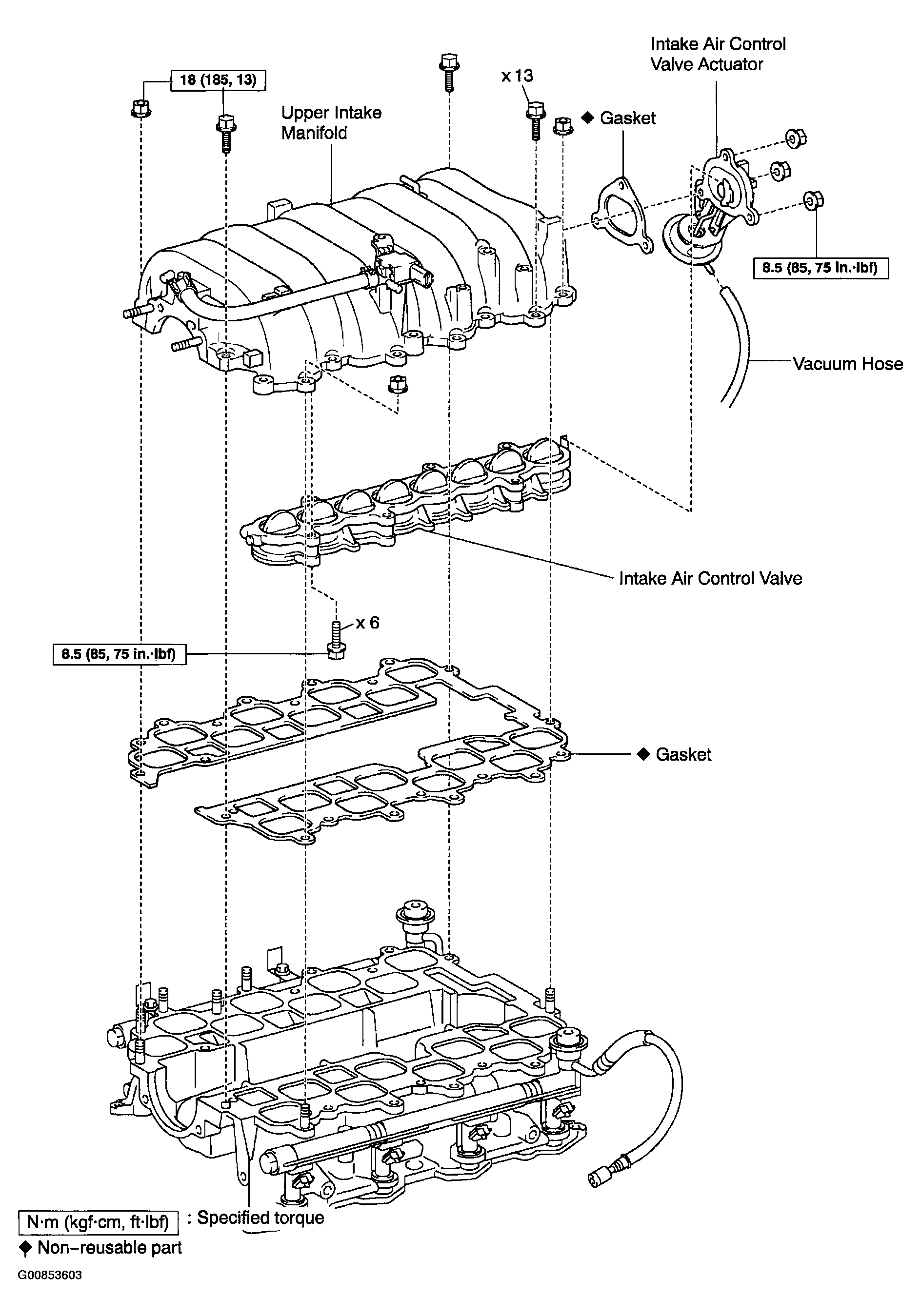

Fig 4: Exploded View Of Acoustic Control Induction System (ACIS) Components (4 Of 4)
G00853603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
