Engine Coolant Temperature (ECT) Sensor
›
Components
Engine Coolant Temperature (ECT) Sensor: Components

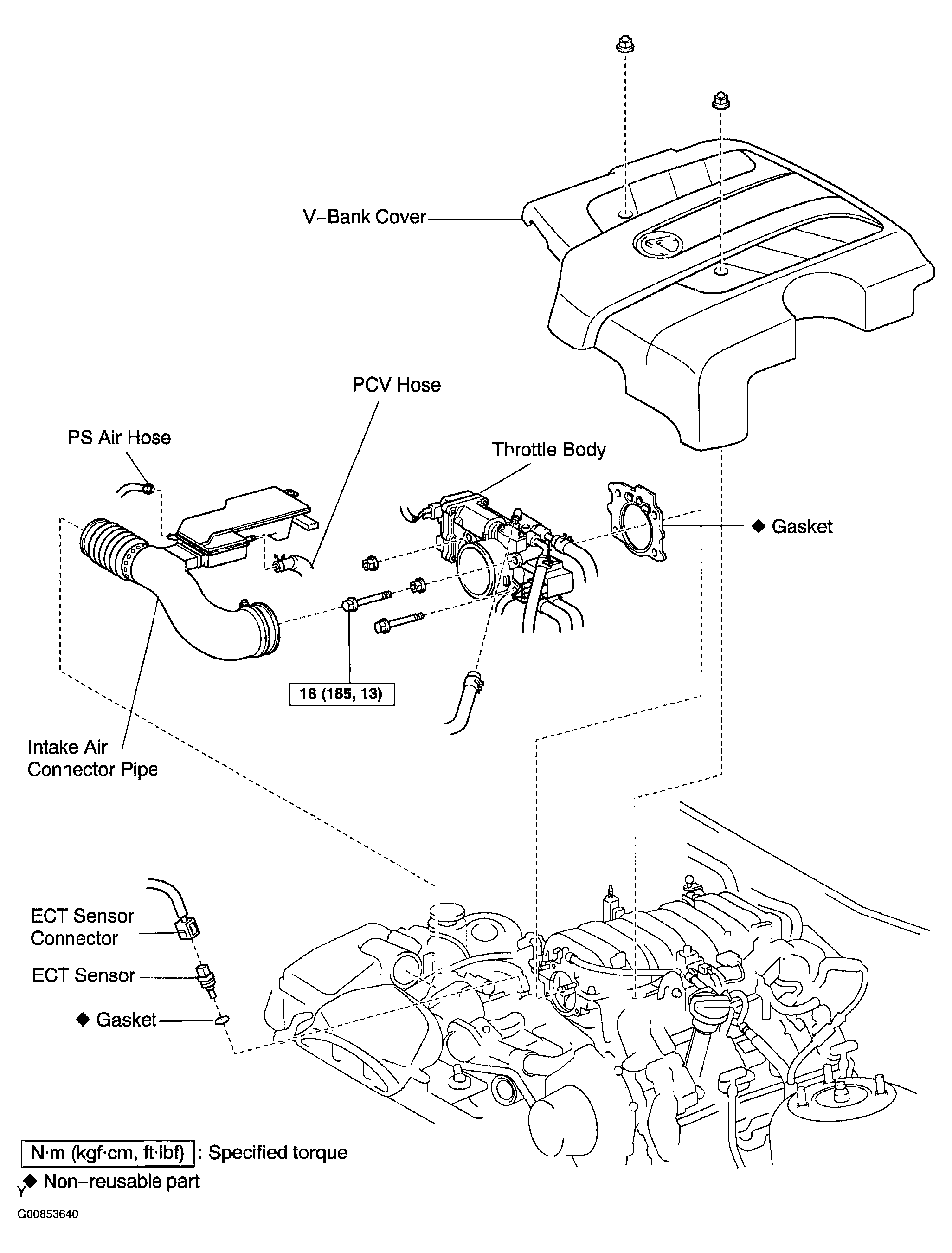

Fig 1: Identifying Engine Coolant Temperature (ECT) Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
