Fuel Tank And Line: Components

CAUTION:

• Always use new gaskets when replacing the fuel tank or component parts.
• Apply the proper torque to all parts tightened

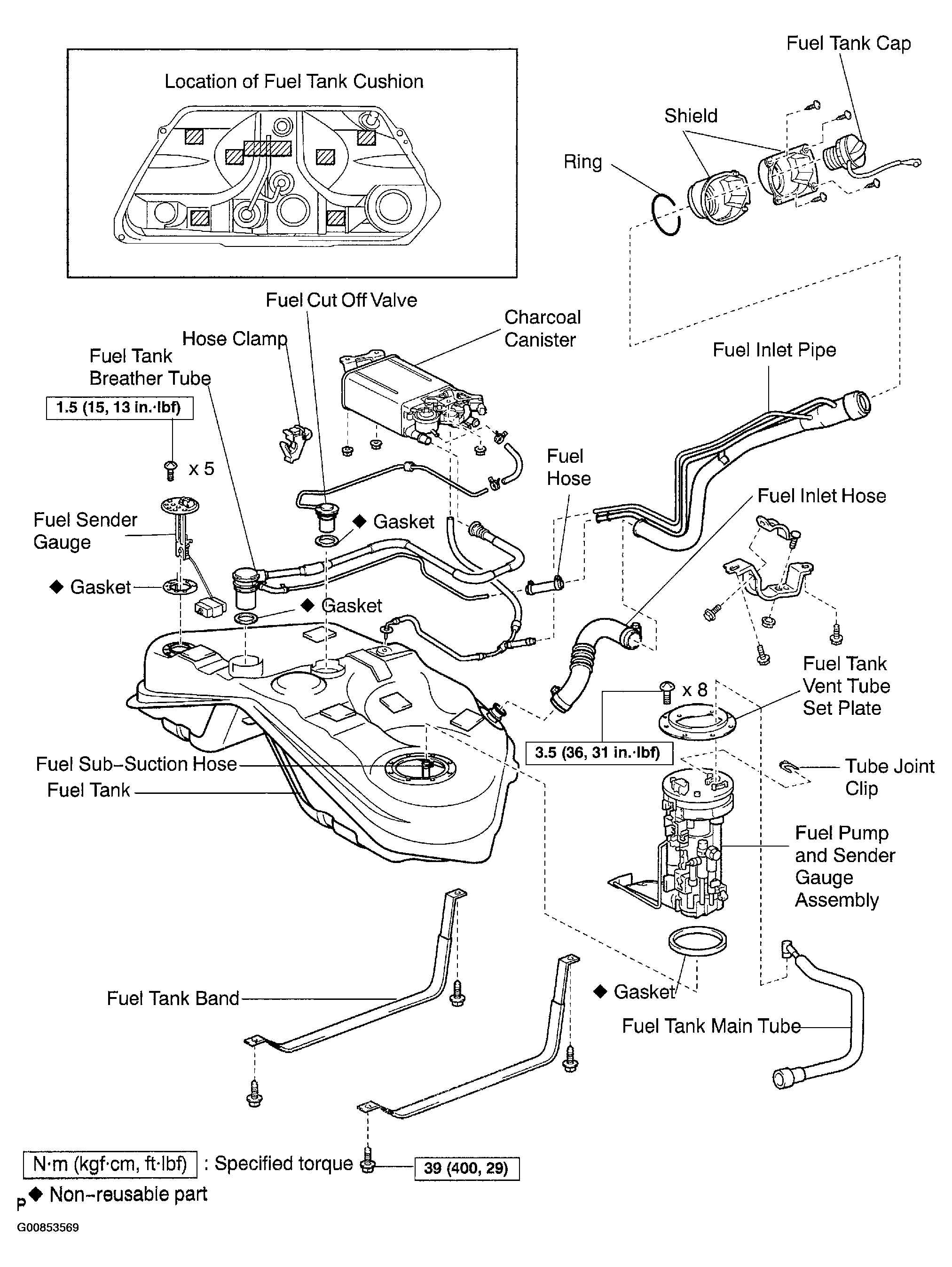

Fig 1: Identifying Fuel Tank & Line Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
