Fuel Tank And Line: Inspection

INSPECT FUEL TANK AND LINE

1. Check the fuel lines for cracks or leakage, and all connections for deformation.

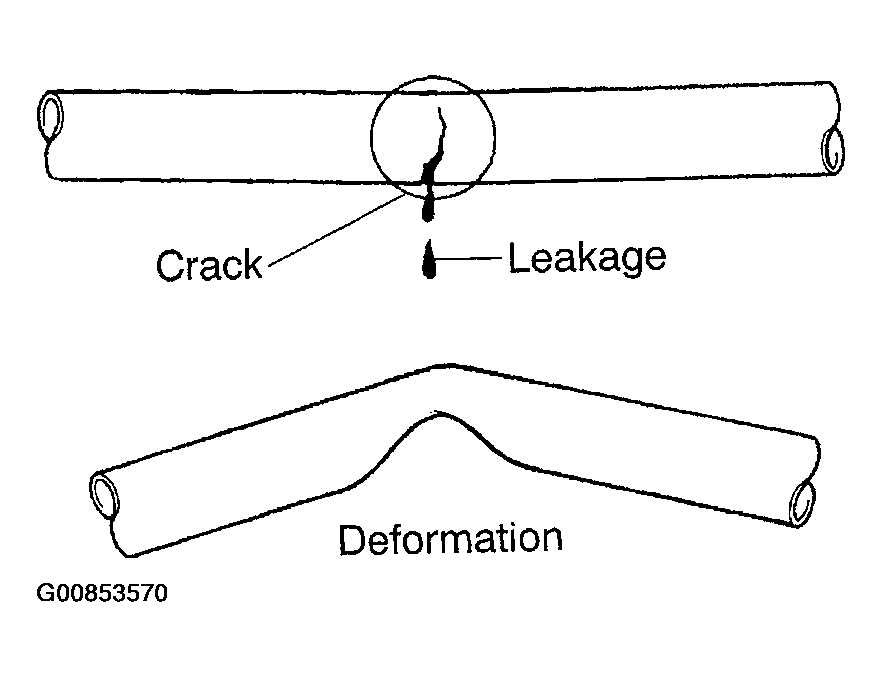

   Fig 1: Checking Fuel Lines For Cracks Or Leakage

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
   Fig 2: Checking Fuel Tank Vapor Vent System Hoses & Connections For Looseness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the filler neck for damage or fuel leakage.
5. Hose and pipe connections are as shown in the illustration.

   If a problem is found, repair or replace the parts as necessary.

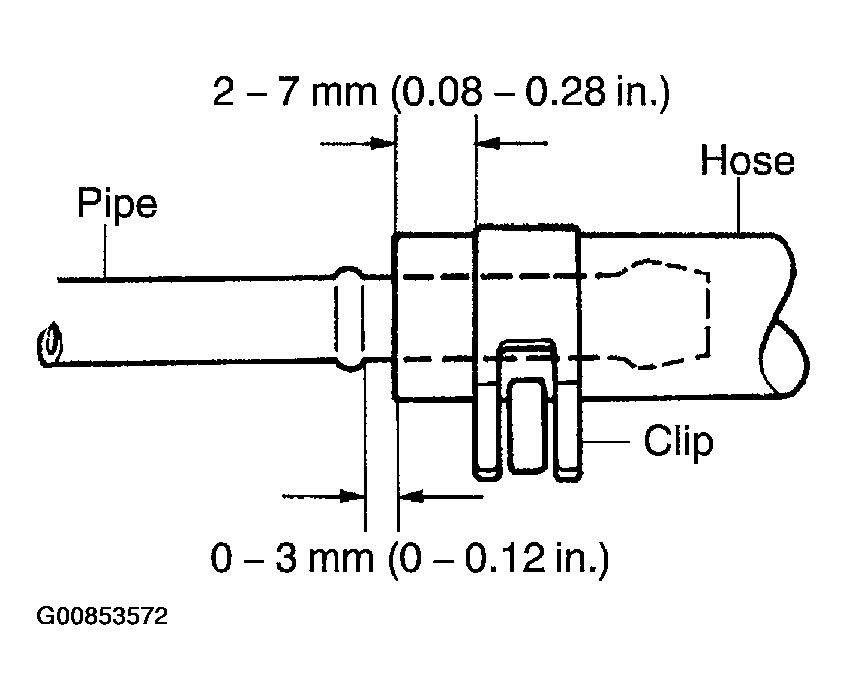

   Fig 3: Checking Hose & Pipe Connections

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
