Heated Oxygen Sensor: Components

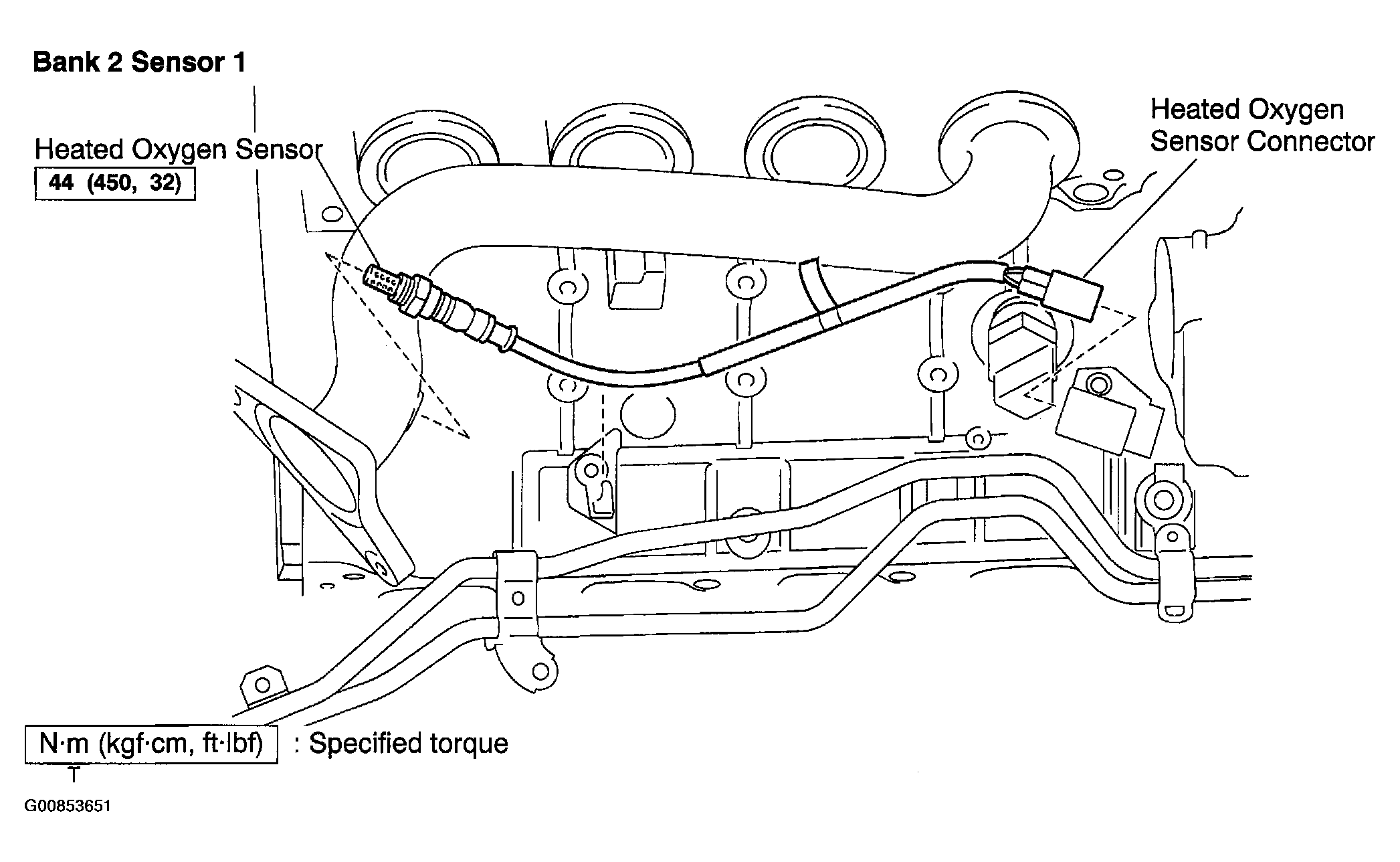

Fig 1: Identifying Heated Oxygen Sensor Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

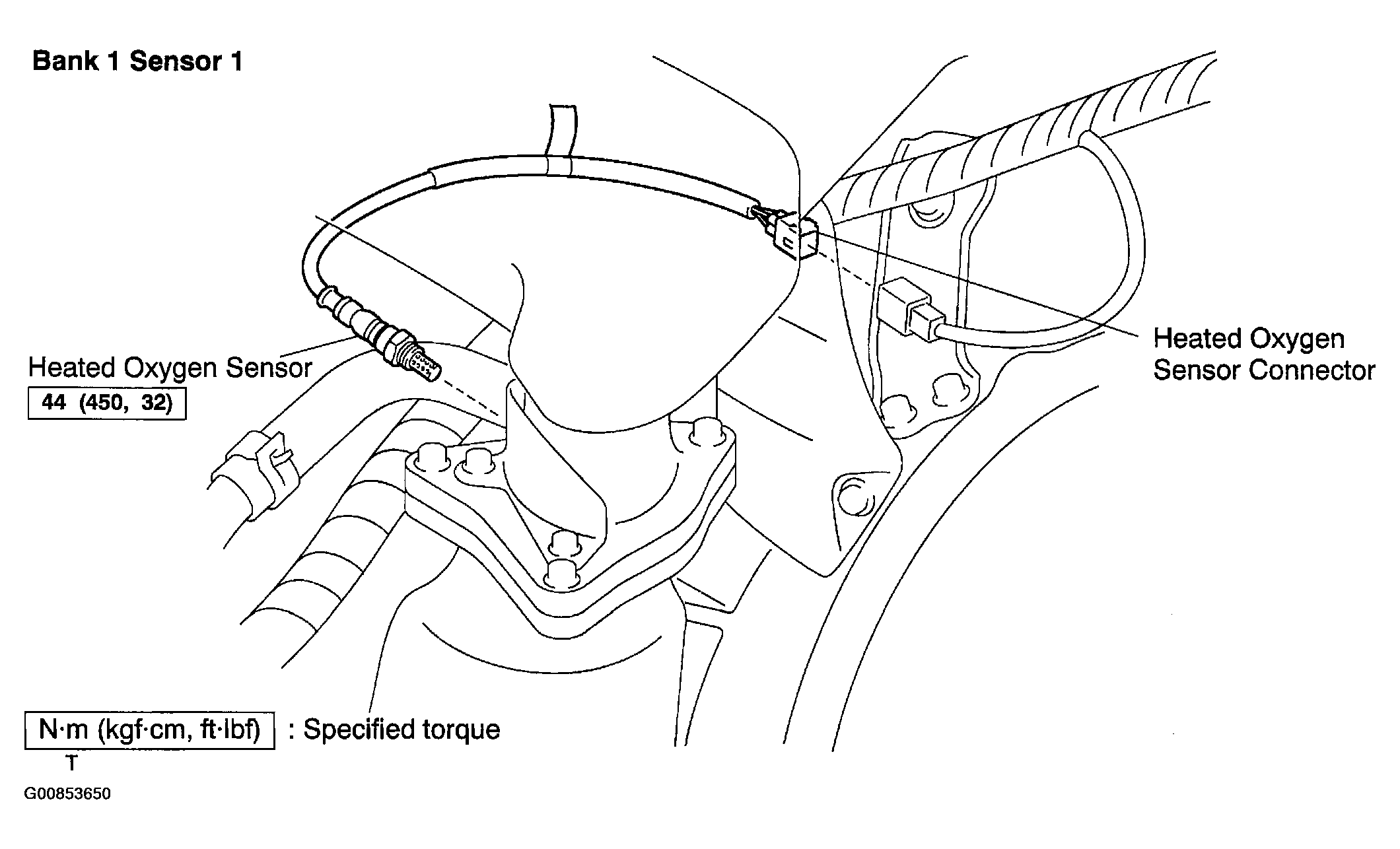

Fig 2: Identifying Heated Oxygen Sensor Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

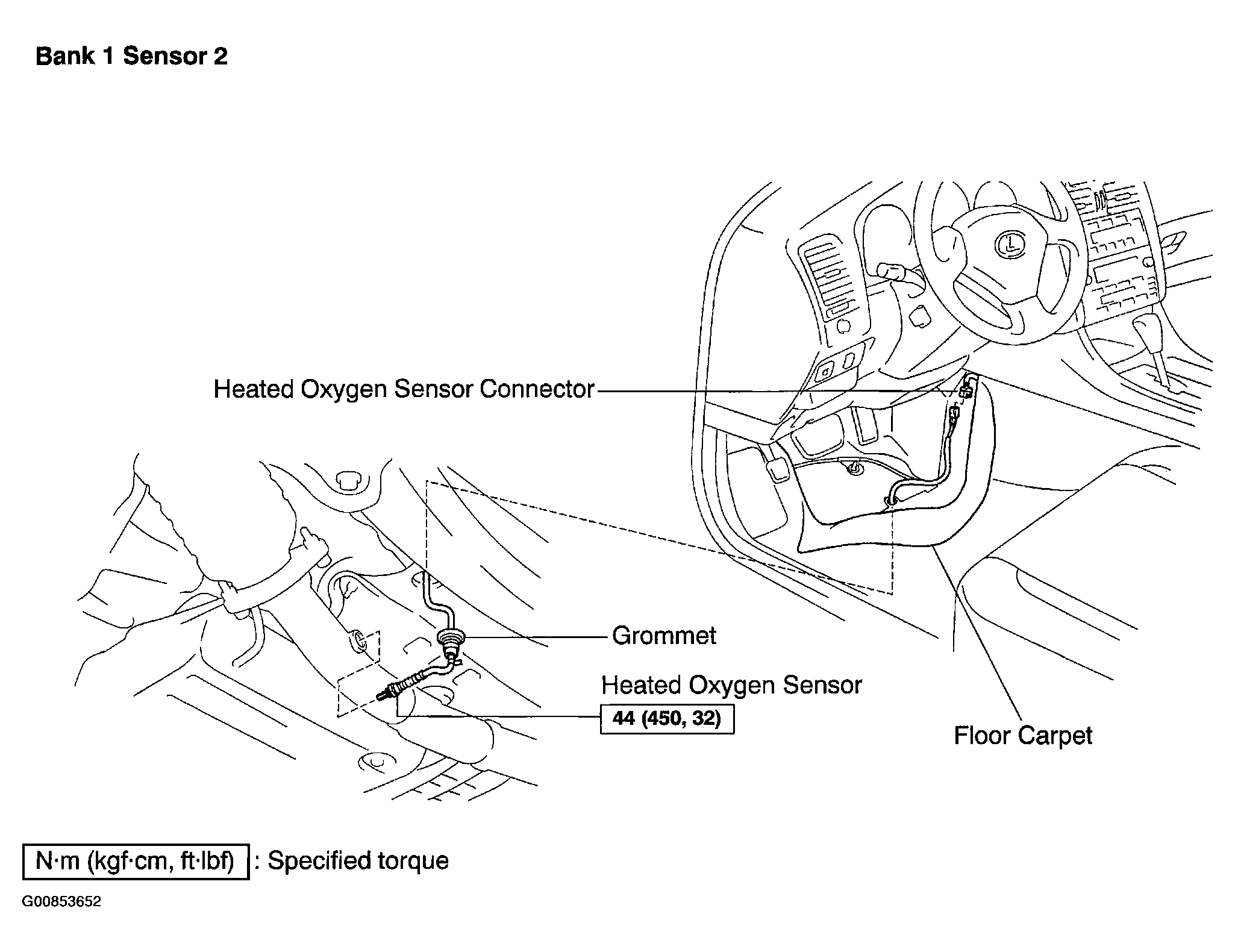

Fig 3: Identifying Heated Oxygen Sensor Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

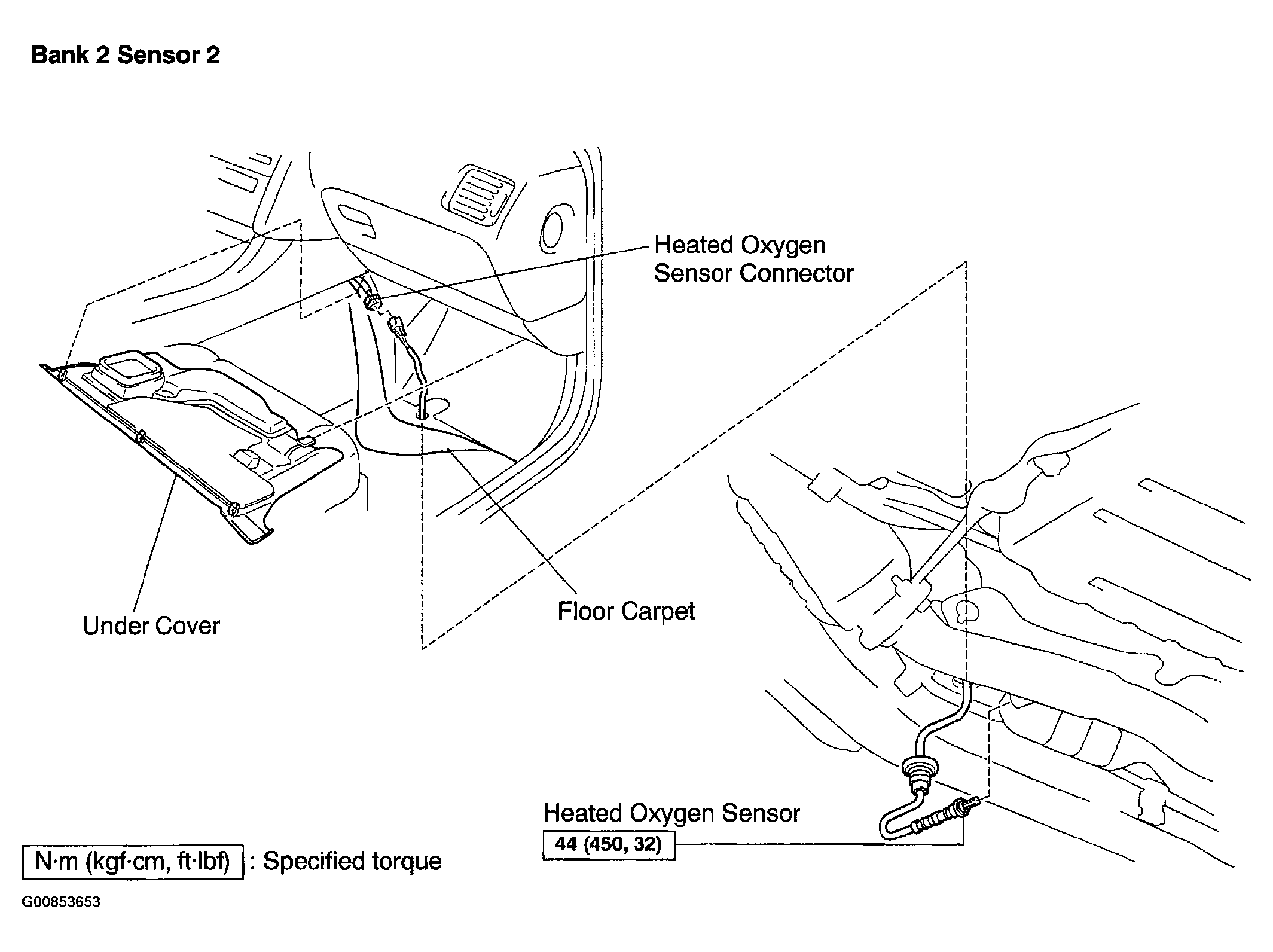

Fig 4: Identifying Heated Oxygen Sensor Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
