VSV For Acoustic Control Induction System (ACIS): Components

Fig 1: Exploded View Of VSV For Acoustic Control Induction System (ACIS) Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

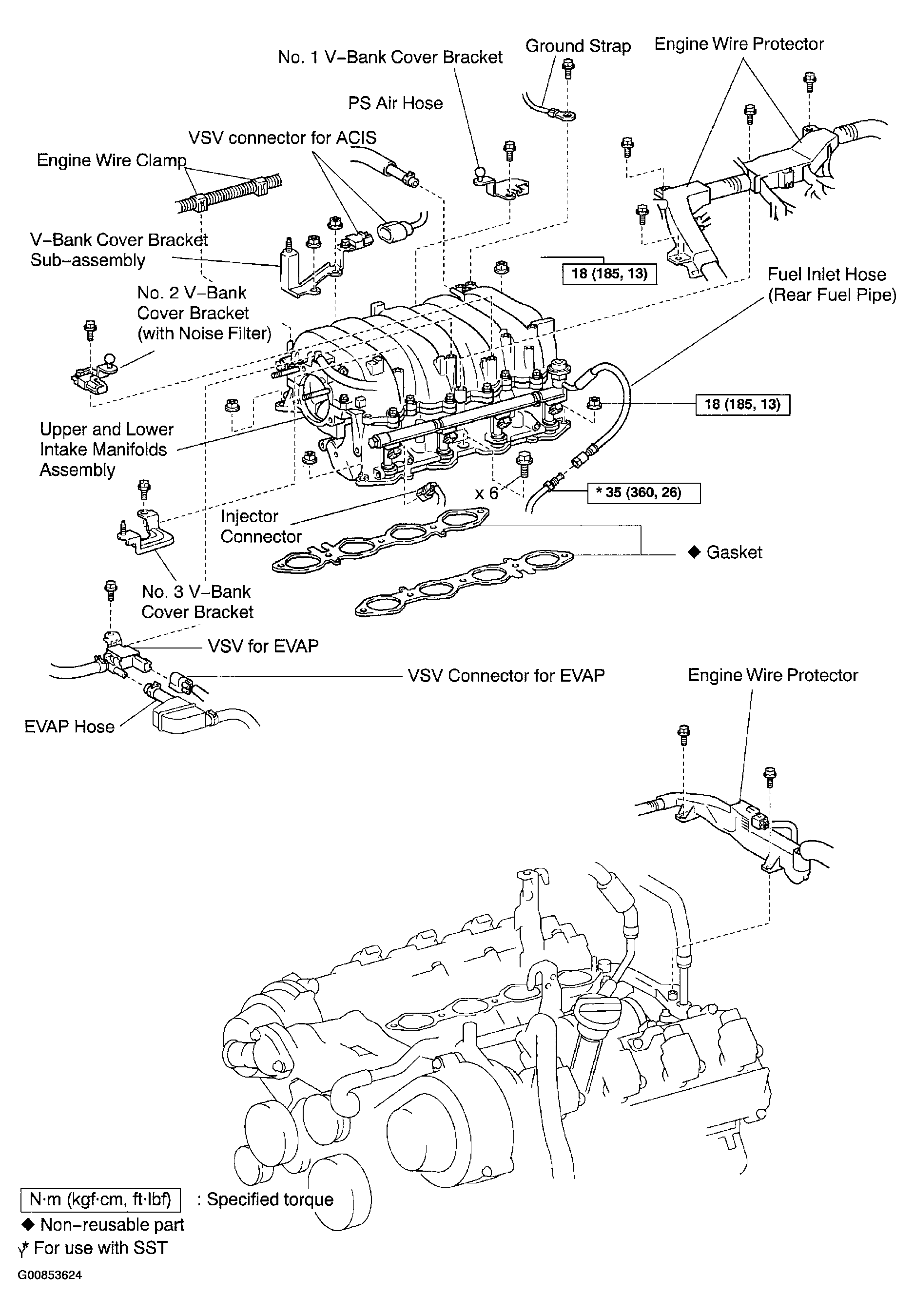

Fig 2: Exploded View Of VSV For Acoustic Control Induction System (ACIS) Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

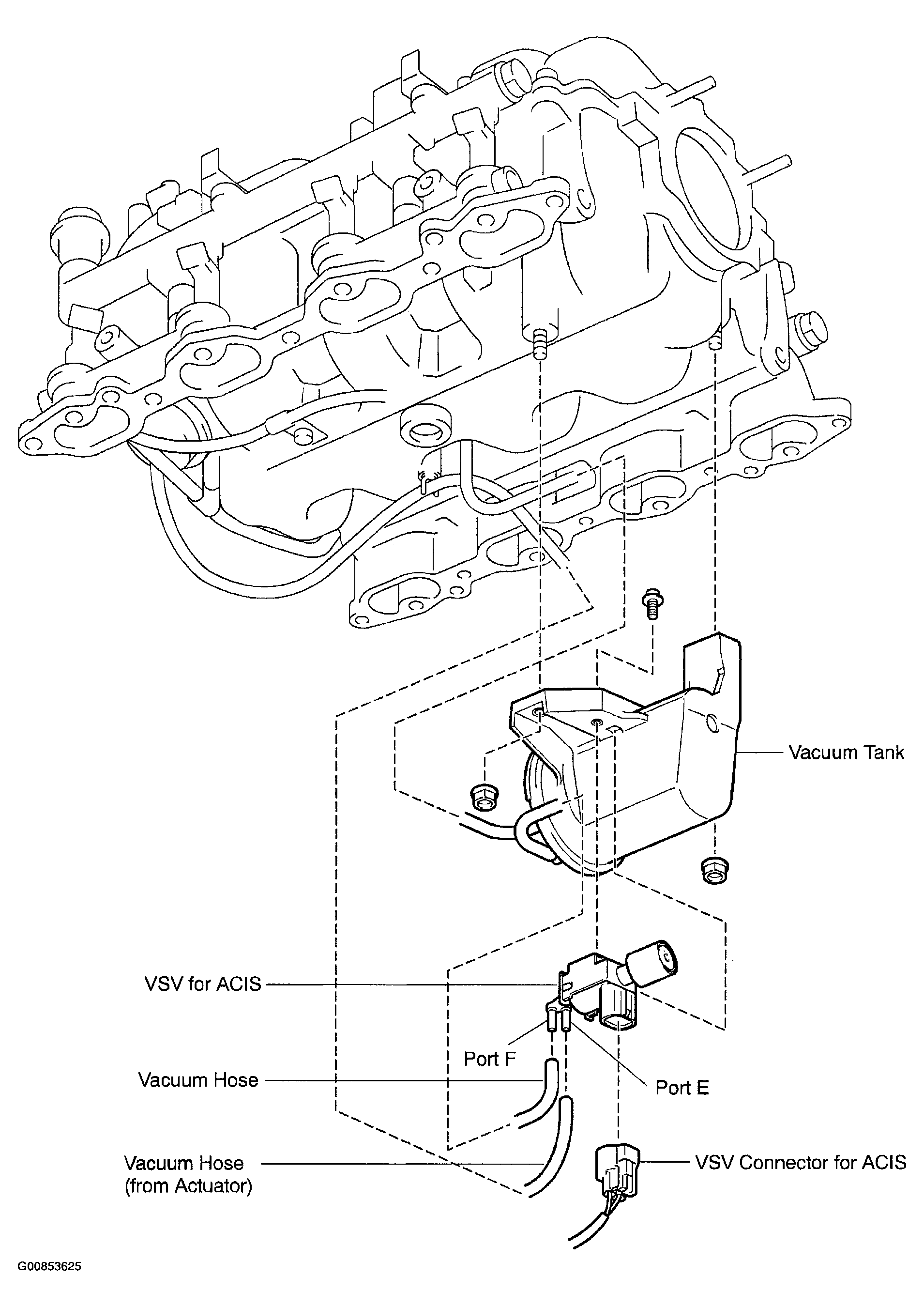

Fig 3: Exploded View Of VSV For Acoustic Control Induction System (ACIS) Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
