GS 430
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
SFI System (3UZ-FE)
›
VVT Sensor
›
Components
VVT Sensor: Components

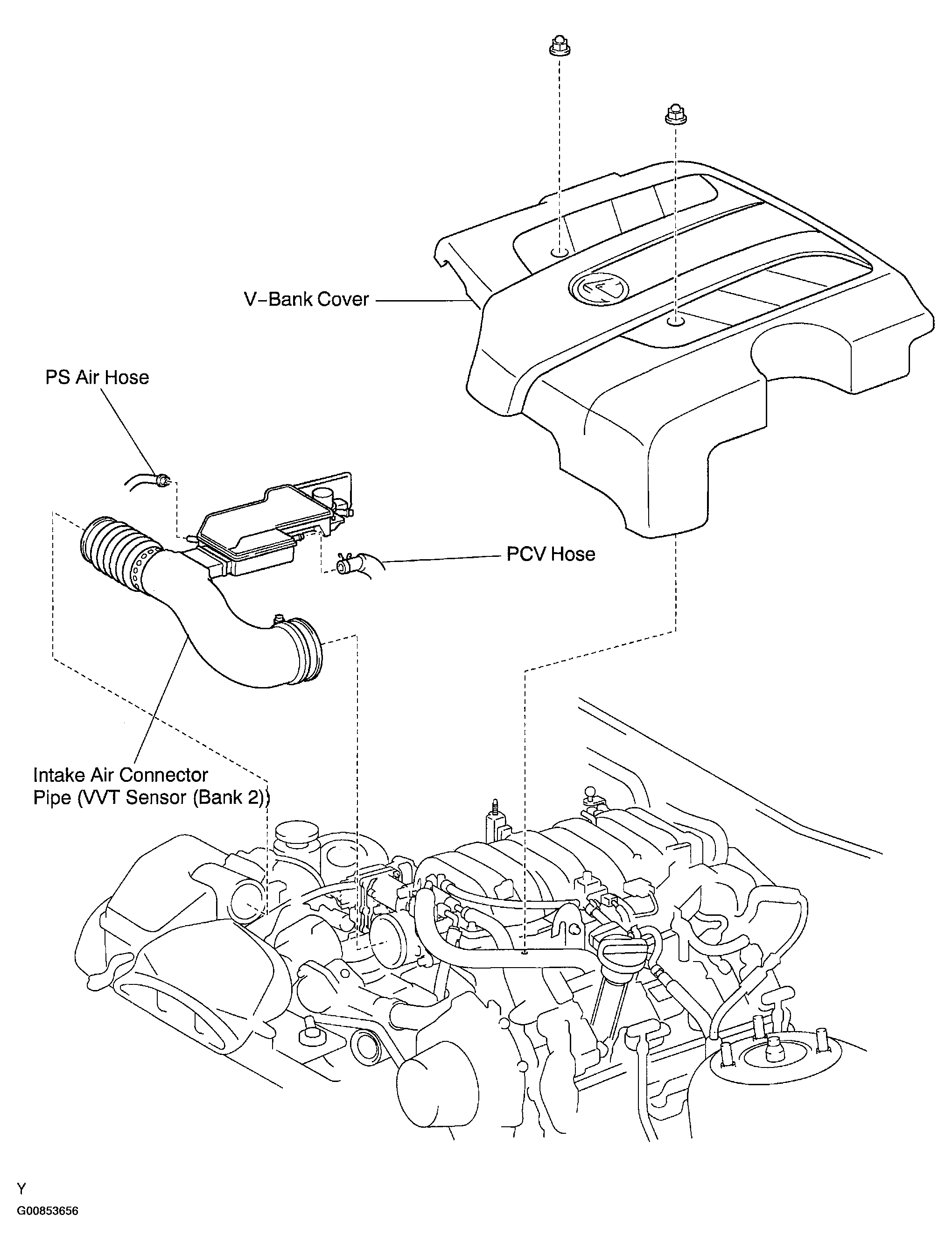

Fig 1: Exploded View Of VVT Sensor Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

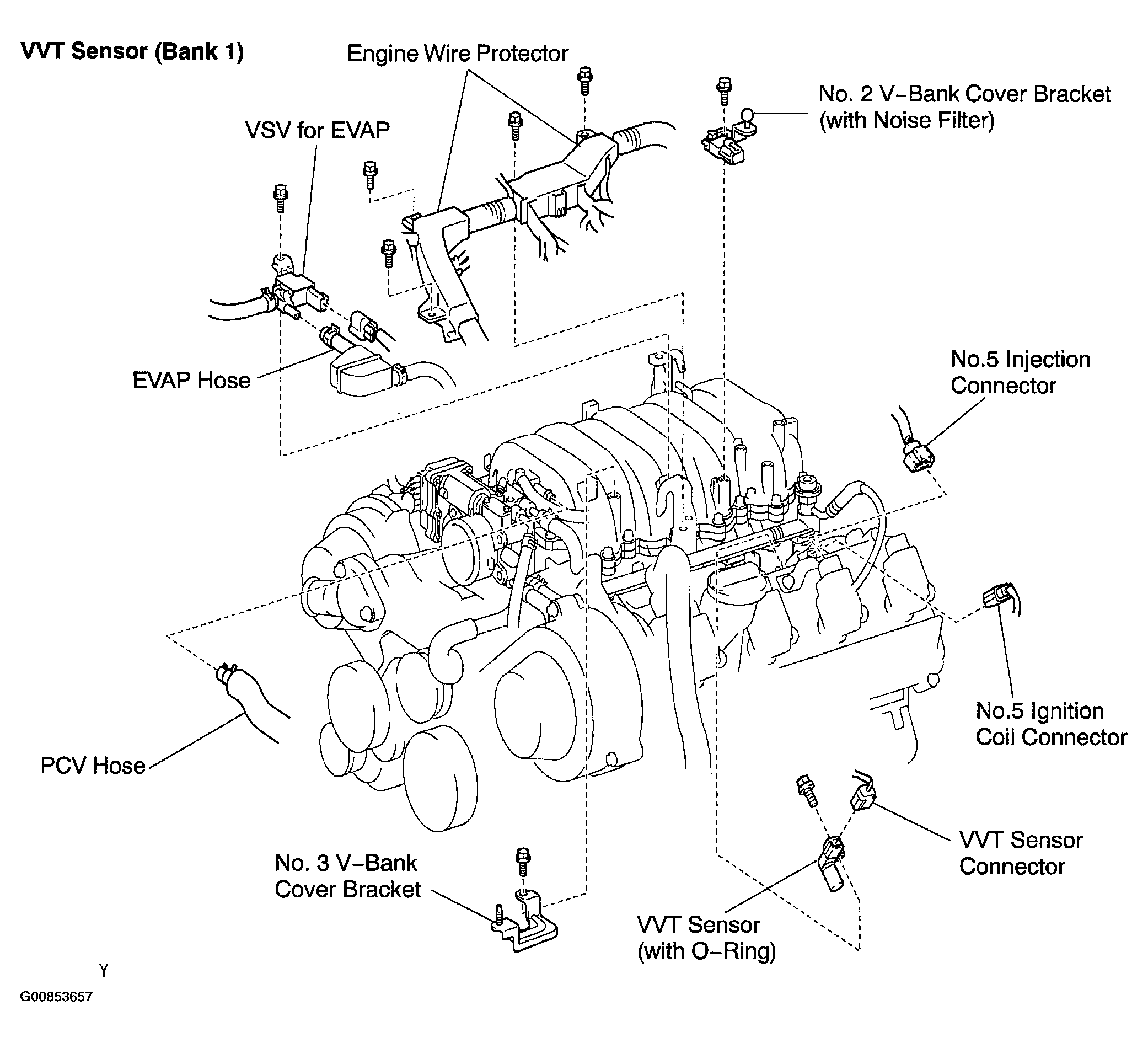

Fig 2: Exploded View Of VVT Sensor Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

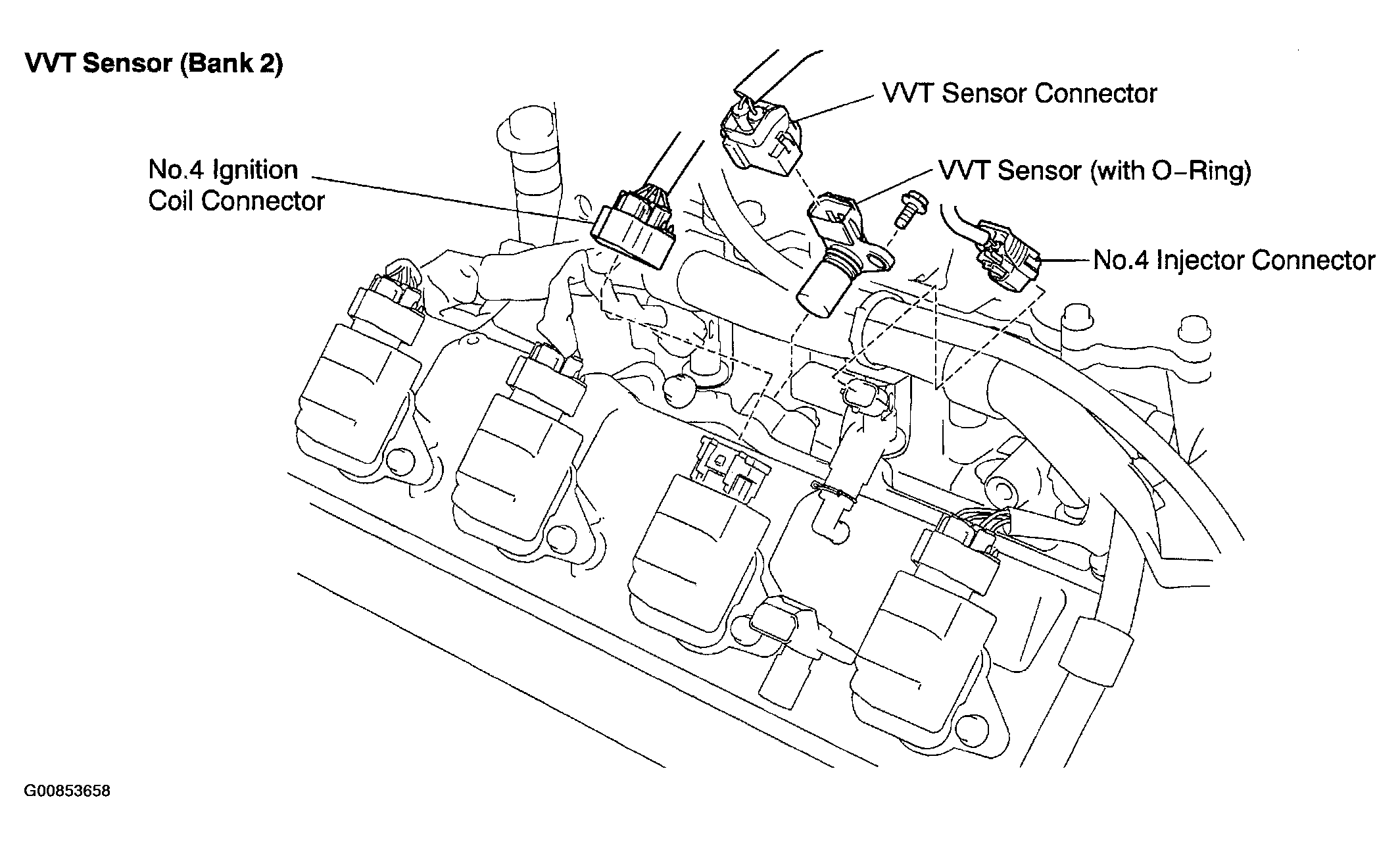

Fig 3: Exploded View Of VVT Sensor Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
