Problem Symptoms Table

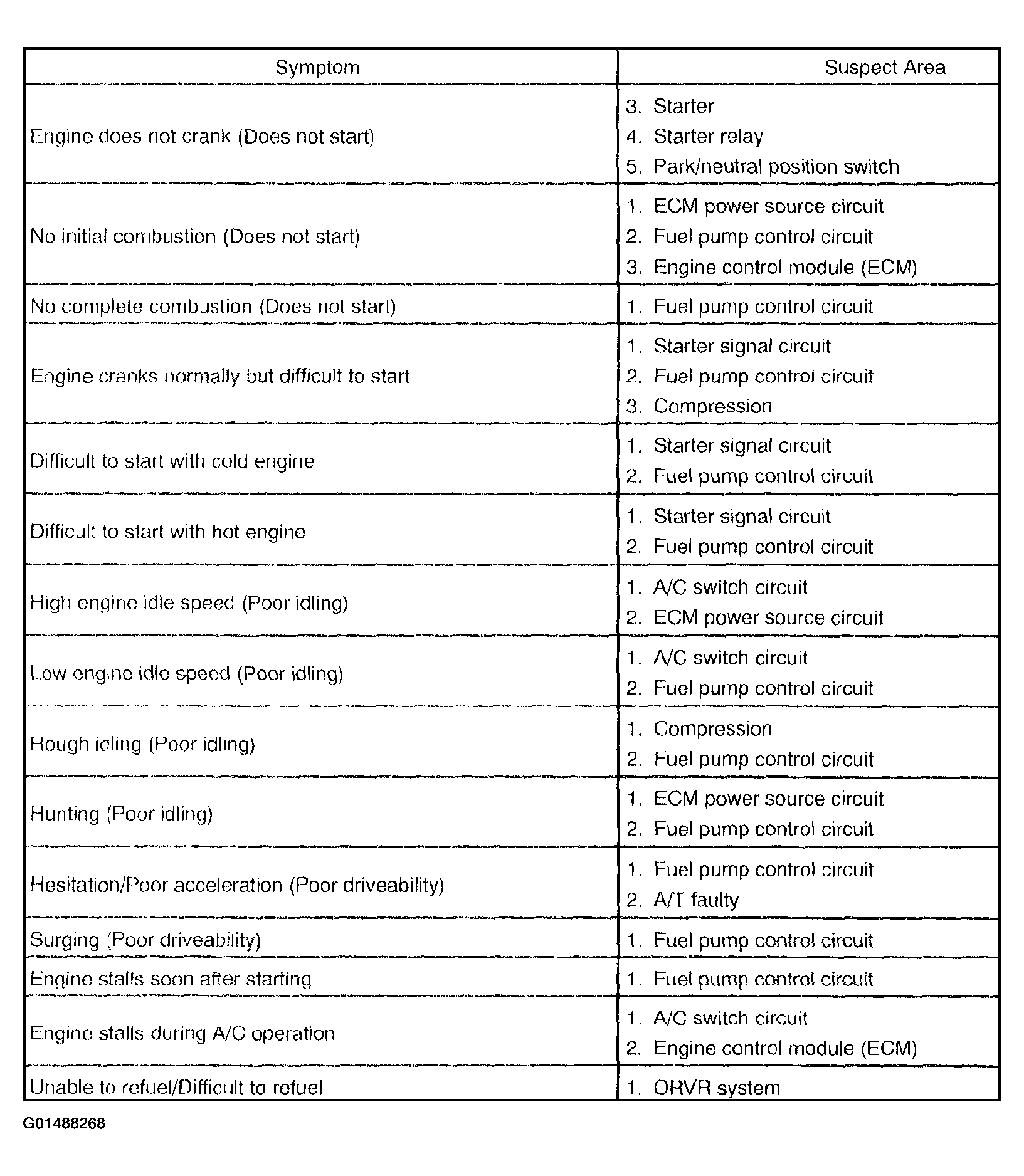

Fig 1: Problem Symptoms Chart
G01488268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
