Propeller Shaft Assembly: Replacement

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEPARATE INTERMEDIATE SHAFT AND PROPELLER SHAFT
    1. Place matchmarks on the intermediate. shaft and propeller shaft.
    2. Separate the intermediate shaft and propeller shaft.
    3. Remove the dust boot from the propeller shaft.

      HINT:

      If the dust boot is reused, remove it after wrapping vinyl tape around the spline, so it will not be damaged.

      Fig 1: Placing Matchmarks On Intermediate Shaft And Propeller Shaft
      G01343260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CENTER SUPPORT BEARING
    1. Using a snap ring expander, remove the snap ring.
    2. Using SST and a press, remove the center support bearing and dust deflector.

      SST 09950-00020

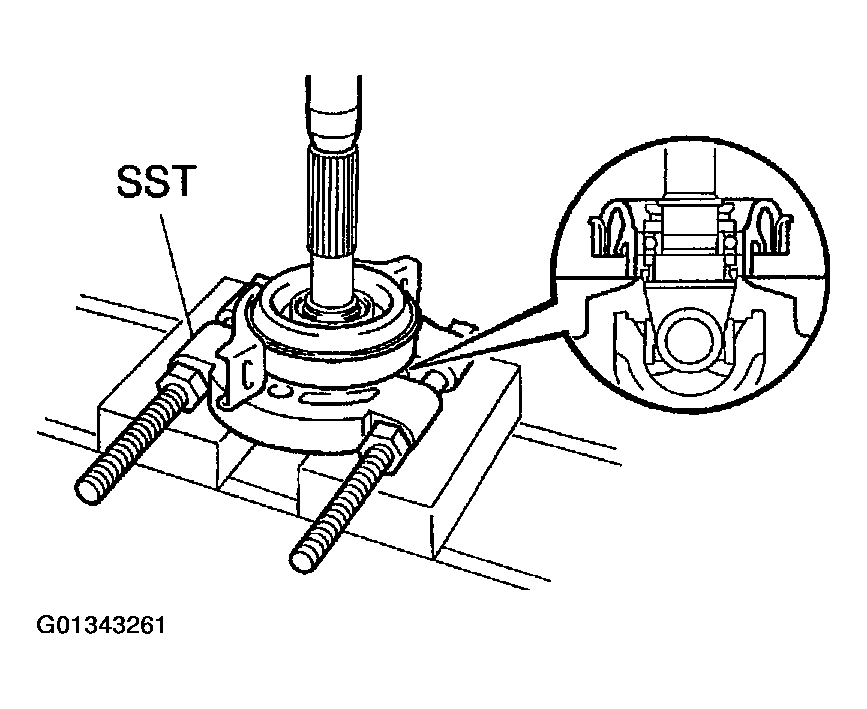

      Fig 2: Removing Center Support Bearing
      G01343261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT INTERMEDIATE SHAFT AND PROPELLER SHAFT RUNOUT

    Using a dial indicator, check the runout of the shafts.

    Maximum runout: 0.8 mm (0.031 In.)

    If the runout exceeds the maximum, replace the propeller shaft assembly.

    Fig 3: Checking Runout Of Shafts
    G01343262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT SPIDER BEARING
    1. Check if the spider bearing rotates smoothly.
    2. Check if there is any play in the spider bearing.

      If necessary, replace the propeller shaft.

      Fig 4: Inspecting Spider Bearing
      G01343263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CENTER SUPPORT BEARING
    NOTE: Be careful, not to grip the propeller shaft tube too tightly in a vise as this will cause, deformation.
    1. Using SST and a press, install the center support bearing.

      SST 0933-50010

      Fig 5: Installing Center Support Bearing
      G01343264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, insert a new dust deflector until it almost touches the rubber of the center support bearing.

      SST 09608-00071, 09608-06041

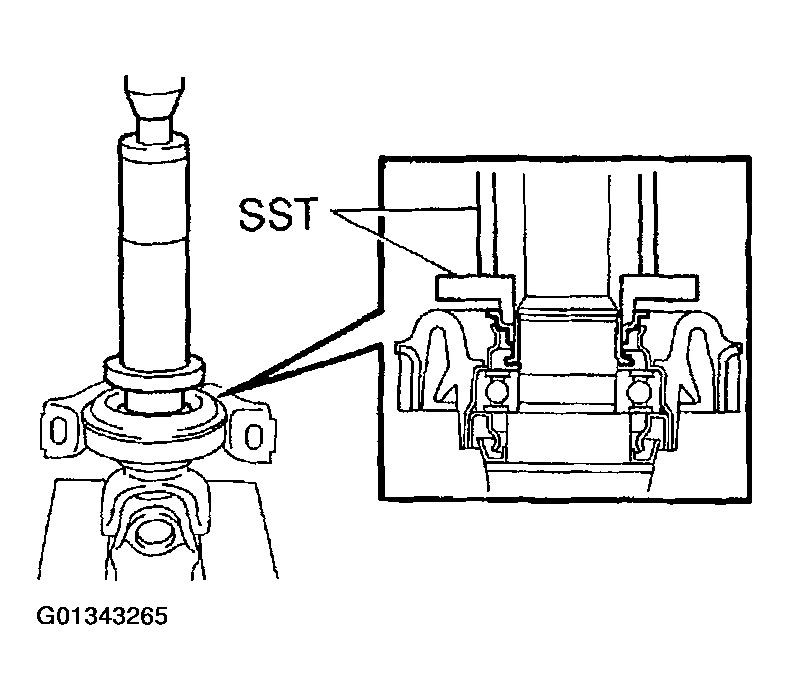

      Fig 6: Inserting New Dust Deflector
      G01343265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, install a new dust deflector.

      SST 09330-50010

    4. Using a snap ring expander, install a new snap ring.
      Fig 7: Installing New Snap Ring
      G01343266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. ASSEMBLE INTERMEDIATE SHAFT AND PROPELLER SHAFT
    1. Install the dust boot.
      NOTE: Assemble after wrapping vinyl tape around the spline so will not damage the boot.
    2. Apply grease to the spline.

      Grease:

      Molybdenum disulphide lithium base, NLGI No. 2

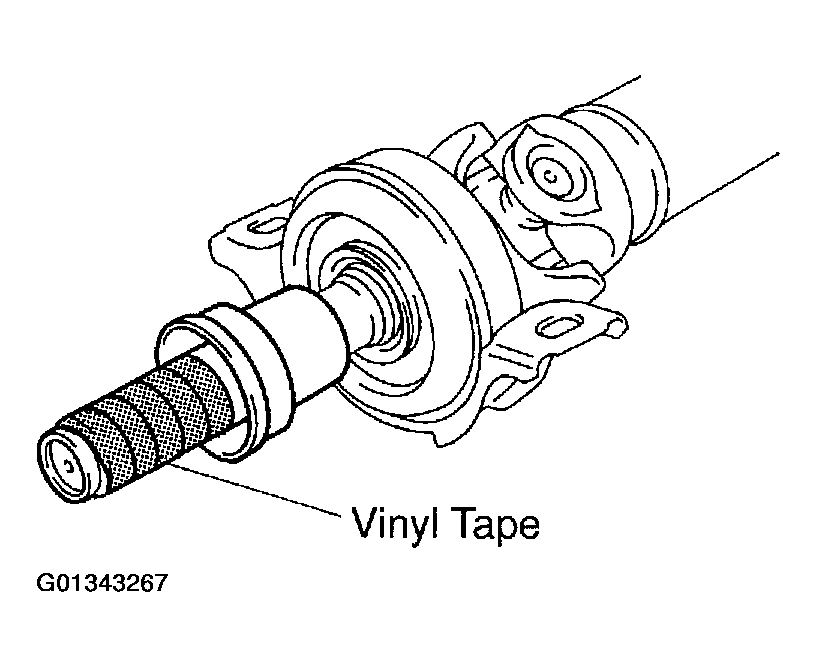

      Fig 8: Wrapping Vinyl Tape Around Spline
      G01343267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the matchmarks and assemble the intermediate shaft and propeller shaft.
      Fig 9: Aligning Matchmarks And Assembling Intermediate Shaft And Propeller Shaft
      G01343268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Cover the adjusting nut with the dust boot.
      NOTE: The directions of the Intermediate shaft companion flange and the propeller shaft companion flange should differ by 180°

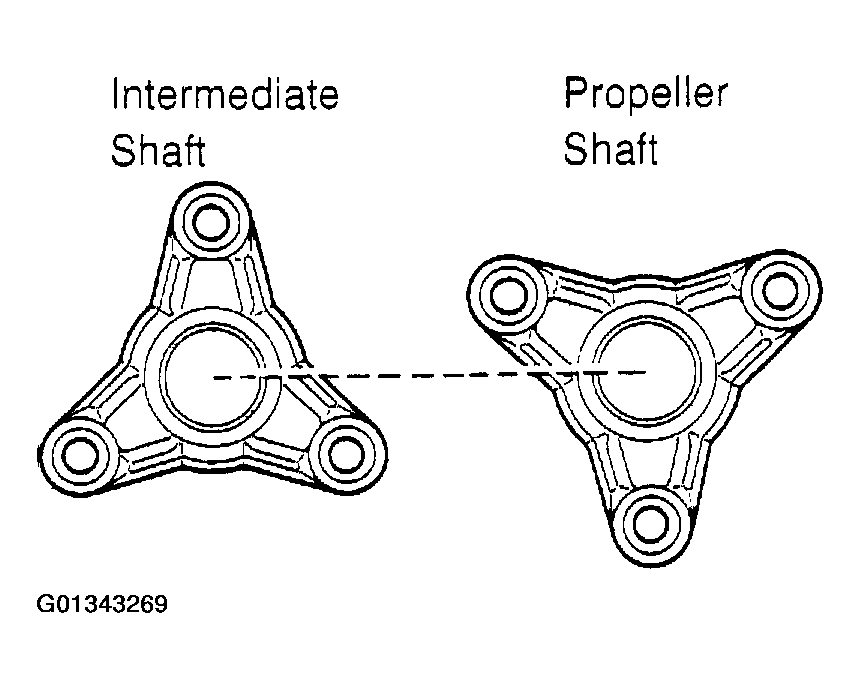

      Fig 10: Identifying Intermediate Shaft And Propeller Shaft Companion Flange Direction
      G01343269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. tighten the adjusting nut fully by hand.
