Height Control Dryer ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: COMPONENTS

  1. REMOVE REAR DISC WHEEL
  2. REMOVE QUARTER PANEL MUDGUARD REAR LH
  3. REMOVE FUEL TANK FILLER PIPE PROTECTOR (  HEIGHT CONTROL COMPRESSOR ASSY  )
  4. REMOVE HEIGHT CONTROL COMPRESSOR COVER (  HEIGHT CONTROL COMPRESSOR ASSY  )
  5. REMOVE HEIGHT CONTROL FILTER (  HEIGHT CONTROL COMPRESSOR ASSY  )
  6. DISCONNECT HEIGHT CONTROL TUBE NO.2 (  HEIGHT CONTROL COMPRESSOR ASSY  )
  7. REMOVE HEIGHT CONTROL DRYER ASSY
    1. Disconnect the connector.
    2. Remove the 3 bolts.

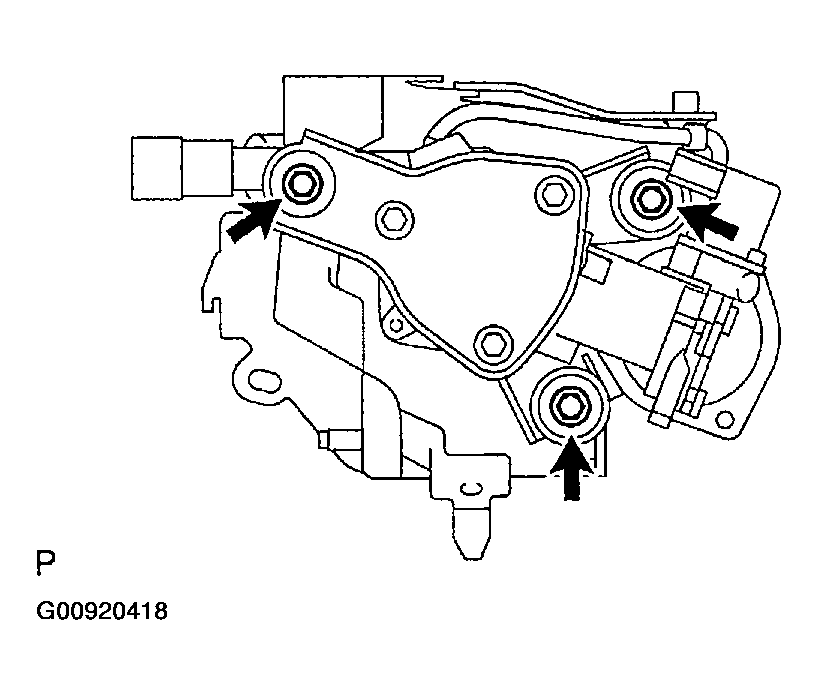

      Fig 1: Removing 3 Bolts (1 Of 2)
      G00920418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 bolts, the height control compressor and the dryer with the bracket.
    4. Remove the bolt and the dryer.
    5. Remove the O-ring.
    Fig 2: Removing 3 Bolts (2 Of 2)
    G00920419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL HEIGHT CONTROL DRYER ASSY
    1. Install the bolt, the dryer and a new O-ring.
      1. Torque: 6.4 N.m (65 kgf.cm, 57 in..lbf)
    2. Assemble the height control compressor, the dryer and the bracket as a unit to the vehicle, and tighten the 3 bolts to fix the bracket to the frame.
      1. Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
    3. Install the height control compressor assy to the bracket with the 3 bolts.
      1. Torque: 5.9 N.m (60 kgf.cm, 52 in..lbf)
    4. Connect the connector.
  9. CONNECT HEIGHT CONTROL TUBE NO.2 (  HEIGHT CONTROL COMPRESSOR ASSY  )
  10. INSTALL HEIGHT CONTROL FILTER (  HEIGHT CONTROL COMPRESSOR ASSY  )
  11. INSTALL HEIGHT CONTROL COMPRESSOR COVER (  HEIGHT CONTROL COMPRESSOR ASSY  )
  12. INSPECT AIR LEAK (  SUSPENSION CONTROL SYSTEM  )
  13. INSTALL FUEL TANK FILLER PIPE PROTECTOR (  HEIGHT CONTROL COMPRESSOR ASSY  )
  14. INSTALL QUARTER PANEL MUDGUARD REAR LH
  15. INSTALL REAR DISC WHEEL
    1. Torque: 112 N.m (1,140 kgf.cm, 83 ft.lbf)
