Refrigerant Line: Components

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

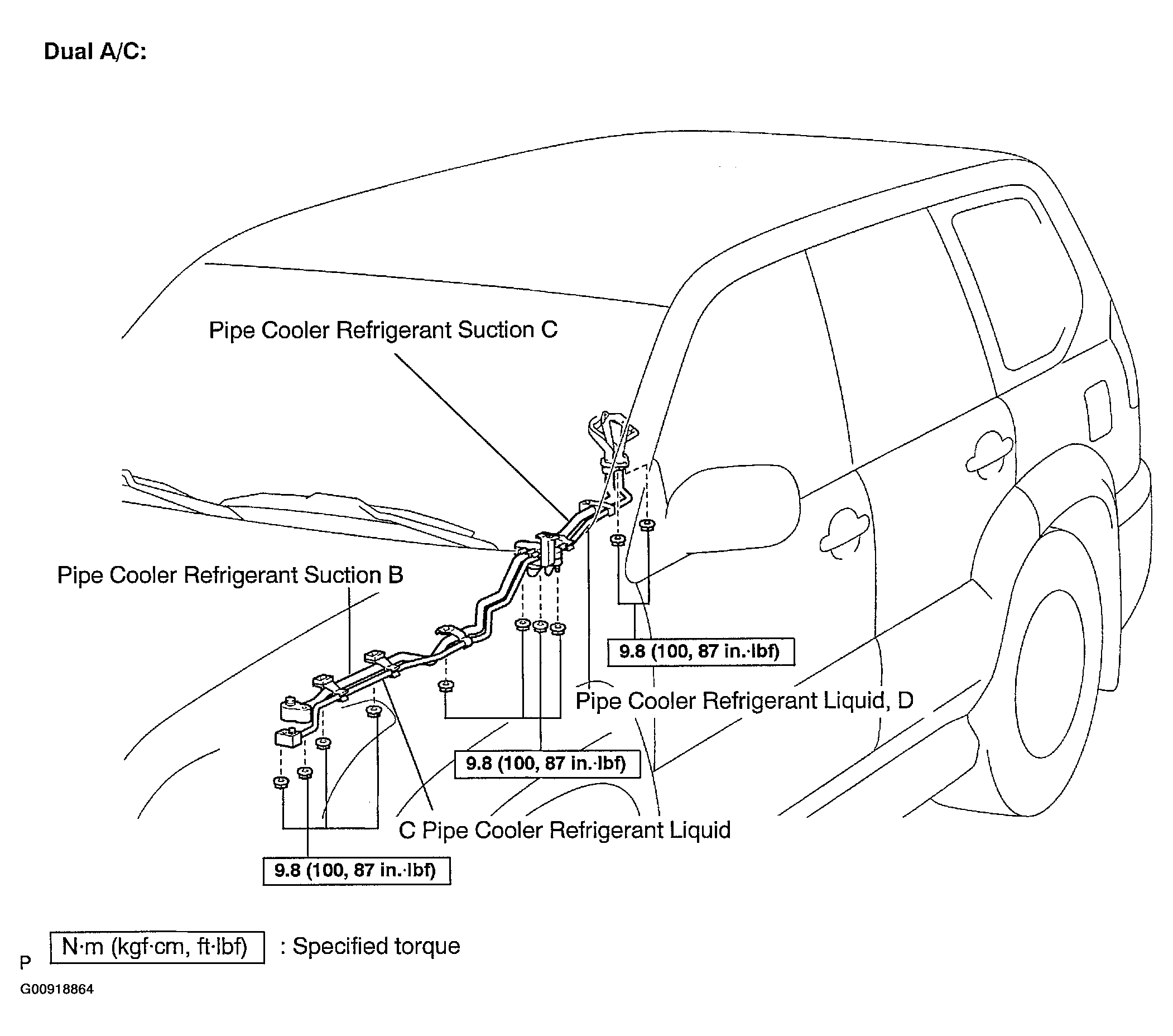

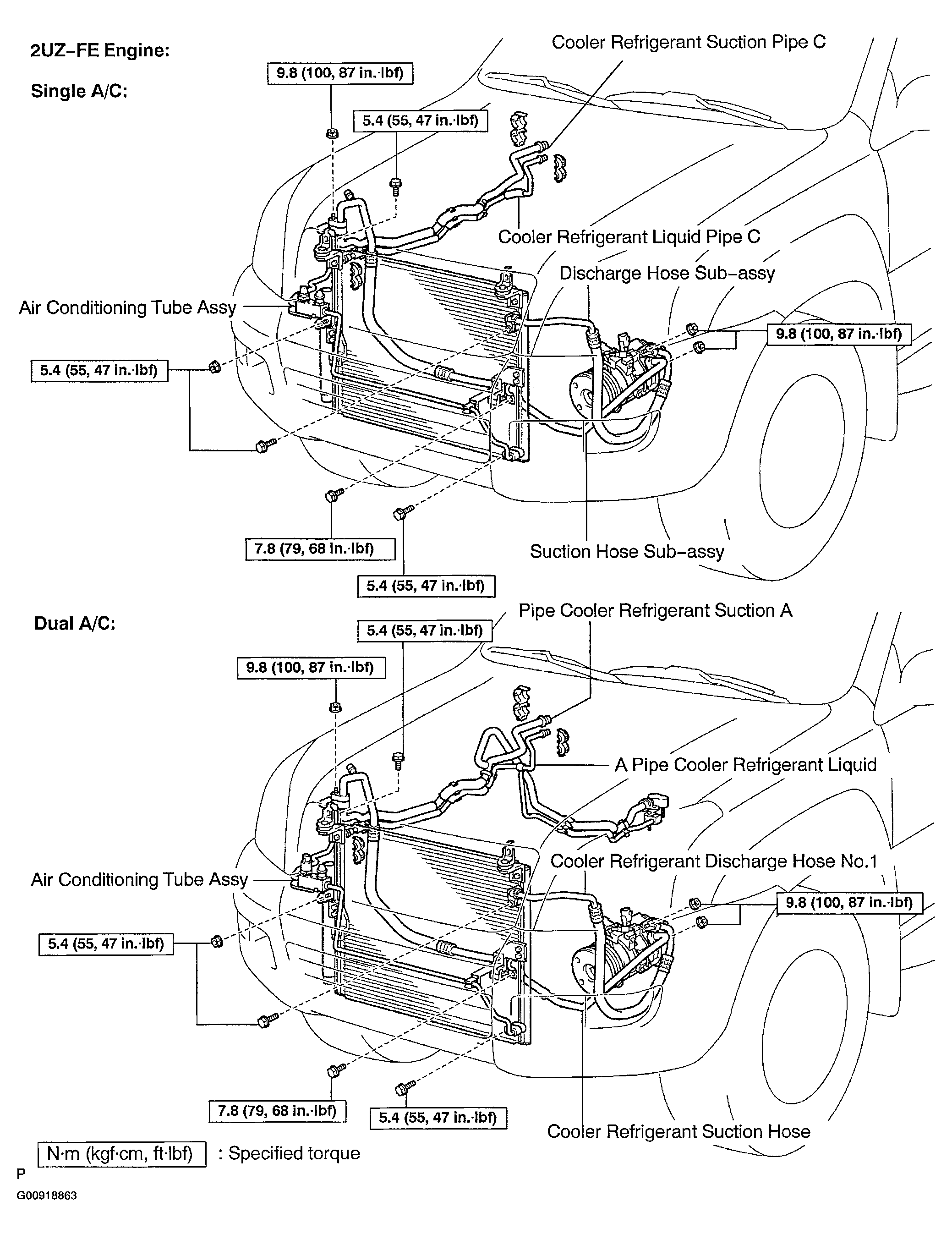

Fig 1: Identifying Components Of Refrigerant Line (1 Of 2)
