Section 390 (Lighting System): Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See: COMPONENTS

  1. REMOVE RADIATOR SUPPORT SEAL UPPER (See  RADIATOR ASSY (2UZ-FE)  )
  2. REMOVE FRONT BUMPER GUARD (See  FRONT BUMPER  )
  3. REMOVE FRONT FENDER LINER RH (See  FRONT BUMPER  )
  4. REMOVE FRONT FENDER LINER LH (See  FRONT BUMPER  )
  5. REMOVE FRONT BUMPER COVER (See  FRONT BUMPER  )
  6. REMOVE LH Headlamp ASSY
    1. Remove the 3 screws.
    2. Disconnect the each connector.
    3. Pull out the headlamp unit forward, then disengage the bracket on the body side.

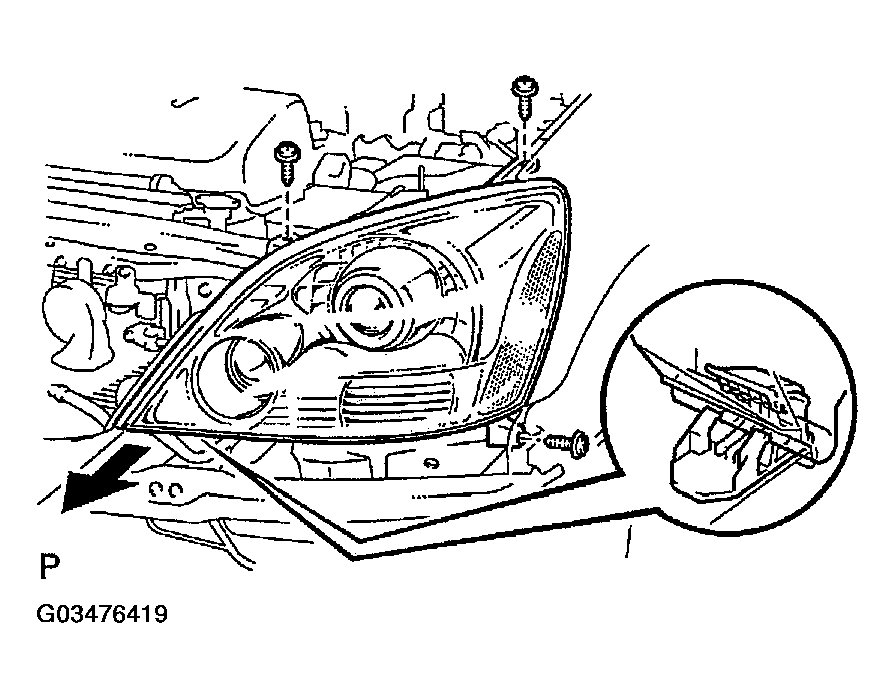

    Fig 1: Removing LH Headlamp Assembly
    G03476419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE Headlamp, NO.1 BULB
    1. Rotate the headlamp No.1 bulb in the direction of the arrow and pull it off toward the rear of the vehicle.
    Fig 2: Removing Headlamp Bulb
    G03476420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE Headlamp, NO.2 BULB
    1. Rotate the headlamp No.2 bulb in the direction of the arrow and pull it off toward the rear of the vehicle.
    Fig 3: Rotating Headlamp Bulb
    G03476421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HOOD TO FRONT END PANEL SEAL NO.1
  10. REMOVE Headlamp UNIT ASSY LH
    1. Remove the headlamp cord with 3 bulbs
    2. Remove the headlamp unit assy LH.
  11. INSTALL FRONT FENDER LINER RH (See  FRONT BUMPER  )
  12. INSTALL FRONT FENDER LINER LH (See  FRONT BUMPER  )
  13. ADJUST HEADLIGHT AIM ONLY (See  ADJUSTMENT  )
  14. PUT VEHICLE THESE CONDITIONS (See  ADJUSTMENT  )
  15. ADJUST FOG LIGHT AIM (See  ADJUSTMENT  )
