Network Gateway Ecu Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

  1. REMOVE SHIFT LEVER KNOB SUB-ASSY
  2. REMOVE SHIFT LEVER KNOB SUB-ASSY
  3. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
  4. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
  5. REMOVE CONSOLE PANEL UPPER ASSY (SEE  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE  REPLACEMENT  )
  7. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (SEE  REPLACEMENT  )
  8. REMOVE CONSOLE REAR END PANEL SUB-ASSY (SEE  REPLACEMENT  )
  9. REMOVE RR CONSOLE BOX ASSY (SEE  REPLACEMENT  )
  10. REMOVE CONSOLE BOX INSERT FRONT NO.2 (SEE  REPLACEMENT  )
  11. REMOVE CONSOLE BOX INSERT (SEE  REPLACEMENT  )
  12. REMOVE CONSOLE UPPER PANEL GARNISH FRONT (SEE  REPLACEMENT  )
  13. REMOVE CONSOLE BOX LOWER (SEE  REPLACEMENT  )
  14. REMOVE NETWORK GATEWAY ECU
    1. Disconnect the connector.
    2. Remove the 2 screws and network gateway ECU.

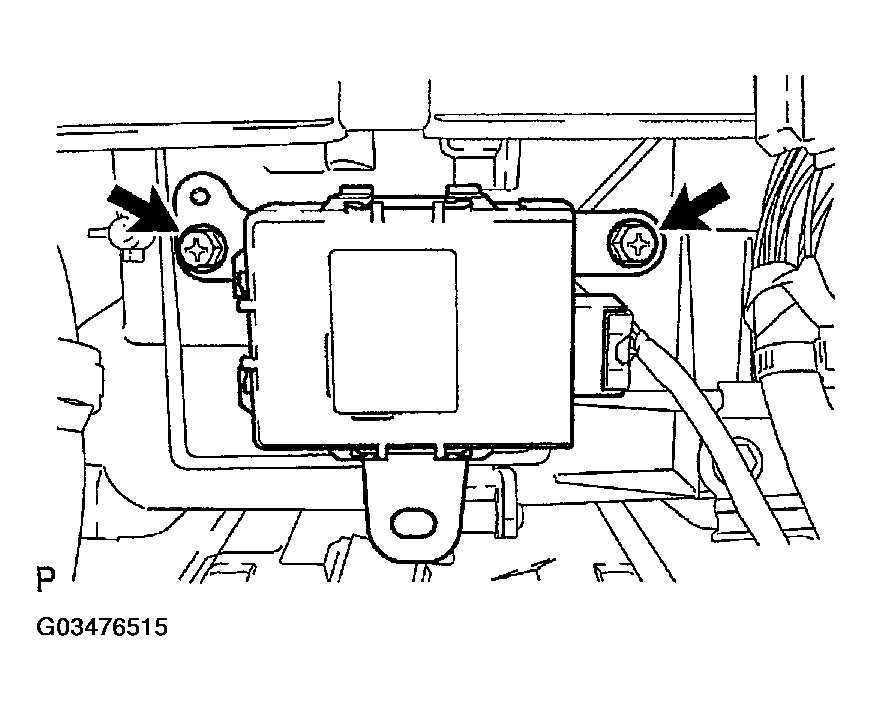

    Fig 1: Removing Network Gateway ECU
    G03476515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
