Radio Receiver ASSY Replacement

HINT:

COMPONENTS: See LOCATION .

1. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
2. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (SEE  REPLACEMENT  )
5. REMOVE INTEGRATION CONTROL & PANEL ASSY (SEE  REPLACEMENT  )
6. REMOVE RADIO BRACKET NO.1
   1. Remove the 5 screws.

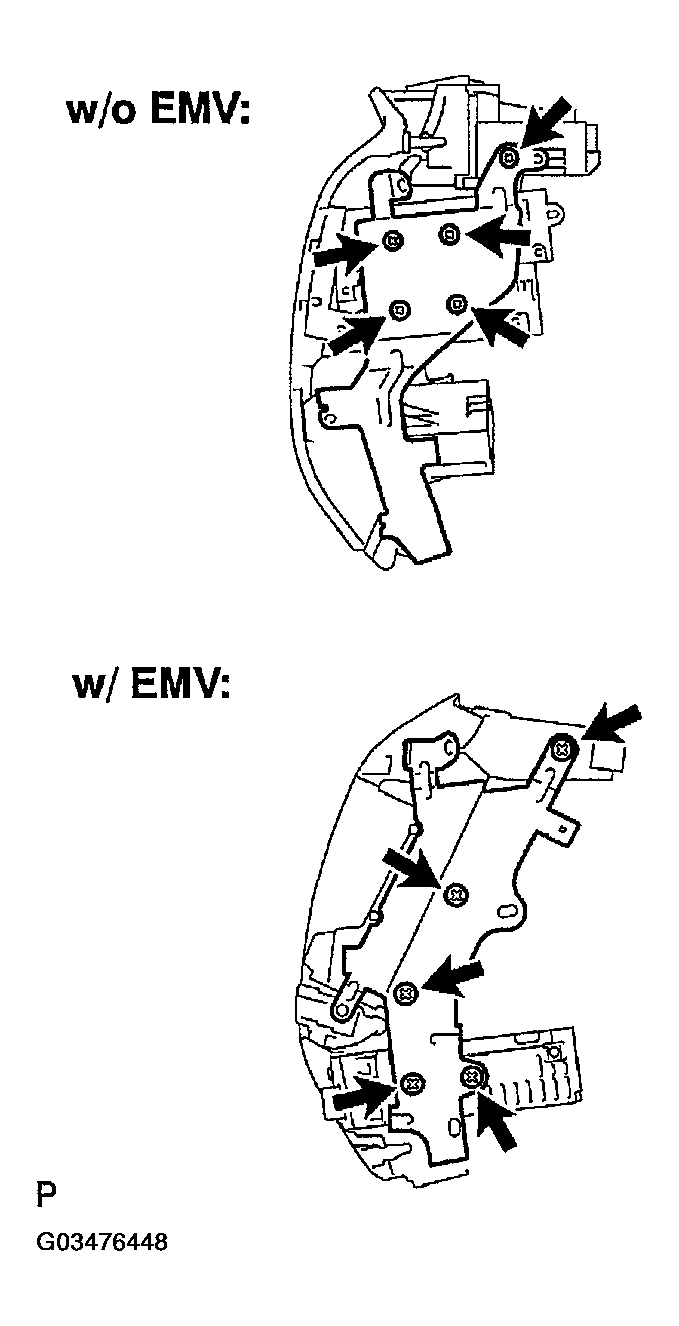

      Fig 1: Removing Radio Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the screw.
   3. Release the 2 claws and remove the radio bracket No.1.

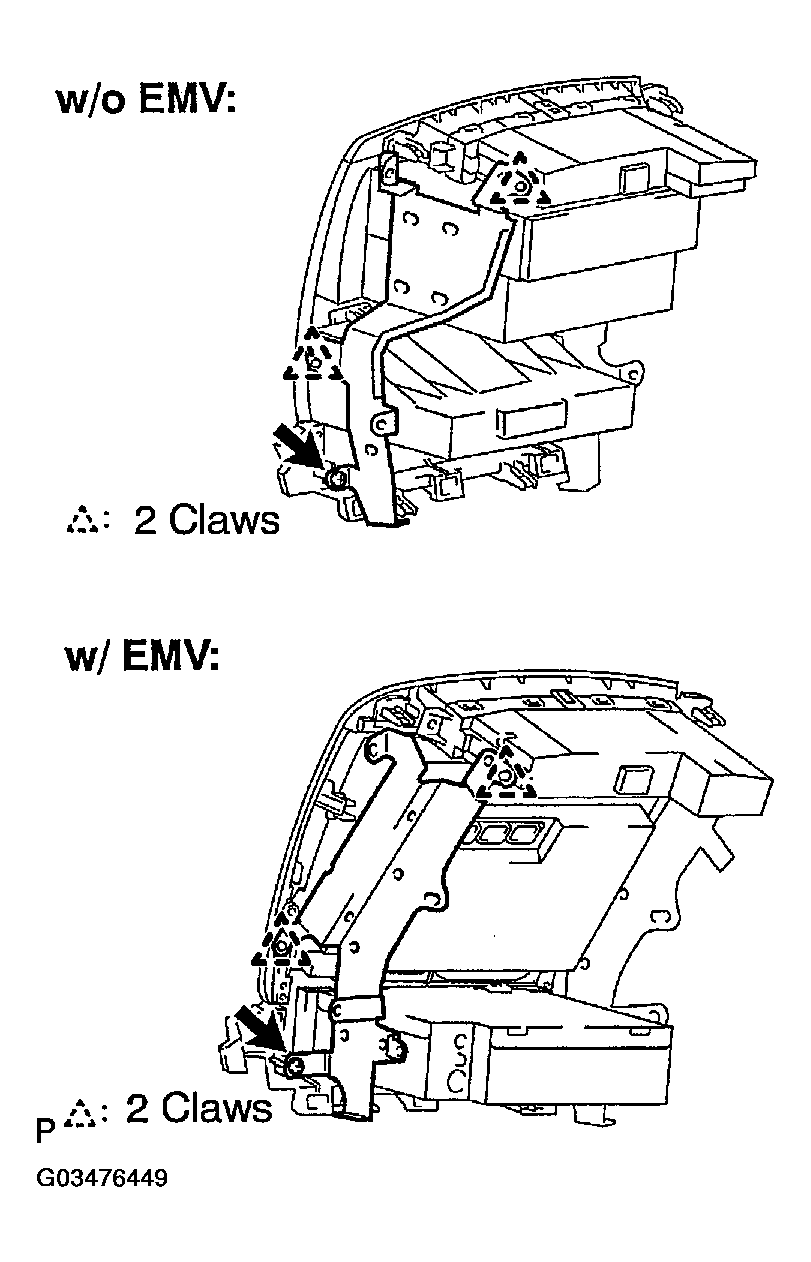

   Fig 2: Releasing Claws And Remove Radio Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO BRACKET NO.2
   1. Remove the 5 screws.

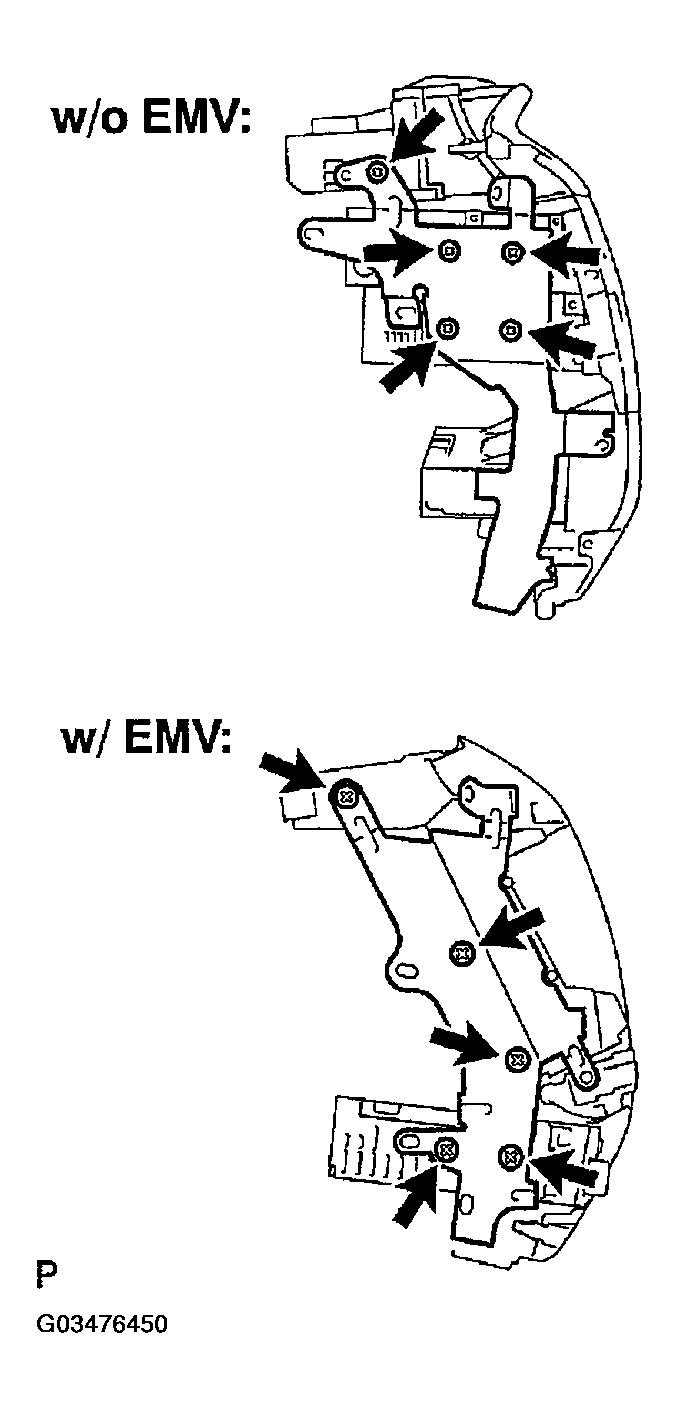

      Fig 3: Removing Radio Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the screw.
   3. Release the 2 claws and remove the radio bracket No.2.

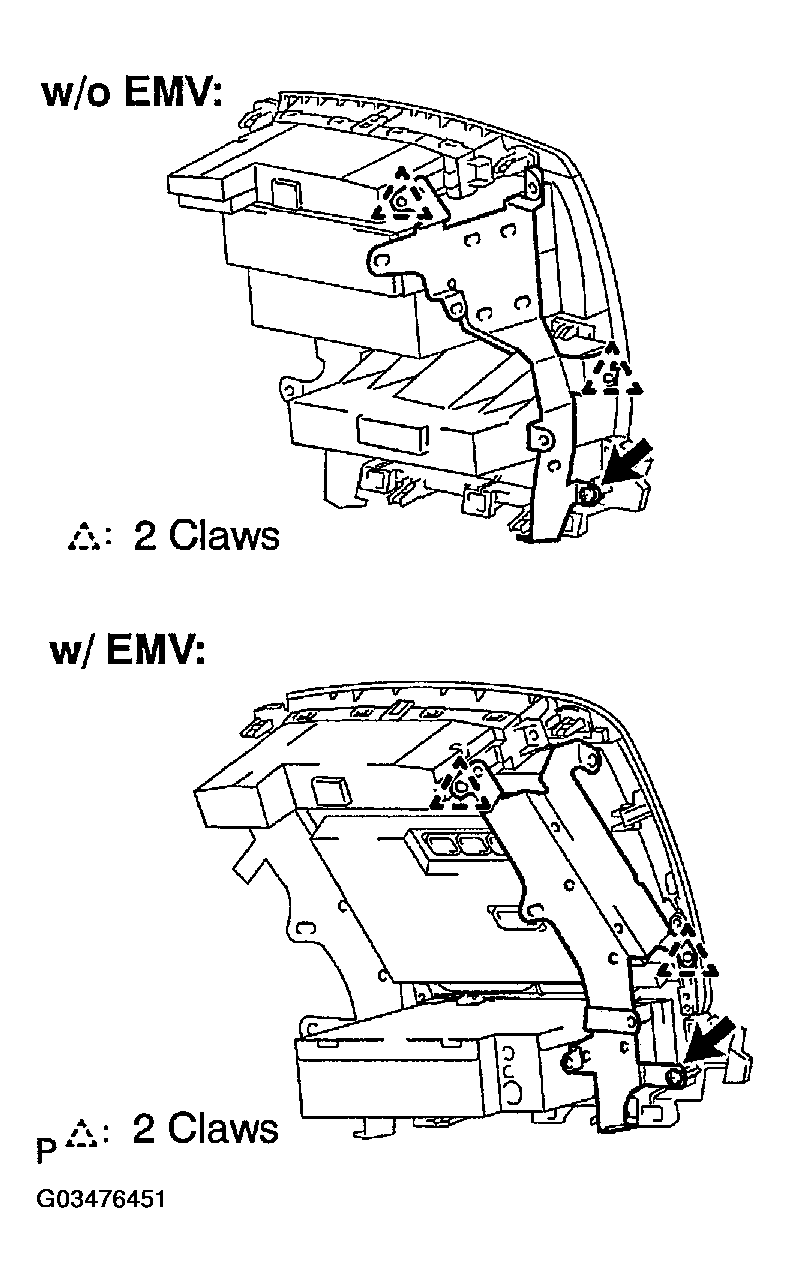

   Fig 4: Removing Radio Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE RADIO RECEIVER ASSY
   1. w/o EMV:

      Release the 3 claws and remove the radio receiver assy.

      w/ EMV:

      Release the 4 claws and remove the radio receiver assy.

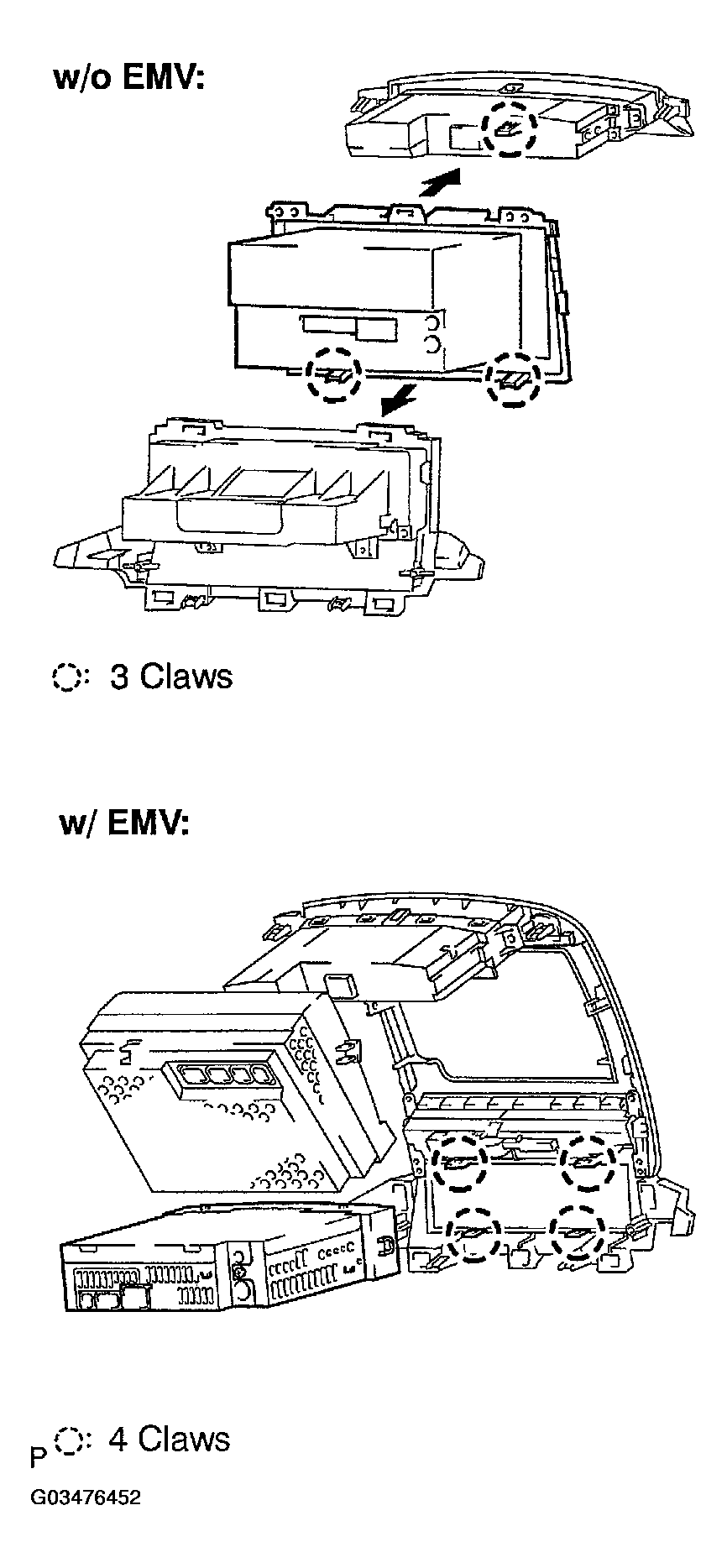

   Fig 5: Removing Radio Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
