Steering Pad Switch RH Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

DISCONNECT BATTERY NEGATIVE TERMINAL (SEE AIR BAG SAFETY PRECAUTIONS )
REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE REMOVAL & INSTALLATION )
REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE REMOVAL & INSTALLATION )
REMOVE HORN BUTTON ASSY (SEE REMOVAL & INSTALLATION )
REMOVE STEERING PAD SWITCH RH
1. Remove the screw.
2. Remove the clamp.

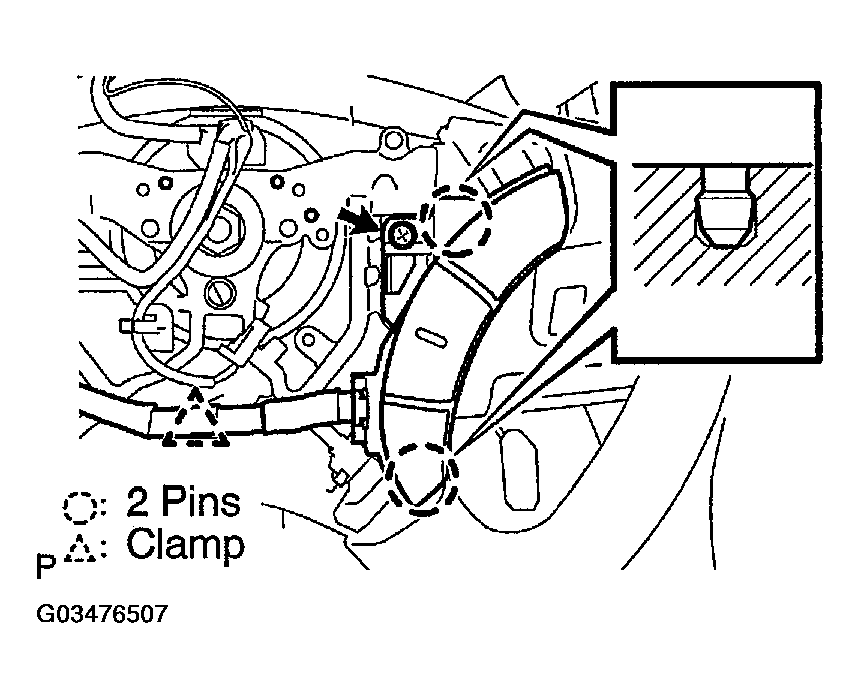

3. Disengage the 2 pins and release the steering pad switch RH from the steering wheel.

  Fig 1: Disengaging Pins And Release Steering Pad Switch RH From Steering Wheel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

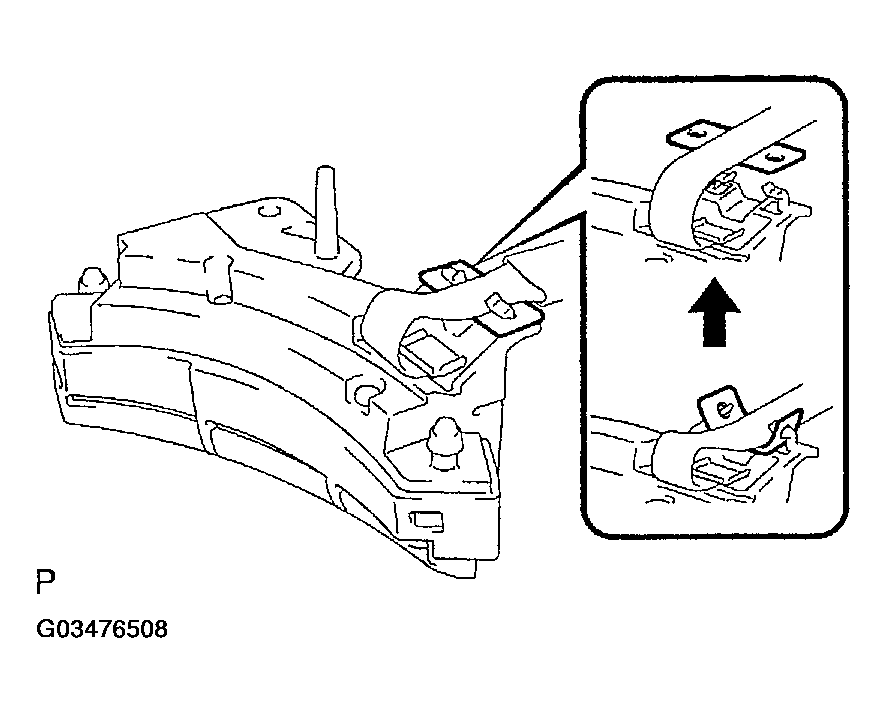

4. Release the tab of steering pad switch cable from the steering pad switch RH as shown in the illustration.

  Fig 2: Releasing Tab Of Steering Pad Switch Cable From Steering Pad Switch Rh
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

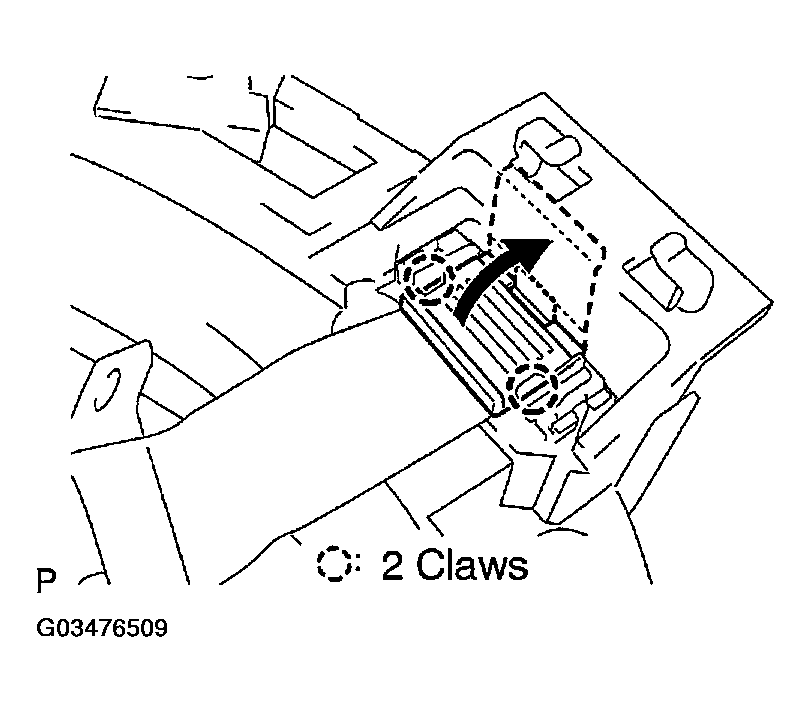

5. Disengage the 2 claws as shown in the illustration and open the latch on the top of the connector.

  Fig 3: Disengaging Claws Shown Illustration And Open Latch On Top Of Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

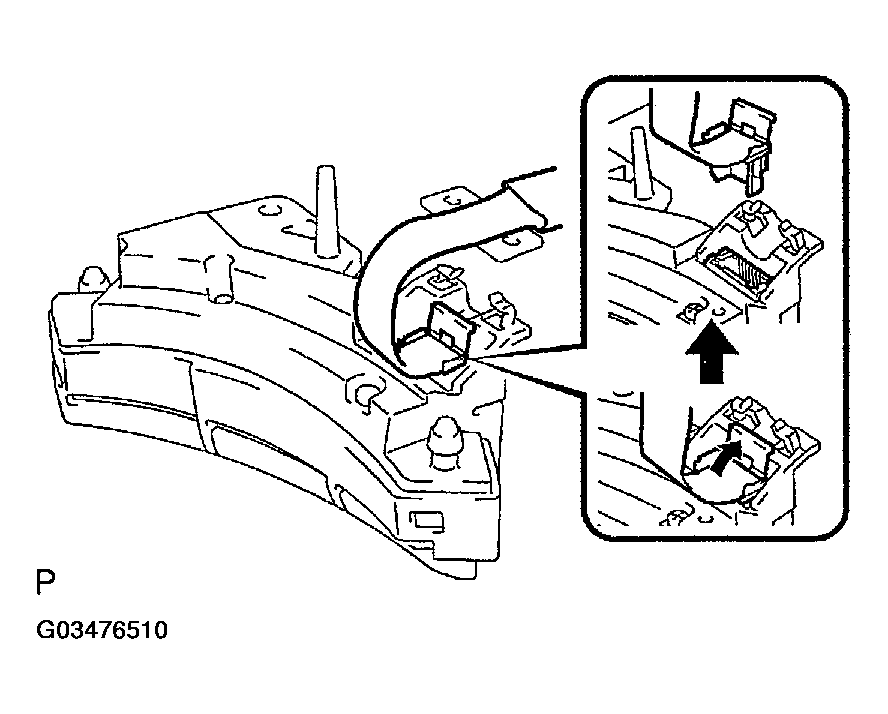

6. Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch RH.
Fig 4: Pulling Out Connector While Pinching Latch With Fingers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (SEE REMOVAL & INSTALLATION )
INSPECT HORN BUTTON ASSY (SEE REMOVAL & INSTALLATION )
INSPECT SRS WARNING LIGHT (SEE AIR BAG WARNING LIGHT INTERMITTENT )
