Section 414 (Coolant): Replacement

1. Remove the radiator cap.

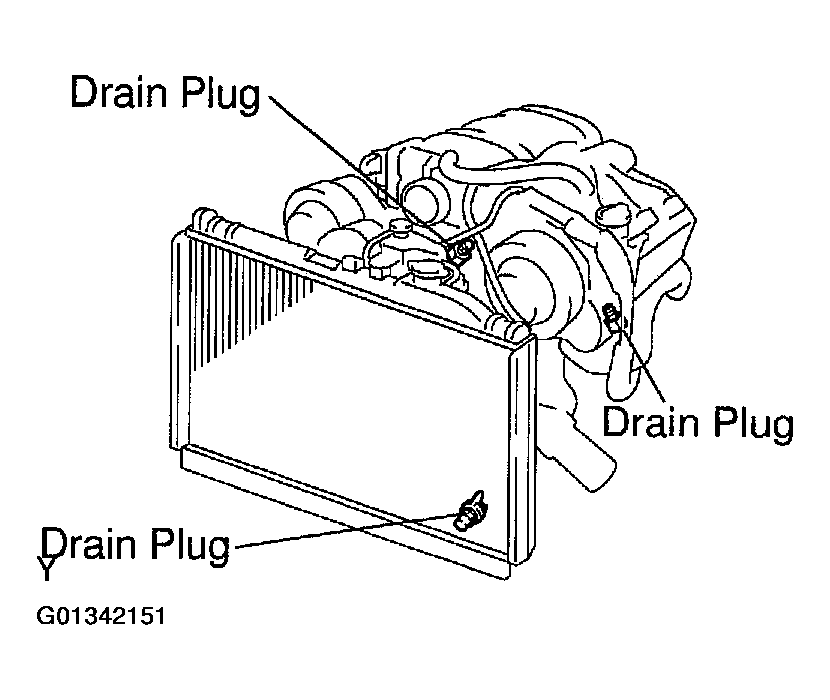

   Fig 1: Removing Drain Plugs On The Engine And Radiator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAUTION: To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator are still hot, as fluid and steam can be blown out under pressure.
2. Remove the 3 drain plugs on the engine and radiator, and drain the coolant.
3. Close the 3 drain plugs.

Torque: 12.7 N.m (130 kgf.cm, 9 ft.lbf) for engine

1. Slowly fill the system with coolant.
   • Use of improper coolants may damage engine cooling system.
   • Use "Toyota Long Life Coolant" or equivalent and mix it with plain water according to the manufacturer's directions.
   • Use of the coolant which includes more than 50% (freezing protection down to -35 °C (-31 °F)) or 60% (freezing protection down to -50 °C (-58 °F)) of Ethylene-glycol is recommended, but not more than 70%.
   NOTE:

   • Do not use an alcohol type coolant or plain water alone.
   • The coolant should be mixed with plain water (preferably demineralized water or distilled water).

   Capacity: 9.0 liters (9.5 US qts, 7.9 lmp. qts)

2. Slowly pour coolant into the radiator reservoir until it is "FULL".
3. Install the radiator cap to the radiator.
4. Bleed the cooling system.
   1. Start the engine, and open the heater water valve.
   2. Maintain the engine speed at 2,000 - 2,500 rpm, and warm up the engine.
5. Stop the engine, and wait until the engine coolant cools down.
6. Refill the radiator reservoir with coolant until it reaches the "FULL" line.
