Cd Auto Changer

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

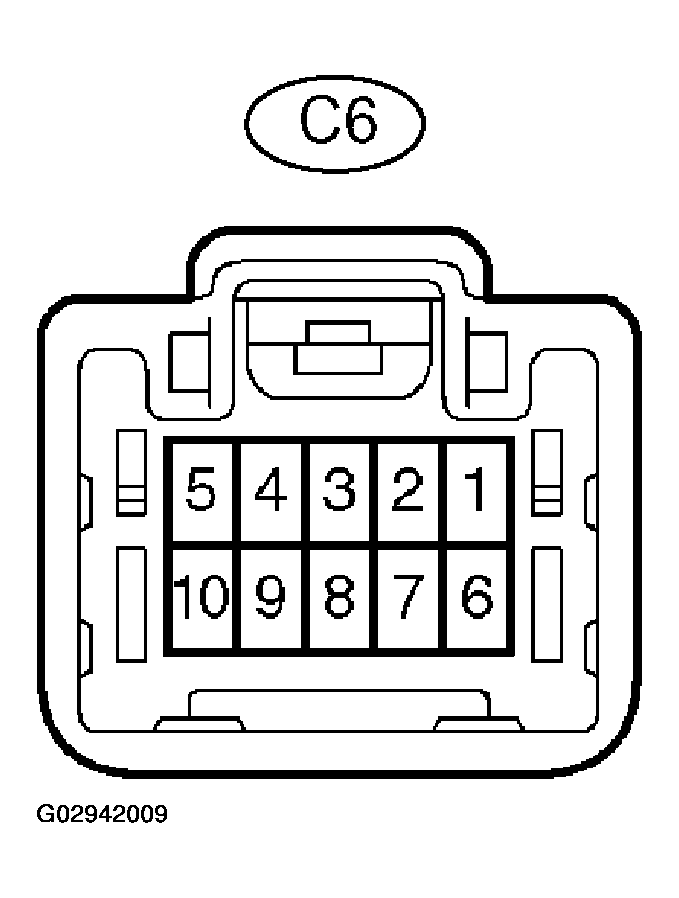

Fig 1: Identifying CD Auto Changer Terminals
G02942009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

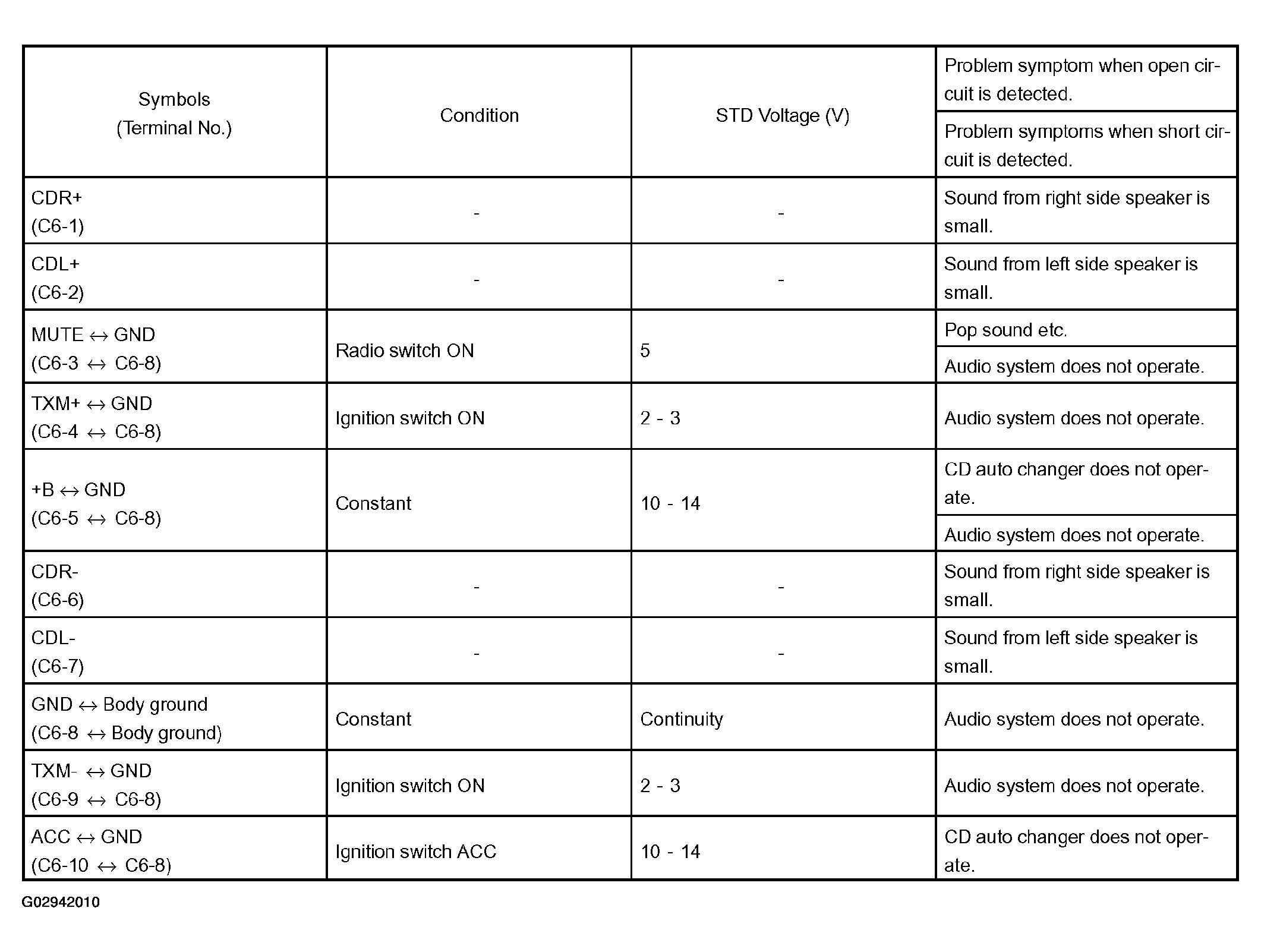

Fig 2: Terminals Reference Table (CD Auto Changer)
G02942010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
