Multi Display

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

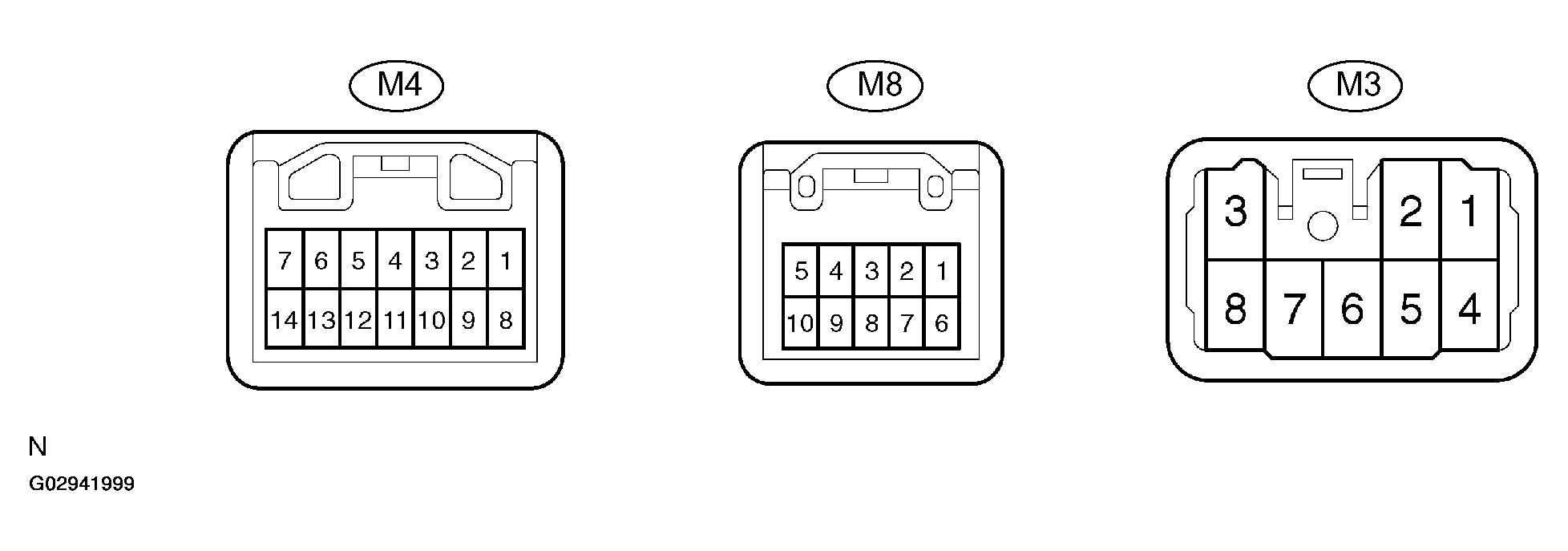

Fig 1: Identifying ECU Terminals (Multi Display)
G02941999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

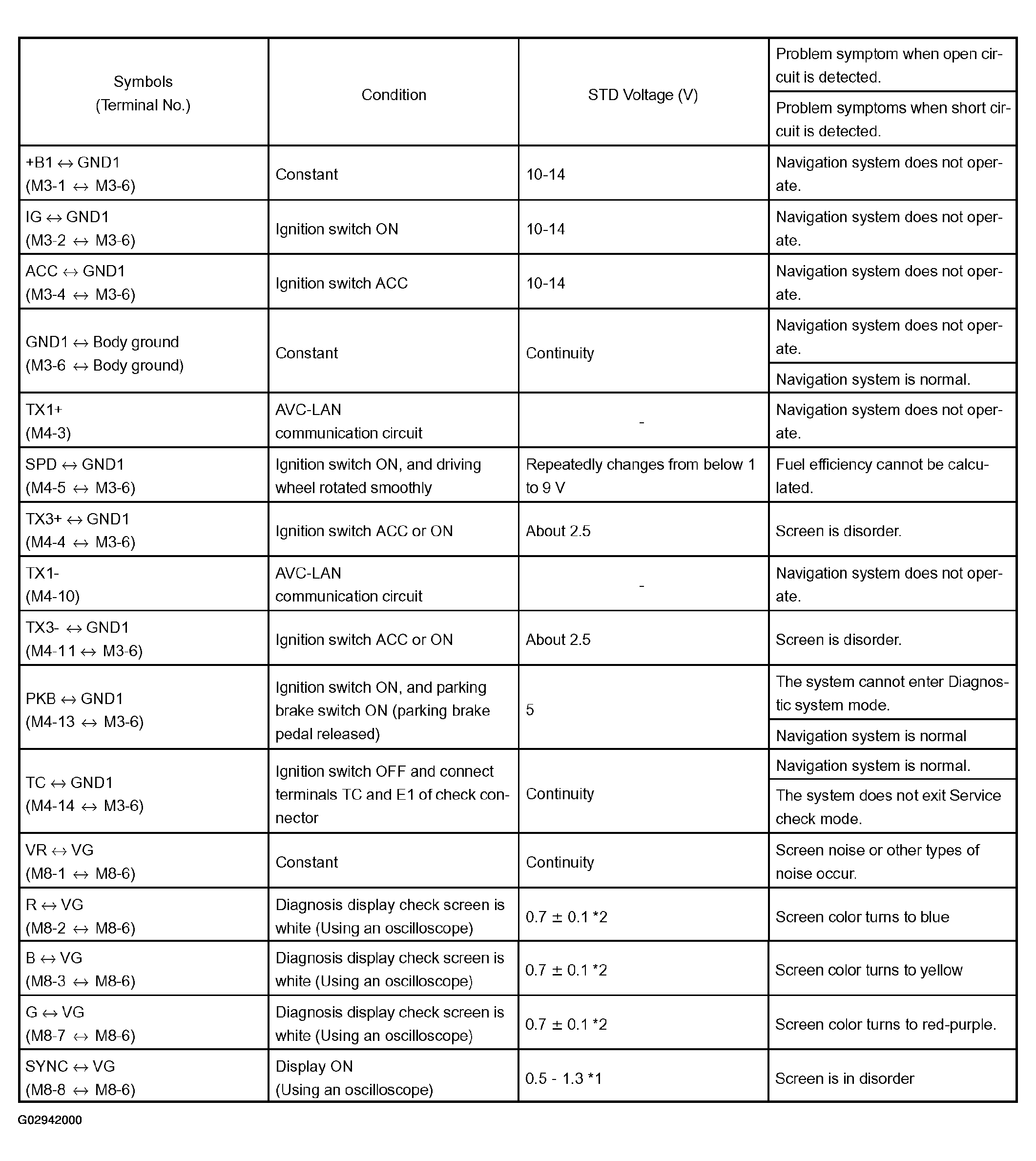

Fig 2: ECU Terminal Reference Table (Multi Display)
G02942000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
