Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE THESE PARTS:
1. No.2 register
2. Cluster finish panel (See REMOVAL )
REMOVE A/C CONTROL ASSEMBLY WITH RADIO
Remove the 4 bolts and pull out the A/C control assembly, then disconnect the connectors.

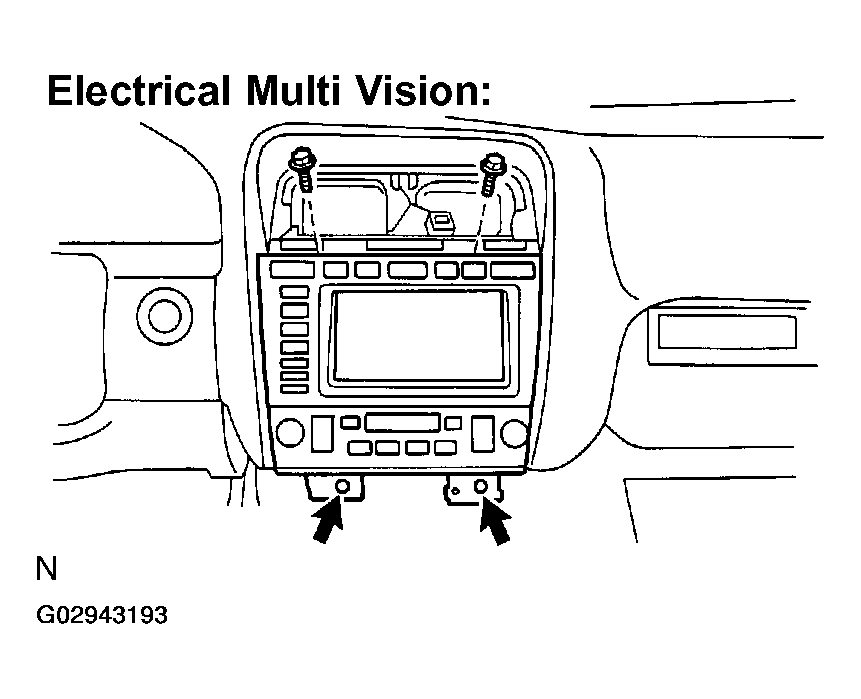

Fig 1: Removing Bolts From A/C Control Assembly - Electrical Multi Vision
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Removing Bolts From A/C Control Assembly - Except Electrical Multi Vision
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE A/C CONTROL ASSEMBLY FROM RADIO
Remove the 8 bolts, 2 screw and 2 brackets, then remove the A/C control assembly.

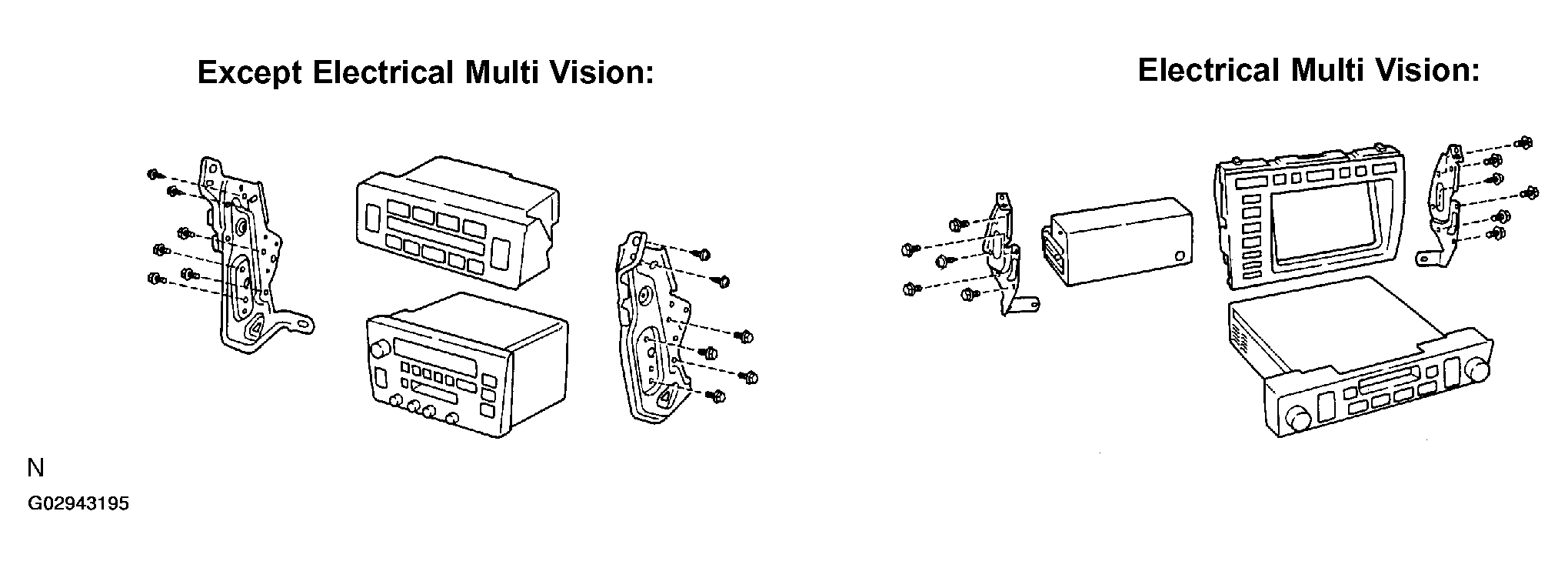

Fig 3: Removing A/C Control Assembly From Radio
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
