Section 486 (Air Conditioning): Sensor: Removal

Using a screw driver, pull out the sensor and disconnect the connector.

HINT:

• Tape the screwdriver tip before use.

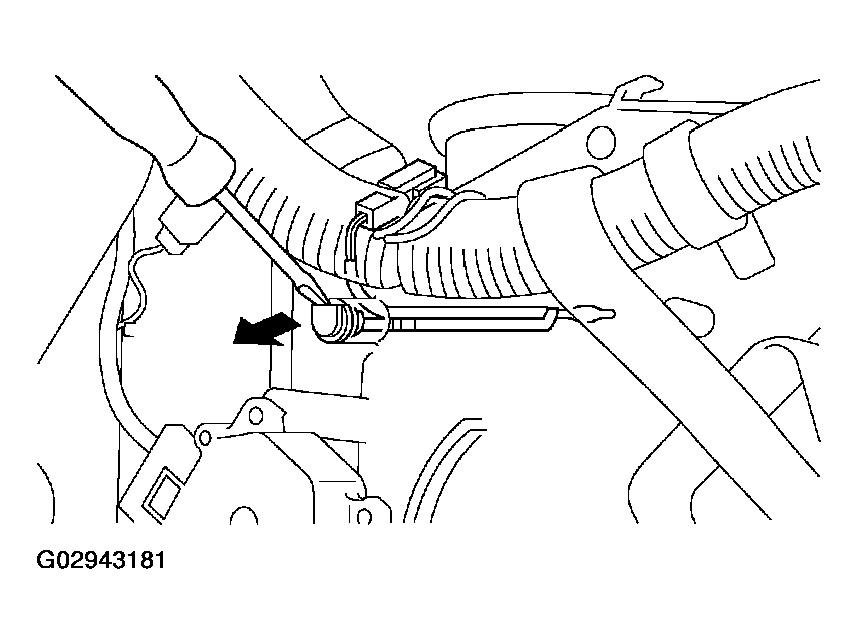

  Fig 1: Pulling Out Sensor And Disconnecting Connector Using Screw Driver

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• At the time of installation, please refer to the following item.

  Insert the sensor to instrument panel as shown in Fig 2 .

  Fig 2: Identifying Sensor

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the No. 1 under cover. (See REMOVAL )
2. Remove the room temperature sensor.
   1. Remove the No.1 safety pad set bolts and screws.
   2. Disconnect the connector and aspirator hose.
   3. Remove the screw and sensor.
      Fig 3: Removing Room Temperature Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Using a clip remover, pull out the sensor from bumper reinforcement.
   Fig 4: Pulling Out Sensor From Bumper Reinforcement Using Clip Remover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove these parts:
   1. No.1 under cover
   2. No.1 safety pad (See REMOVAL )
2. Remove the evaporator temperature sensor.
   1. Using a screwdriver, pull out the sensor with bracket plate.

      HINT:

      Tape the screwdriver tip before use.

      Fig 5: Pulling Out Sensor With Bracket Plate Using Screw Driver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Release the 2 claws and remove the sensor from bracket plate.
      Fig 6: Releasing 2 Claws And Sensor From Bracket Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the bolt and sensor.
   Fig 7: Removing Smog Ventilation Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
