Diagnostic Trouble Code Chart
If a DTC is displayed during the DTC check, check the circuit for that code listed in the table below.

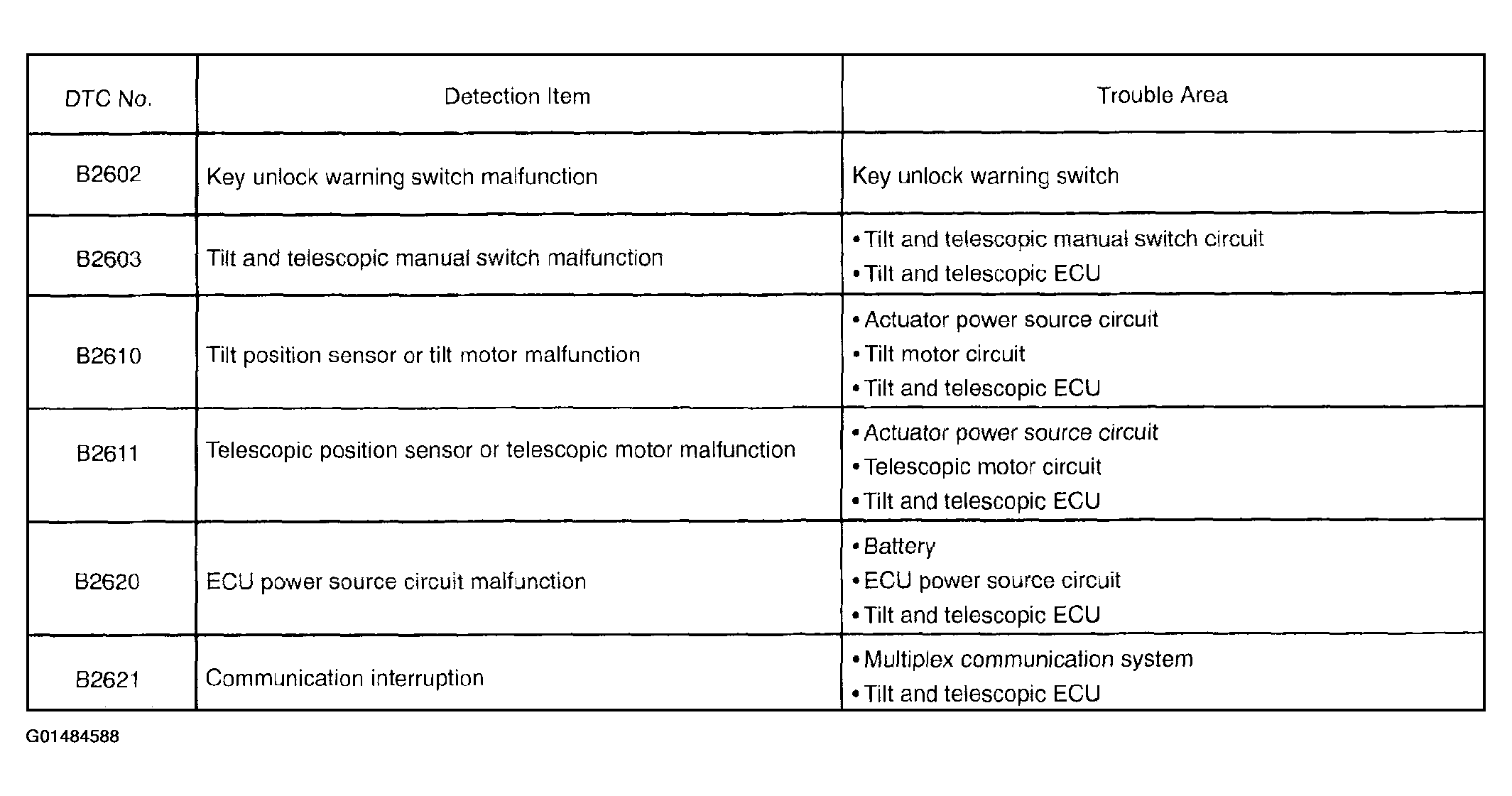

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC B2602 | Key Unlock Warning Switch Circuit Malfunction |
| DTC B2603 | Tilt and Telescopic Manual switch circuit Malfunction |
| DTC B2610 | Tilt Position Sensor or Tilt Motor Circuit Malfunction |
| DTC B2611 | Telescopic Position Sensor or Telescopic Motor Circuit Malfunction |
| DTC B2620 | ECU Power Source Circuit Malfunction |
| DTC B2621 | Communication Interruption |
