Specifications & Procedures: Specifications

Use illustration for wheel alignment specifications. See Fig 1 and Fig 2 .

Fig 1: Front & Rear Wheel Alignment Specifications (GS 300 & GS 430 - 1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

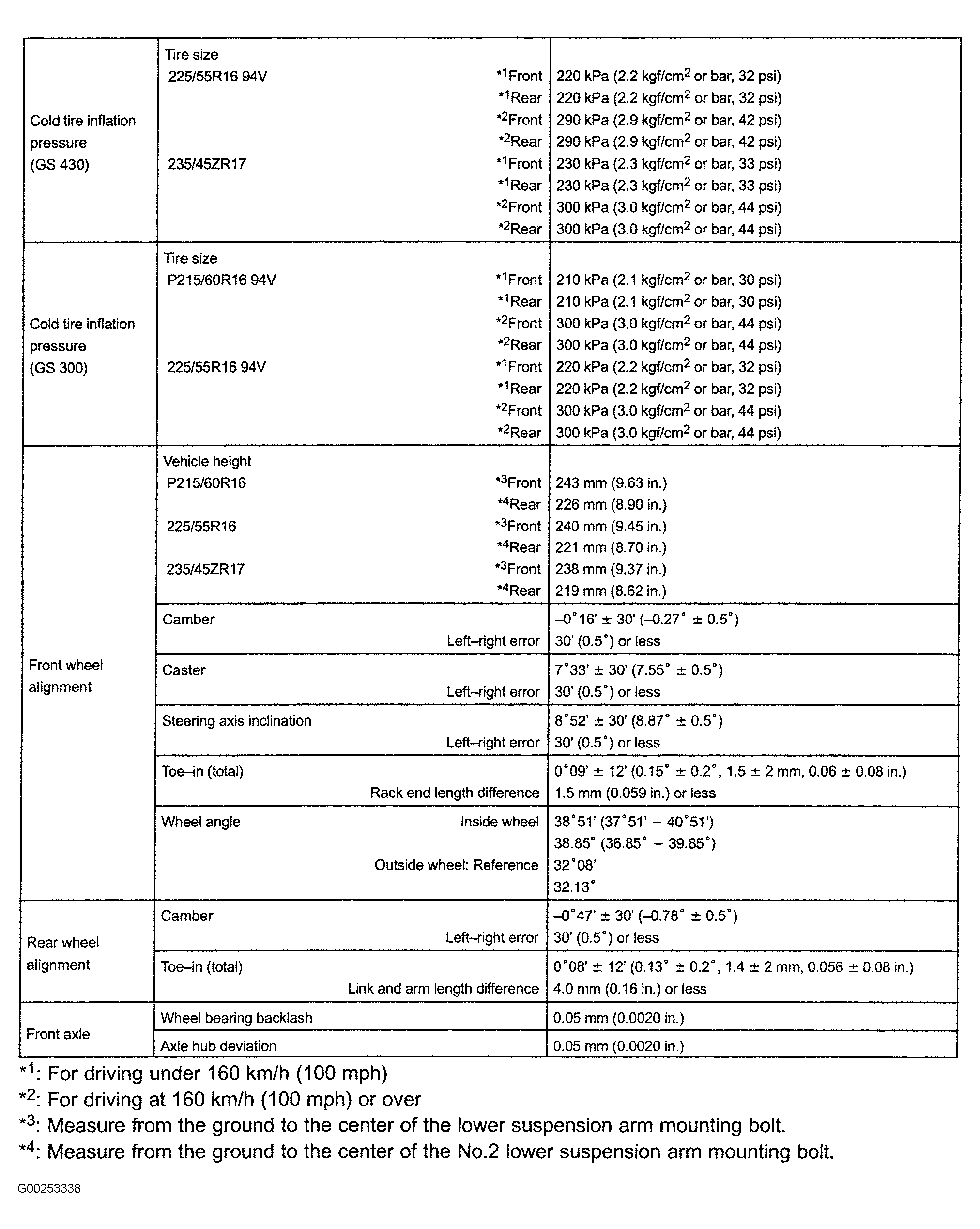

Fig 2: Front & Rear Wheel Alignment Specifications (GS 300 & GS 430 - 2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
