Repair Procedures

NOTE: This is a flow chart for vehicle pull.

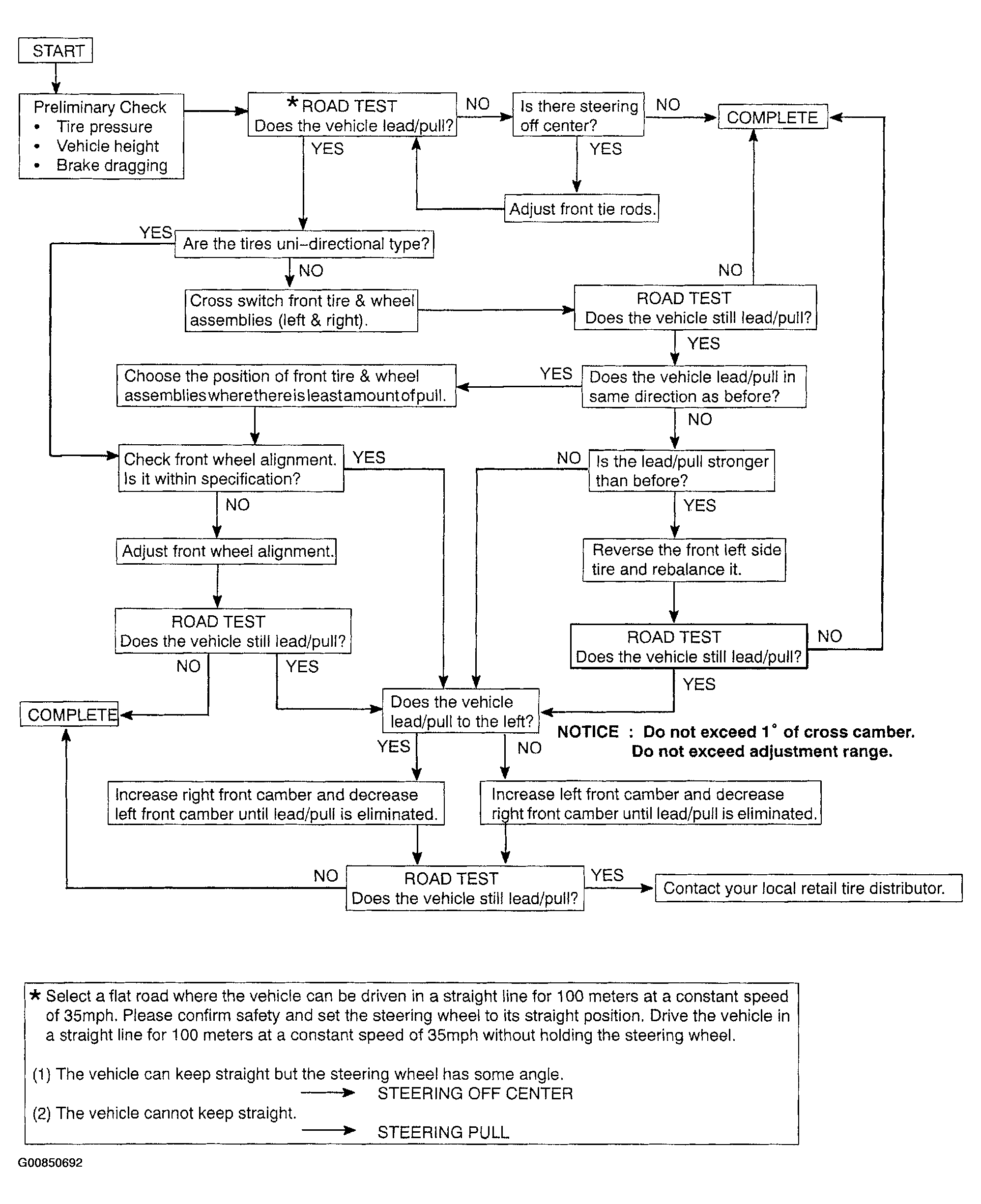

Fig 1: Repair Procedure Flow Chart
G00850692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
