Chapter 2: On-Vehicle Repair

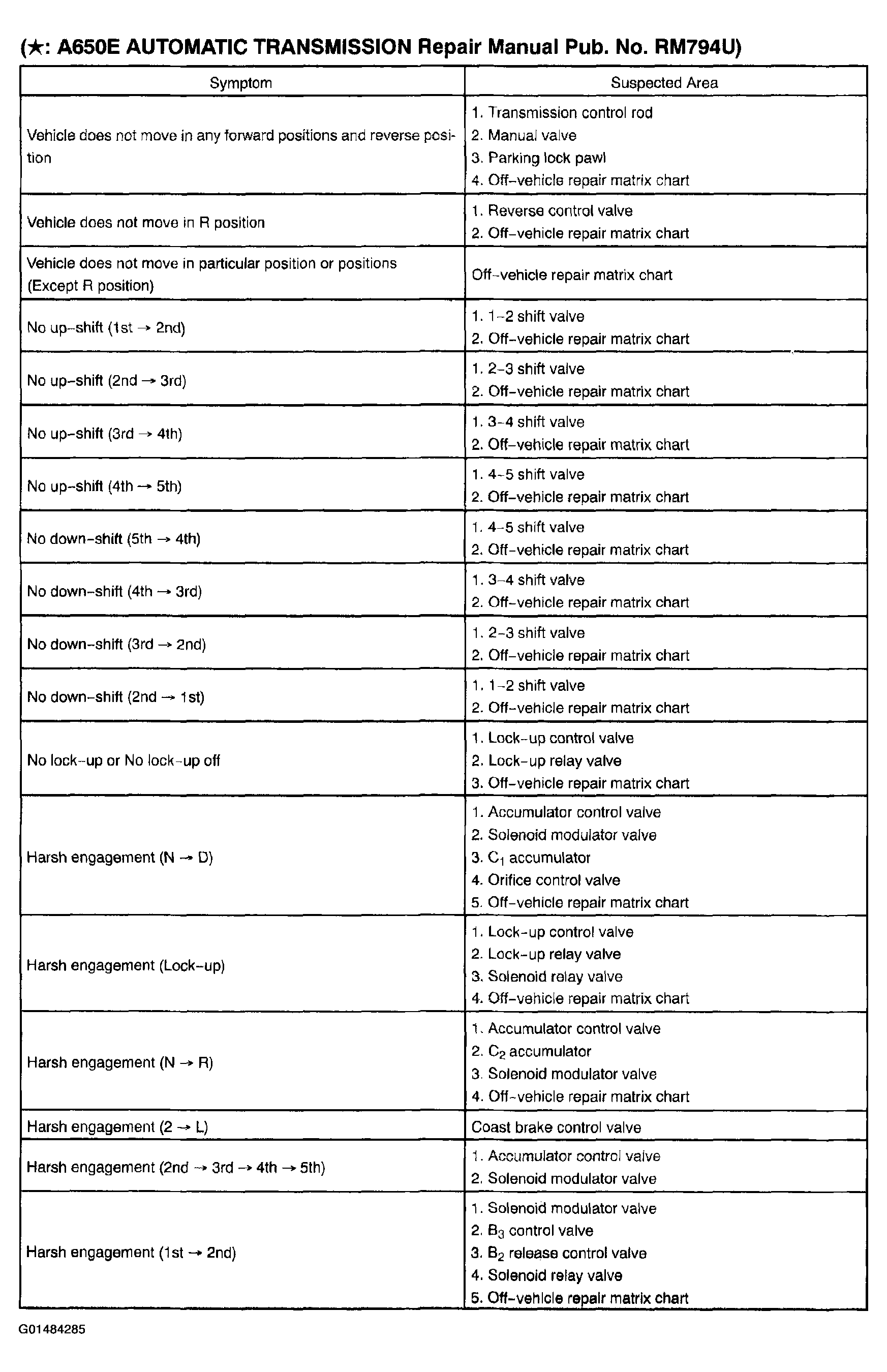

Fig 1: Chapter 2: On-Vehicle Repair (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

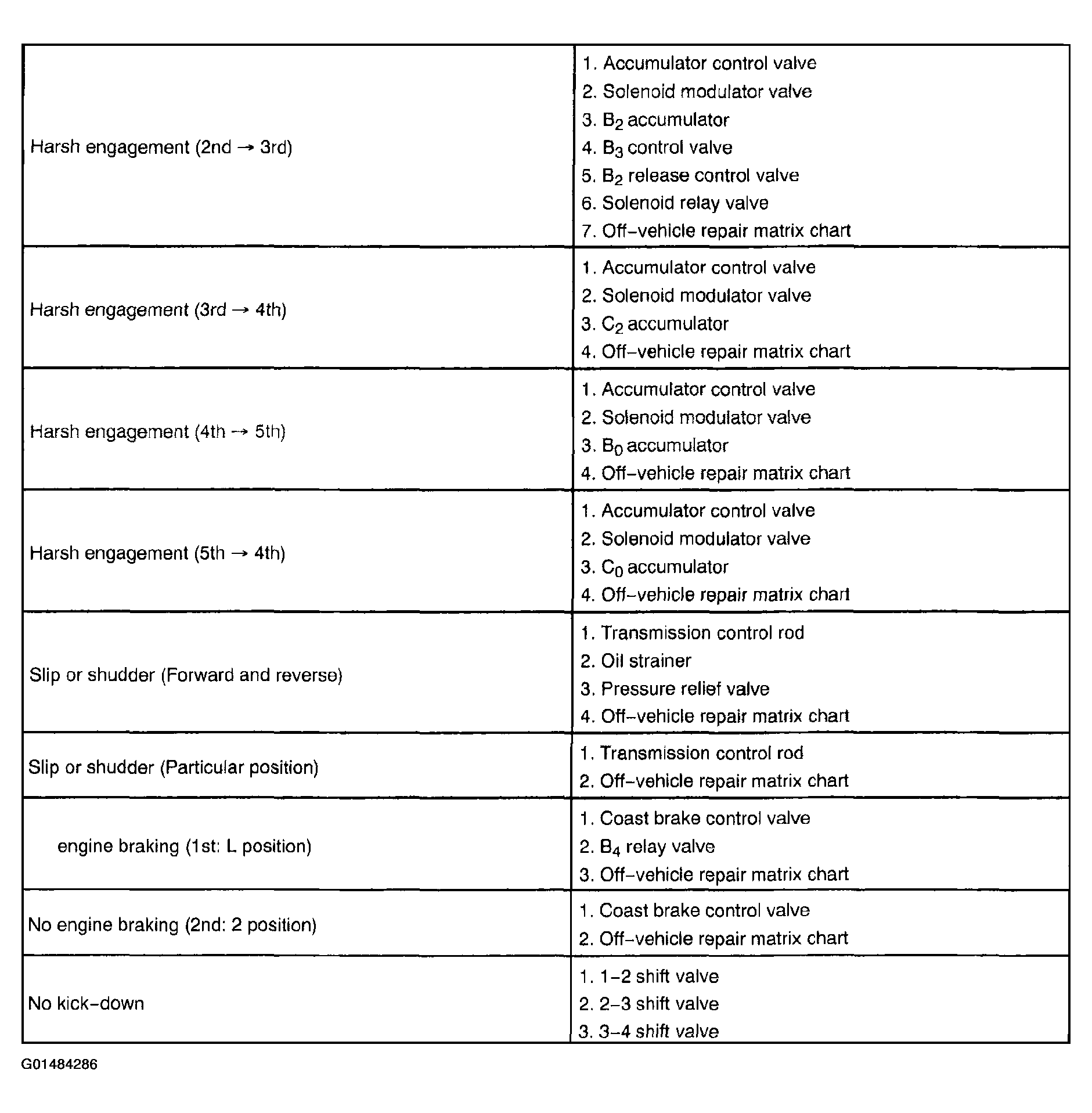

Fig 2: Chapter 2: On-Vehicle Repair (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
