Repair and Diagnosis (Single Page)
›
Body & Frame
›
Seats
›
Front Power Seat Control System
›
Front Power Seat Control System Location
Front Power Seat Control System Location

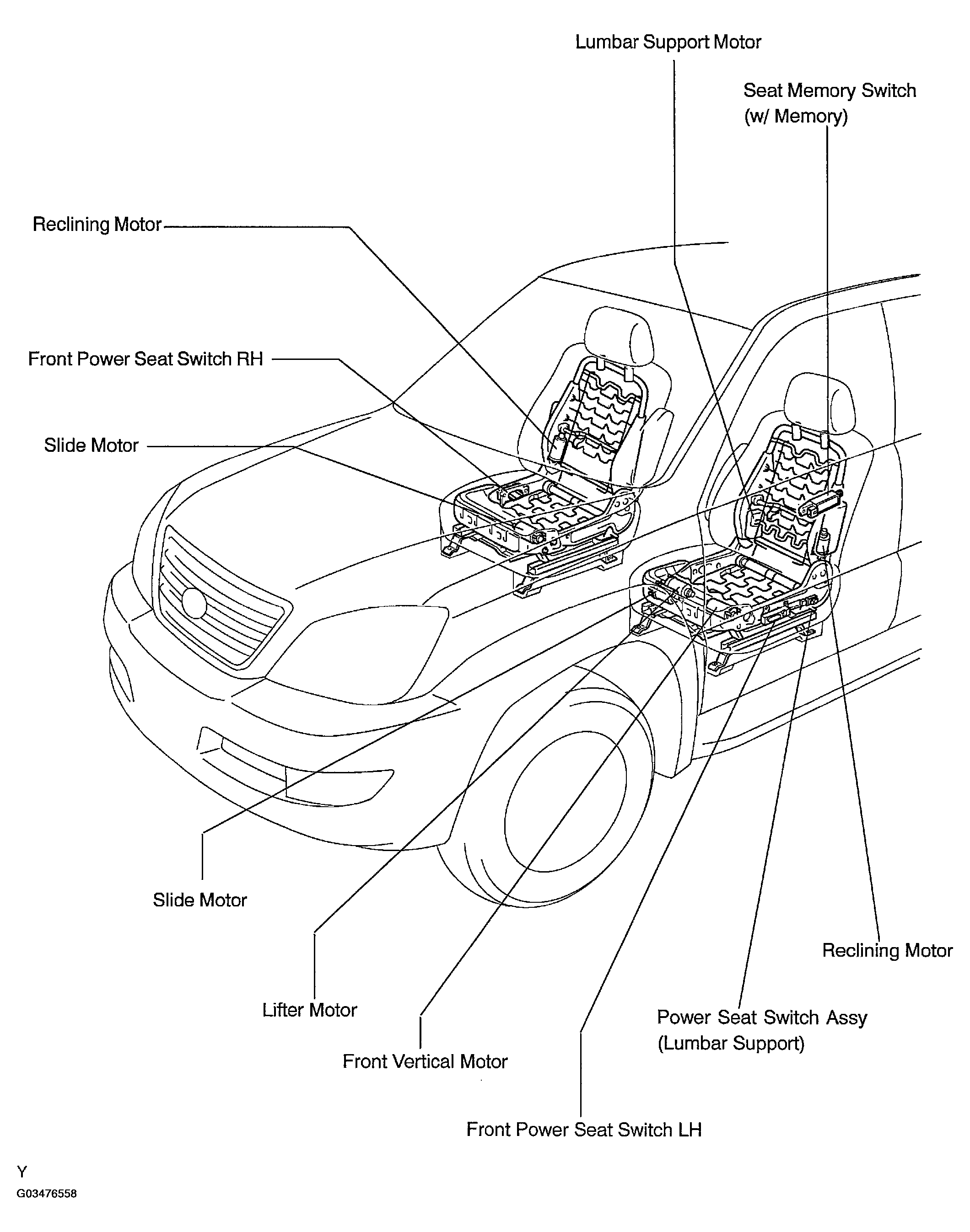

Fig 1: Identifying Front Power Seat Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
