Repair and Diagnosis (Single Page)
›
Body & Frame
›
Windows
›
Quarter Power Windows
›
Quarter Window ASSY LH Components
Quarter Window ASSY LH Components

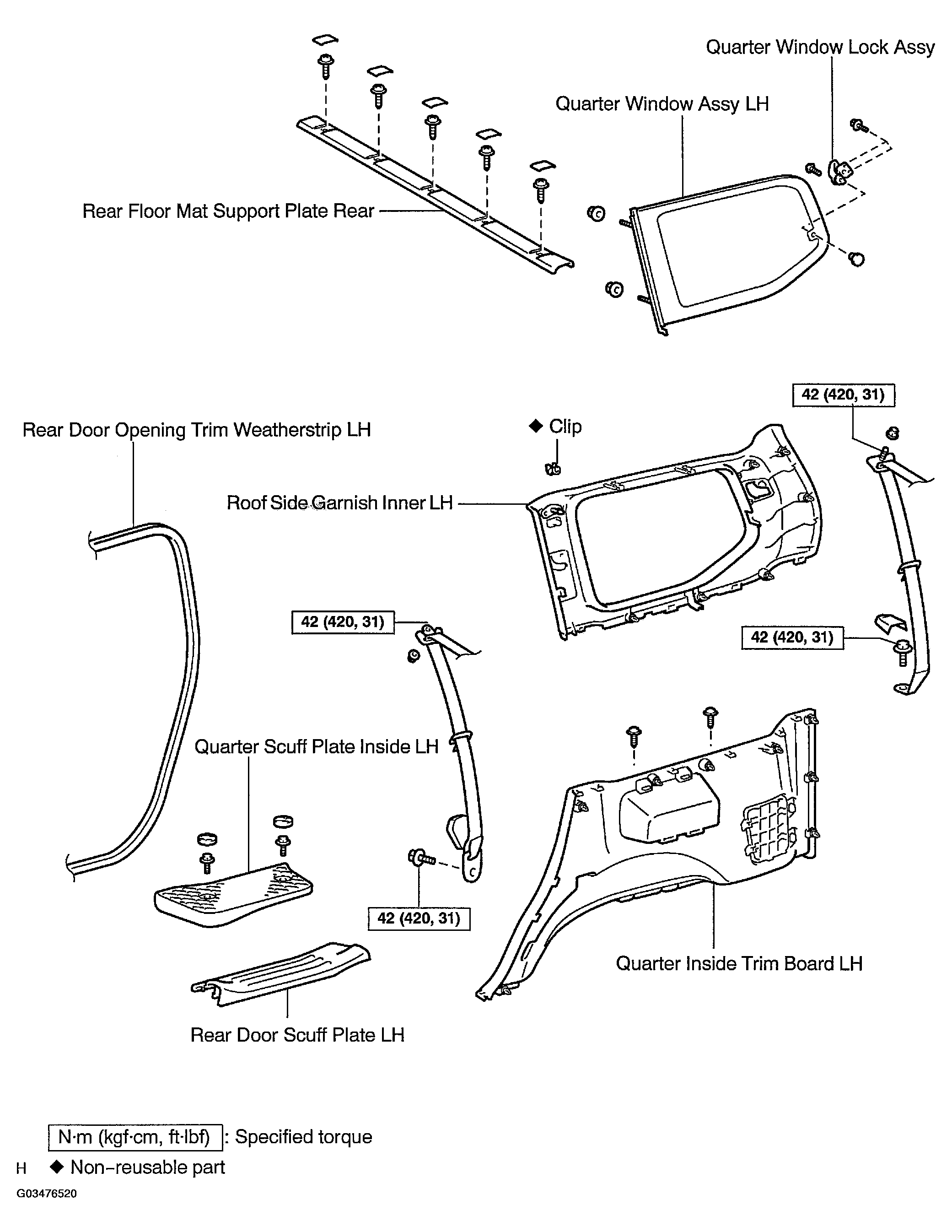

Fig 1: Identifying Quarter Window Assy LH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
