Manual Up/Down Function Does Not Operate At Rear RH: Wiring Diagram

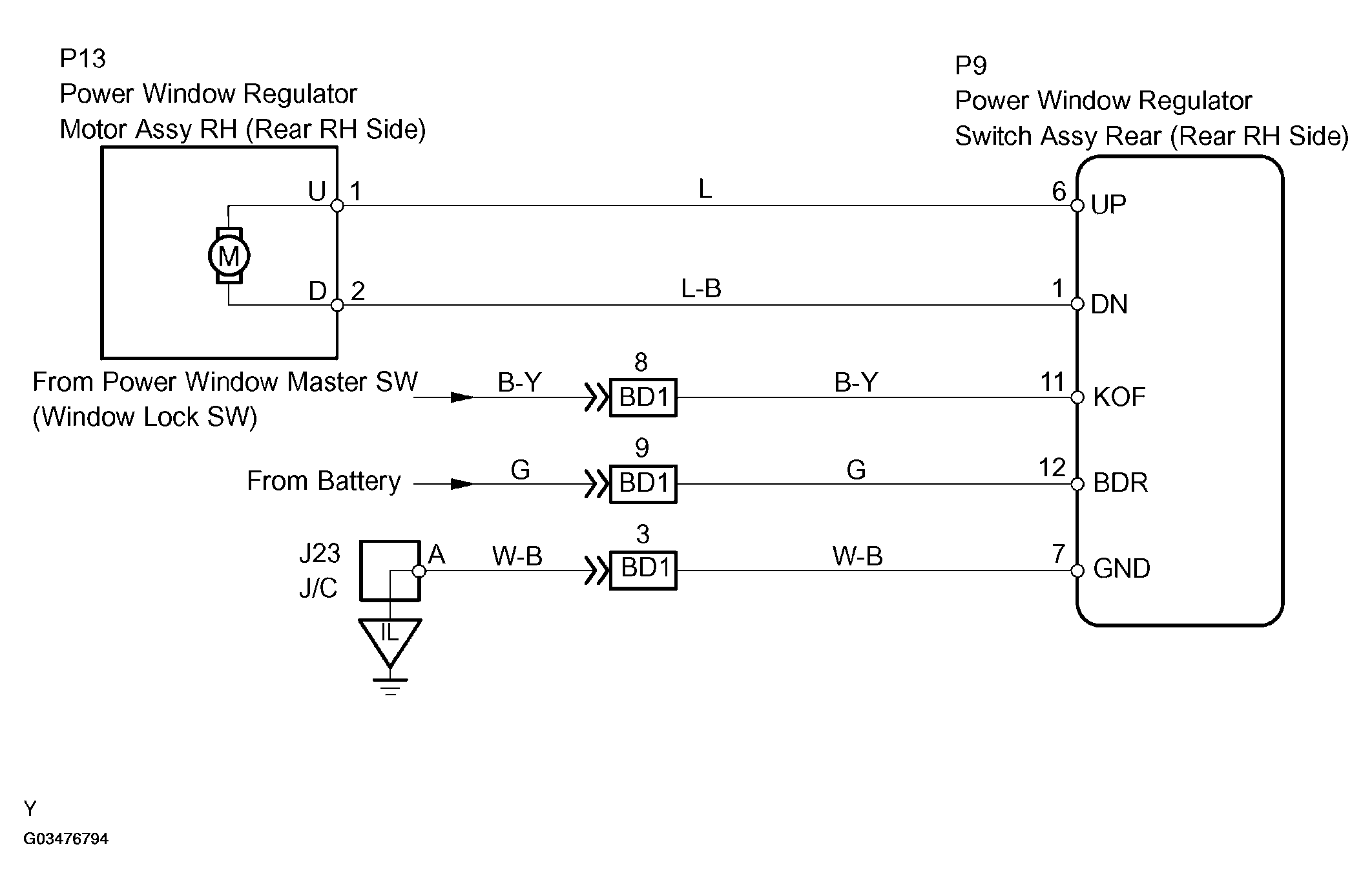

Fig 1: Identifying Manual Up/Down Function Does Not Operate At Rear RH Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
