Instrument Panel/Meter: Components

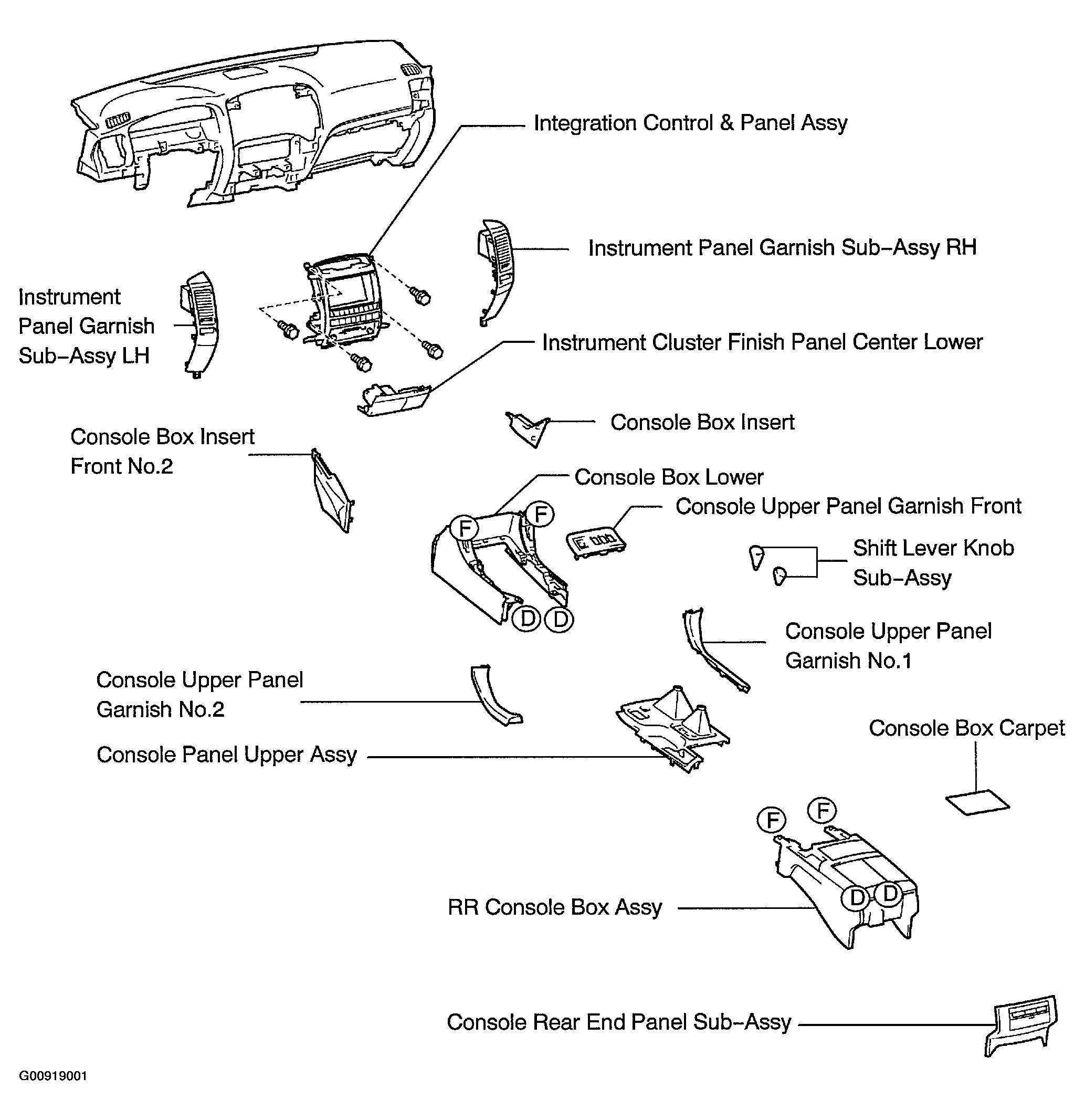

Fig 1: Identifying Components Of Instrument Panel/Meter (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

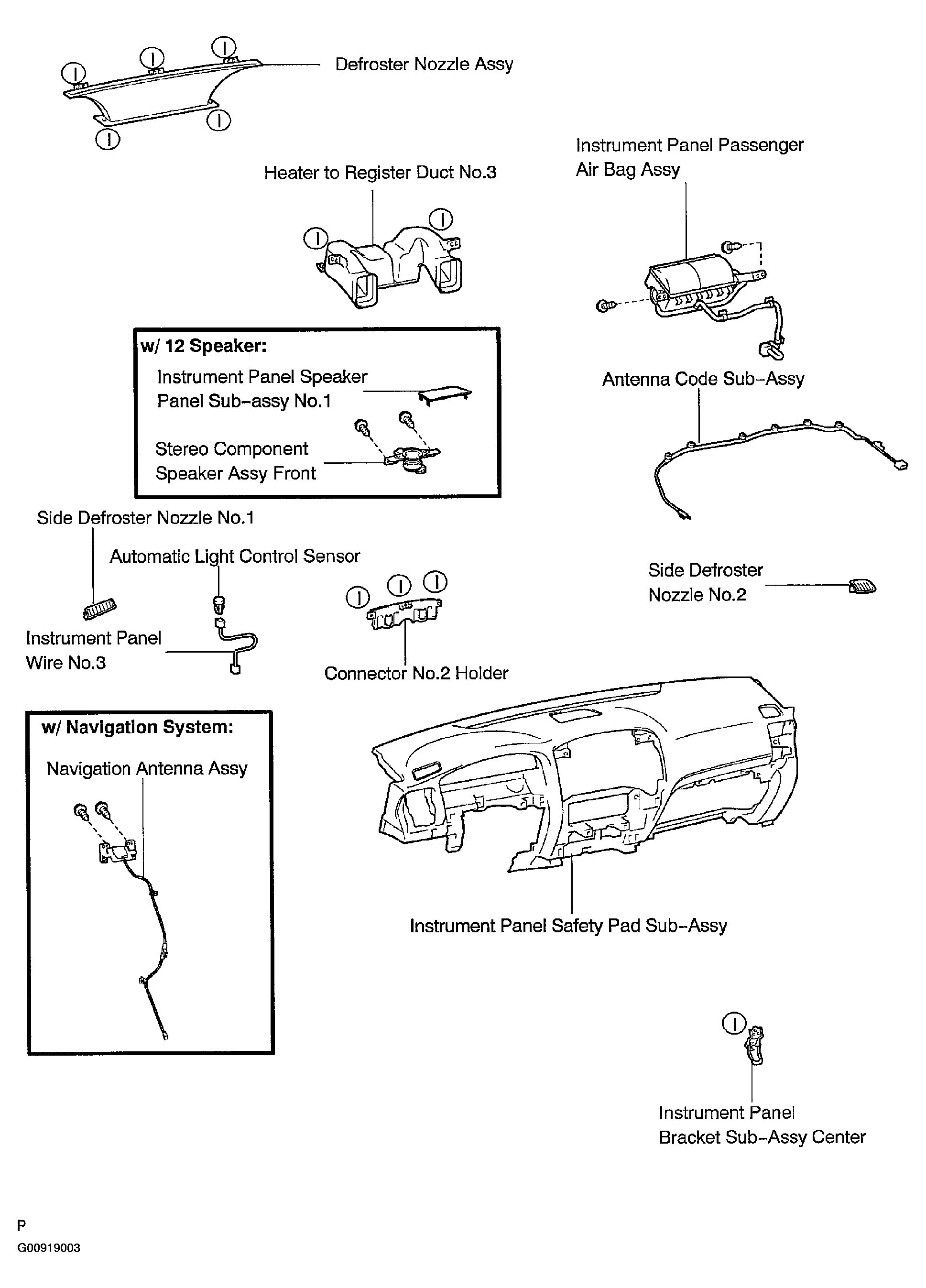

Fig 2: Identifying Components Of Instrument Panel/Meter (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

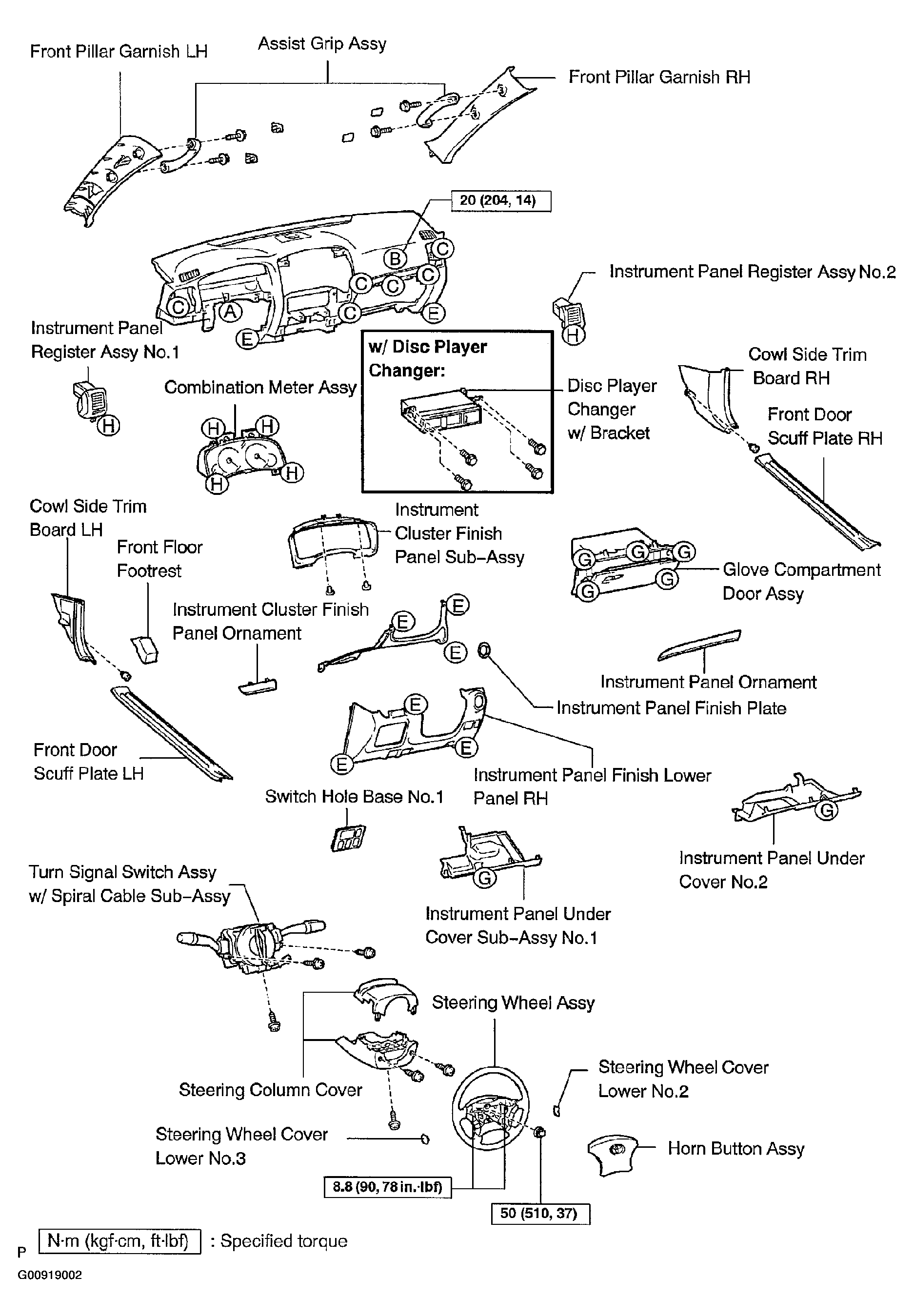

Fig 3: Identifying Components Of Instrument Panel/Meter (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
